Home > Products > Cutting Tools > CNC BT Tool Holder ER16 Collet Chuck
CNC BT Tool Holder ER16 Collet Chuck
- 50000 Piece / Pieces per Month
- Shanghai Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Sichuan, China | Brand Name: | cuttingcraft | Model Number: | ER collet chuch |
Application: | Other, er16 collet chuck, Clamping the drill bit |
Product Description

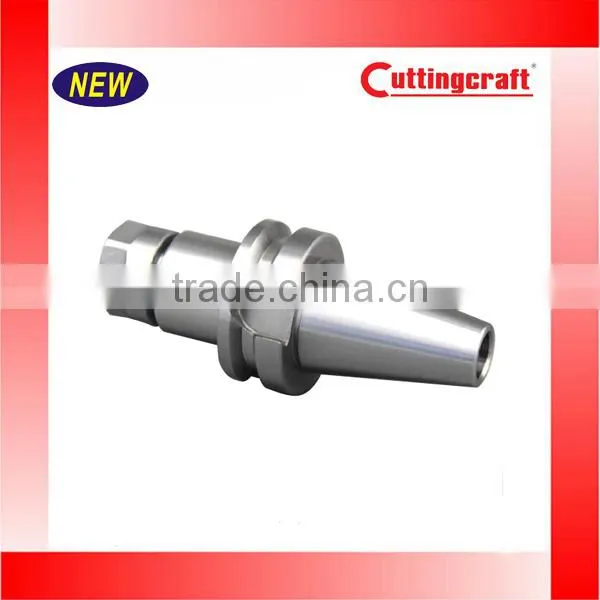

CNC BT Tool Holder ER16 Collet Chuck
CNC BT Tool Holder ER16 Collet Chuck
Taper Standard of the shank:
1. Material: Allyed case hardness steel, black-finished and precisely grinded.
2. Taper tolerence: <AT30
3. Hardness: HRC 56-58
4. Carbon depth: 0.8mm±0.2mm
5. Max run out: <0.005mm
6. Surface Roughness: Ra<0.005mm
7. The standard of shank: MAS 403 and B6339
8. Application: Used for clampling tools which straight shank in collets of DIN 6499
Model | D | D1 | L1 | Clamping Range | Wt (kg) |
BT40-ER16-70 | 32 | 44.45 | 70 | 0.5-1.0 | 1.14 |
BT50-ER16-70 | 28 | 69.85 | 70 | 0.5-1.0 | 3.64 |
CNC BT Tool Holder ER16 Collet Chuck
Package with a plastic box :
With good service:
Any questions about these kind of products ,pls do not hesitate to contact with us.
Phone No: +86-02886747080
Tel:+86-13540334826
Contact Person: Emma Chan
