Help CenterECO-SMARTZ Fully Automatic Universal Tensile Machine 1000 kN
Related Products
-
Digimatic Cold Bend Testing MachineNegotiableMOQ: 1 Unit -
Electro Hydraulic Servo Control Universal Testing Machine 1000 kNNegotiableMOQ: 1 Unit
-
Hand Operated Hydraulic Tensile Testing MachineNegotiableMOQ: 1 Unit
-
Pendulum Impact TesterNegotiableMOQ: 1 Unit
-
Servo Electronic Universal Tensile MachineNegotiableMOQ: 1 Unit
TEST REPORT SOFTWARE
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES

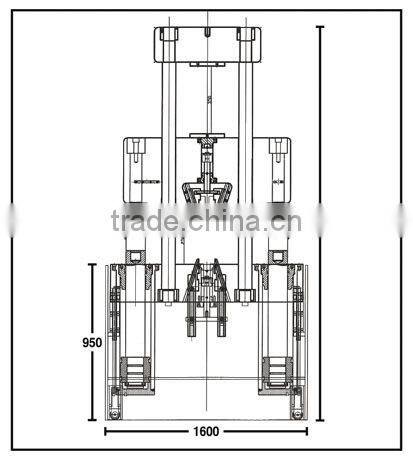

SET UP DIMENSION
950 (L) x 1600 (W) x 2230 (H) mm
A multi purpose machine with shock & noise absorption, no need to prepare special foundation. Due to its safety reliability, these machines are used in major test facilities providing uninterrupted operation.
Using all digital closed loop control system to achieve loop displacement & deformation. Able to test in any combinations & switch to other parameter smoothly.
Design & developed according to EN 10002 / EN ISO 7500-1 / ASTM A370 “Metal Tensile Test Method” with the adoption of the manual and hydraulic control micro-computer display and electronic measurement. It can automatically process the data and print the test reporting according with the national standards.
NL 6000 Series UTM use the micro-computer automatic data collection and processing, synchronous screen display of the test data and curves. It has the functions such as storing in the magnetic disk the test results, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc.
NL 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient operation and etc. It completely conforms with most of international requirements.
OPERATION DISPLAY
Computer Screen Display unit with the following functions
*Test force display
*Touch screen or keyboard operation
*Break detection
*Full auto test range switching function
*Auto return function
*Peak / Break value display function
*Test conditions
UNIQUE FEATURES
*Use 220 V power only & save up to 70% energy
*Design with shock absorbing system with free base mounting
*Low sound level pollution “SUPER SILENCE”
*Intergrated design with free installation & space saving
*Modular design with plugging connection for convenient service & maintenance
SAFETY FEATURES
The system include with the followings safety features
*Overload limiter
*Ram-stroke limiter
*Hydraulic pump motor over-current & over heating protection
*Leak / over current protection
*Automatic stop control
EXCHANGEABLE GRIPS & FIXTURES FOR VARIOUS TESTING
~ Tensile Test
*Effective clearance between grips 730 mm
*Grips for round specimen for 20 to 42 mm diameter specimens
*Grips for flat plate specimens for 0 to 20 mm specimen
~ Compression Test
*Effective clearance between compression plates 340 mm
*Diameter for the compression plates 180 mm
~ Bend Test (Optional Accessories)
*The rig should have two adjustable supports mounted on a fixed base , fitted with suitable fulcrum rollers for testing over effective span of minimum 495 mm. Should be compare with suitable punch tip, radius of punch R22 mm & punch width 120 mm.
CONTROL & DATA PROCESSING SOFTWARE
*User friendly & easily due to clear and brief operation – operation interface
*Automatically save the test conditions & results
*User define test curves including : Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
*Individual or combine display test curves on the same screen to compare with other several data at the same time
*Compatible with Microsoft Excel by import or export function
*Base of testing with digital sample break detection, auto ranging, auto calibration, tare quick & auto return facilities
*Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
*Tension, Compression, Shear, Cycling & Creep Test facilities
*User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
*Advanced protection features with software setting or / & hardware switch upper & lower limit setting
*Operation fully control by computer
*Ethernet & USB communication system
*Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
*Report sheet consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
*Test unit including : kgf, N, lbf, kfg / cm2, N/mm2, Mpa, kpa, kg, mm, %, min, sec, …etc
*User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc
Main Technical Parameters :~
| Model Number |
NL 6000 X / 012 |
| The Maximum Testing Force |
1000 kN |
| Effective Distance Between Columns |
330 mm |
Maximum Distance Between Tensile Jaws |
700 mm |
Minimum Distance Between Tensile Jaws |
370 mm |
| Compression Maximum Spacing |
340 mm |
| Round Specimen Clamping Range |
Diameter≤40 mm |
| Extended Configuration Rebar Clamping Range |
Diameter≤40 mm |
Flat Specimen Thickness Range |
Diameter≤20 mm |
Upper & Lower Platen Size |
Ø 180 / 20 min |
The Piston Moving Speed Range |
0 - 200 mm / min |
Main Frame Structure |
Oil Source, Control Systems, Force Frame Integral Structure |
Installation Method |
Capable of Absorbing Shockwave without Foundation |
Set Up Dimension |
900 (L) x 1060 (W) x 2230 (H) mm |
Packing Dimension |
950 (L) x 1200 (W) x 1900 (H) mm |
Power Supply |
220 V, 1 ph, 1 KW+5 KW |
| Approx. Weight |
2000 kg |
| Force Measurement & Control Method | Double Load Sensors, Electro-Hydraulic Servo Microcomputer Control (including Network Computers) |
Spatial Adjustment Method |
Bidirectional Adjustment Cylinder, Dual Speed Pump Source |
Cylinder Stroke |
350 mm |
| Tester Accuracy Indication |
1 % |
| Jaw Type |
Q-Type Hydraulic Jaws |
| Test Force Test Range | 1 % - 100 % FS |
| Deformation (Extensometer) Measurement Range |
1 % - 100 % FS |
| Deformation Relative Error |
±1 % / ±0.5 % |
| Deformation Resolution |
Maximum Deformation 1 / 300000 |
| Test Machine Loading Raterange | 0.02 % - 2 % FS /s |

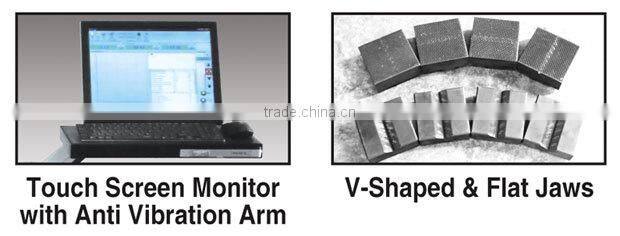

Unit Standard Accessories :~
| Model Number | Parts Description |
| NL 6000 X / 012 – P 001 |
15” Touch Screen Computer c/w MASTER SOFTWARE Hardware |
| NL 6000 X / 012 – P 002 | Flat Specimen Jaw Set (4 pcs) |
| NL 6000 X / 012 – P 003 | Round Specimen Jaw Set (4 pcs) |
| NL 6000 X / 012 – P 004 | Safety Case |
| NL 6000 X / 012 – P 005 | Jaw Remove Control Unit |

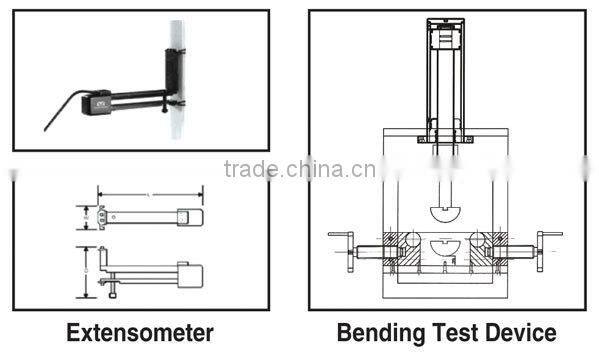

Optional Accessories :~
| Model Number | Accessories Description |
| NL 6000 X / 012 – A 001 | Bending Test Device |
| NL EST – 100 | Electronic Extensometer |
