Specifications
lab test seiving machine1high utilization screen mesh
2 non-blocking,small size
3.light weight sieve shaker
4 various sieve

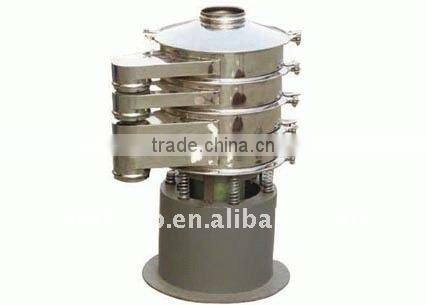

Automatic lab test sieving machine from China best quality factory
Applications:
GM / ZTS multi-layer mechanical sieve is a special high-precision fine powder sieving mechanical sieve. It is available for both dry and wet material, both the top and bottom of the motor are equipped with eccentric hammer, which can generate horizontal, vertical or tilted one-dimension movement, the operator can adjust the phase angle of the upper and lower hammer to sieve the different material.
This machine has the advantages such as high utilization of screen mesh, non-blocking, small size, light weight, full-sealed, easy to move and the outlet can be in any direction.
Technical Parameter:
Mechanical Sieve Shaker | |||
Model no. |
GM/ZTS-4 |
GM/ZTS-5 |
GM/ZTS-6 |
Diameter(mm) |
Φ400 |
Φ600 |
Φ800 |
Number of layers |
1-3 |
1-3 |
1-3 |
Diameter of effective sieve mesh(mm) |
Φ330 |
Φ550 |
Φ750 |
Specification of sieve mesh |
2-325meshes/inch(as requested) |
||
Maximum feeding size(mm) |
<20 |
<30 |
<30 |
Vibration frequency(times/min) |
1500 |
1500 |
1500 |
Power(KW) |
0.4 |
0.75 |
0.75 |
