Specifications
Sample making machine1. Applied for ores sampling,
2.Meet ISO standard, no systematic error
3.Automatic material feeding

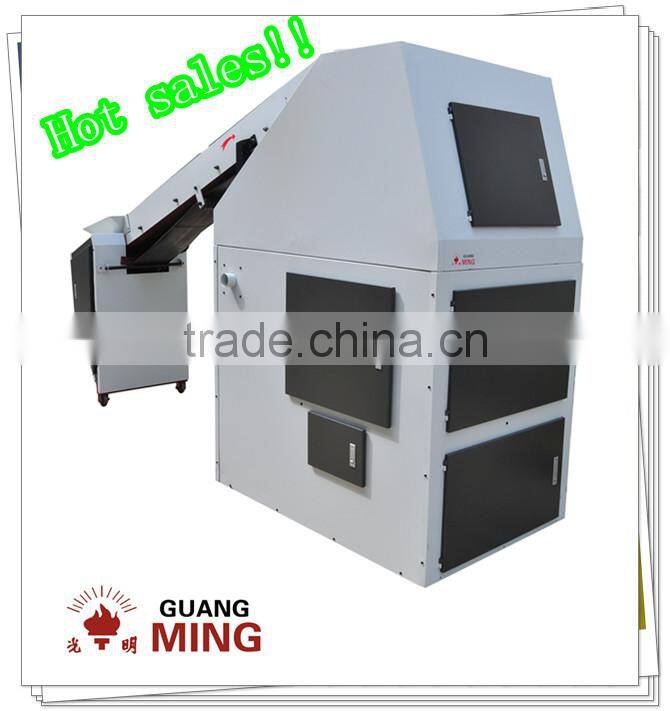

China leading ores sample preparation machine meet with ISO standard
1. Typical Application:
This system is used for sample preparation of different hardness ores or other solid material for component analysis by quick feeding, crushing, mixing and dividing continuously according to the national standard (Inspections show the samples precision of machine meets national standard without systematical difference.)
Especially Suitable For:
The unit is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
2.Advantages:
- Equipped with automatic material feeding system which makes machine running smoothly and decrease the labor intensity..
- Automatic cutter-chute division system makes sure the representation of sample.
- It is also capable for high-hardness material without blocking up.
- Even discharging size, the particle size and division ratio are adjustable.
- Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
- It can achieve whole procedures of sample preparation continuously without manual operation and also can avoid the manual operating error.
- The openable cover makes daily maintenance more convenient.
- All moving parts have the safeguards which meets the requirements of work safety.
- It can work normally on the flat ground without fixing any base.
3. Technical Parameter:
ENVIRONMENTAL MULTI-FUNCTION INTEGRATED SAMPLE PREPARATION SYSTEM | |
Model No. |
GM/EΦ-AXS |
Feeding size of primary crushing (mm) |
≤200 |
Discharging size of primary crushing (mm) |
≤20 |
Division ratio of primary crushing |
(About)1:2,1:4,1:8,1:16(Adjustable) |
Discharging size of secondary crushing (mm) |
≤1 or ≤3(Adjustable) |
Division ratio of third crushing |
(About)1:2 |
Capacity (kg/h) |
1000-2000 |
Overall dimensions (mm) |
3260X970X1800 |
Motor power(kw) |
18 |
Working power supply (V) |
380 |
Total weight (kg) |
1400 |
3. inside structure of GUANGMING sample making machine:
PRIMARY JAW CRUSHER

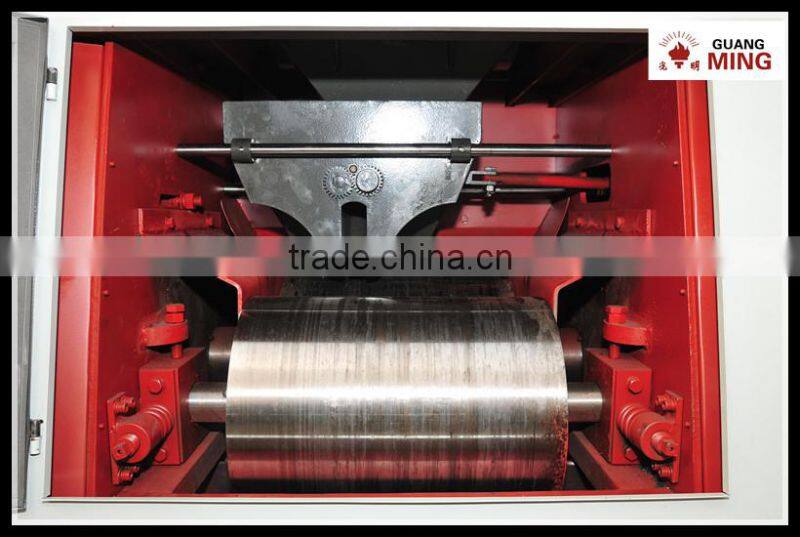

PRIMARY DIVISION AND SECONDARY ROLL CRUSHER
