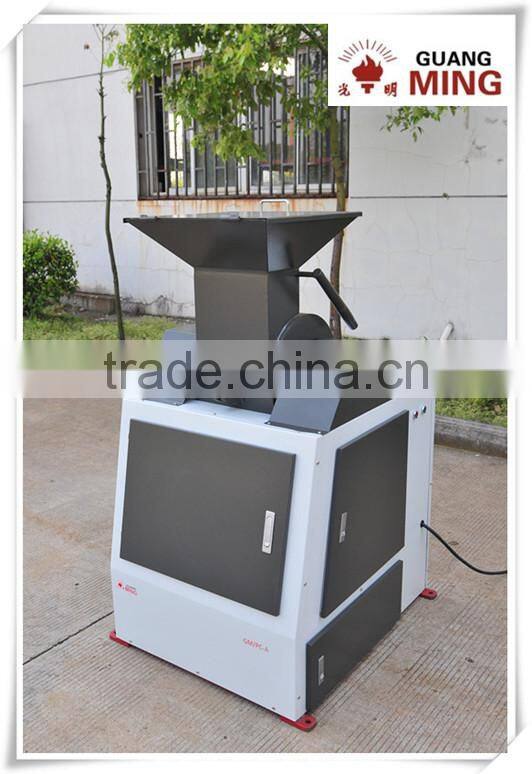

Durable hammer crushing and dividing machine for lab sample preparation

Specifications

1. Automatic crushing, mixing, dividing the material.
2. Longer service time than normal one.
3. Full sealed safety design.

Durable hammer crushing and dividing machine for lab sample preparation





Typcial applications



It is used for making the coal, coke or medium hard material samples to the size of less than 13mm, 6mm, 3mm (Adjustable) and the weight of 1/2-1/16 of feeding material for component analysis by impact crushing, mixing, dividing and cleaning continously; it is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.



Features

1. It can achieve the crushing, mixing, dividing and cleaning automatically without manual operation.

2. Automatic cutter-chute division system make sure the representativeness of the samples.

3. The main parts are made of special material which has 3-5 times longer service lift than the normal one.
4. Full-sealed design and equipped with dust extracting outlet which meets the requirements of environment protection, and the openable door makes daily maintenance more convenient.

5. It can work normally on the flat ground without fixing any base.



Technical parameter



Model No.	GM/PC-A	GM/PC-B
Feeding size(mm)	≤150	≤150
Discharging size(mm)	≤13 or ≤6 (adjustable)	≤6 or ≤3 (adjustable)
Division ratio	(About)1:2; 1:4; 1:8; 1:16(adjustable)	(About)1:2; 1:4; 1:8; 1:16(adjustable)
Handing capacity(kg/h)	800-1500	300-800
Total moisture of material	≤18%	≤18%
Motor power(kw)	4	4
Working power supply(v)	380	380
Overall dimension(mm)	920*830*1400	920*830*1400
Total weight(kg)	420	380



Our service: The hammer crusher and dividing machine has a 12 months warranty, our engineer available to service overseas.



Why choose us? For the best quality and service with reasonable price!

Packing method:



The hammer crusher and dividing machine was wrapped with waterproof plastic and put into the customized plywood case; Customer requested packing can be also satisfied.



Shipping Method:



By AIR or By SEA.(As per request)



GUANGMING specialize in lab sample preparatiion and lab sample analysis equipment more than 30 years. our products are including collector, disc mill,hammer mill, jaw crusher, roll crusher, dividing machine, vibrating sieving machine, rotary divider,sieve shaker, also integrated sample preparation system and physical properties testing series and analysis series ect. Good quality and well service together with high precision won lots of customers for us. Like SGS in domestic and abroad are using our equipment. GUANGMING warmly glad to support all of our customers with our speciality.





If you want to know more details, please feel free to contact me, thanks!
