Multi-function lab sample preparation plant small jaw crusher with divider for coal and ore crushing
- 20 Set / Sets per Month
- Shanghai ningbo
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | coal,electricity,nonferrous metal,metallurgy,chemic |
Motor Type: | DC Motor | Power(W): | 4kw | Capacity(t/h): | 500-1200kg/h |
Place of Origin: | Jiangxi, China | Brand Name: | Guangming | Model Number: | GM/EPS-A |
Dimension(L*W*H): | 790x1060x1490mm | Weight: | 600KG | Certification: | ISO9001:2008 |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

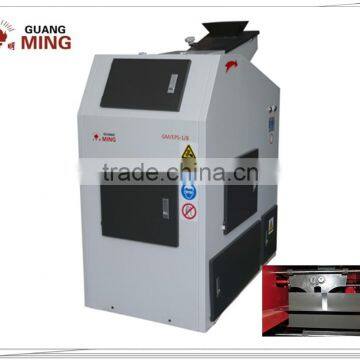

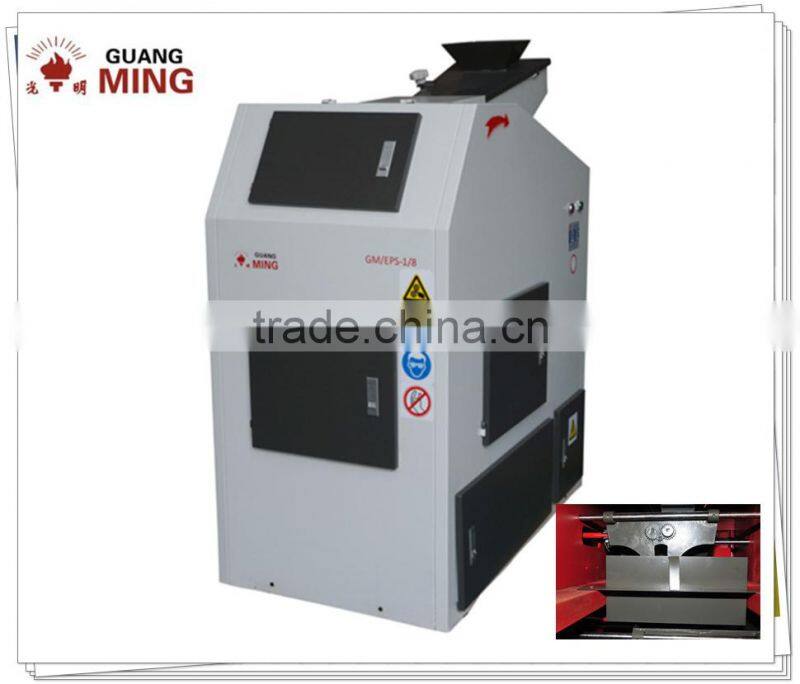

Multi-function lab sample preparation plant small jaw crusher with divider for coal and ore crushing
Typical Applications:
Jaw crusher with divider machine is used for making ≤100mm coal, coke or medium-hard material samples to the size between 6-38mm(adjustable) and the weight of 1/2-1/16 of feeding material for component analysis by sieving, crushing, mixing, dividing continuously.The machine with automatic feeding material device that decreases the labor intensity.
The multi-function jaw crusher with divider is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Advantages:
1. Automatic finish the crushing, mixing and dividing, which insure the precision of samples and avoid the manual error;
2. Automatic cutter-chute division system makes sure the representation of sample.
3. All moving parts has the safeguards which meets the requirements of work safety;
4. Full-sealed design and equipped with dust outlet which meet the requirements of environment protection. And the door makes daily maintenance more convenient;
5. It can work normally on the flat ground without fixing any base.
Technical parameter of lab sample preparation jaw crusher with divider
Model No. | GM/EPS-1/8 | GM/EPS-A | GM/EPS-AX |
Feeding size (mm) | ≤45mm | ≤100mm | ≤200mm |
Discharging size(mm) | 3-6mm (Adjustable) | 6-38mm (adjustable) | 10-40 (adjustable) |
Division ratio (adjustable) | (About)1:8 | (About)1:2,1:4,1:8,1:16(Adjustable) | (About)1:2,1:4,1:8,1:16(Adjustable) |
Handling capacity (kg/h) | 200-500 | 500-1200 | 1000-2000 |
Moisture | ≤11% | ≤11% | ≤11% |
Mesh size of shaking sieve(mm) | 13 or 6 | 13 or 6 | 13 or 6 |
Motor Power (kw) | 1.5 | 4 | 7.5 |
Dimension (mm) | 640×1150×1300 | 790x1060x1490 | 800x670x1600 |
Working power supply(v) | 380 | 380 | 380 |
Total weight(kg) | 300 | 600 | 1000 |
Automatical feeding material device |
Packaging way: jaw crusher with divider standard packaging way plywood case, which can protect machine greatly during transportation process;
Shipping way: we have long-term cooperated shipping agent, sea shipping, air shipping and DHL shipping way are ok as customer's requirement.
Our services:
*Timely reply for your any questions;
*Flexible lead time and shipping way;
*Customized laboratory equipment is available;
*Superior scheme to solve your laboratory sample preparation problem;
1. What's the lab sample preparation jaw crusher with divder warranty time:
=>One year except easy wearing parts.
2.What's the jaw crusher with divider easy wearing parts?
=>We usually suggest customer to reserve 1set jaw plates for spare.
3. How to realize different power supply requirement from customers?
=> The machine power supply is 380V, 50Hz, 3phase, if customer's requirement is different from the standard, customized motor will satisfies customers.
4. How long is the lead time?
=>It is flexible, normally 15-30days, 1-2days is also available when we have stock;
Guangming is a leading laboratory sample preparation manufacturer in China, and has been specializing in the industry for more than 30year, laboratory jaw crusher,hammer mill, roll crusher, grinder, sieve shaker, sample divider, calorimeter, sulphur tester are the main products, and jaw crushers have CE certificate.
Guangming implements ISO9001:2008 quality management system, the quality persons will enusre every machine's quality before shipping.
Guangming units professional R&D team and technician, and insists on independent innovation. most of our products have our own intellectual-property right. Our general manger is a technical member of national standard technical committee, we also participated in national standards establishment.
Depending on professional technical and quality assurance service, Guangming's products share about 56% Chinese, and also spread over like The Netherland, France, Canada, Mexico, Chile, South Africa, Korea, Singapore......, and receive good feedback from customers.
Warmly welcome to contact us for inquiry of jaw crusher with divider!
