Specifications
Vibration screen1. screen for sintering and pellet
2. high working efficiency
3. Simple operation
4. Meet ISO standards

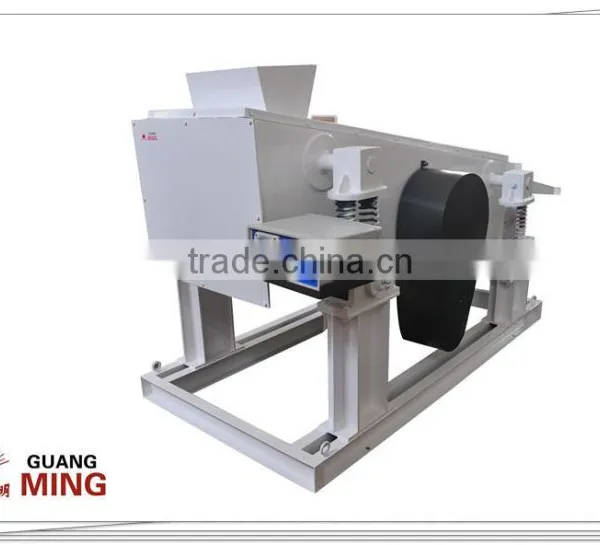

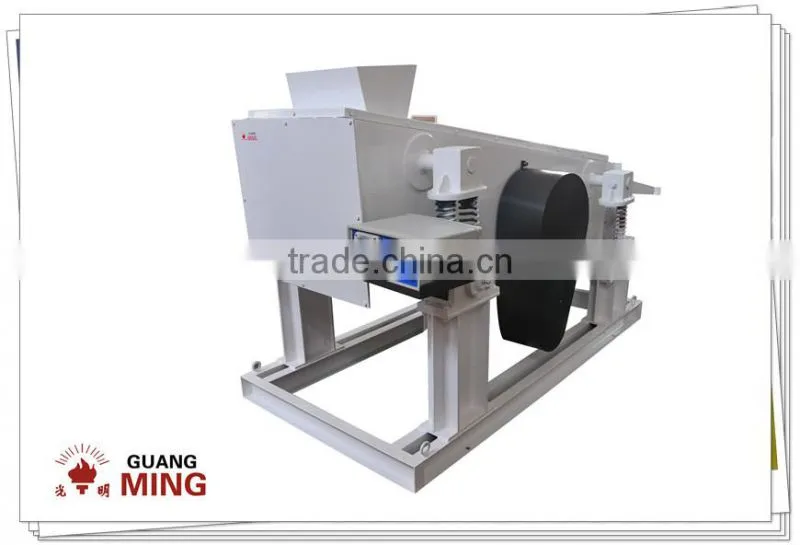

Sintering and Pellet Machine First and Second Vibrating Screen
Principle:
Designed and manufactured in accordance with GB8209-87, it can replace manual operation which decrease labor intensity and improve working efficiency greatly, equipped with automatic time controlling device, the time can be set as requested, it is one of excellent necessary equipments for testing sinters and pellets.
Technical parameter:
GM/SG-1 First Vibrating Screen before Drum for Sinters and Pellets | |||
Screens layers |
2 layers |
Hole size of screen |
40*40mm 25*25mm |
Size of screen |
1600*500mm |
Angle of screen |
12 |
Amplitude of vibration |
3mm |
Motor power |
1.5kw |
Power supply |
380V |
Total weight |
650kg |
Dimension |
2200*1300*1500mm |
||
Control |
Automatic controlled by mechanical screen according to the time needed. |
||
GM/SG-2 Second Vibrating Screen before Drum for Sinters and Pellets | |||
Screens layers |
2 layers |
Hole size of screen |
16*16mm 10*10mm |
Size of screen |
1600*500mm |
Angle of screen |
10 degree |
Amplitude of vibration |
2mm |
Motor power |
1.5kw |
Power supply |
380V |
Total weight |
650kg |
Dimension |
2200*1300*1500mm |
||
Control |
Automatic controlled by mechanical screen according to the time needed |
||
