4.5T 8 Folds Post Design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds Post Design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter thumbnail-1
4.5T 8 Folds Post Design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter photo-1
US$ 900 - 1,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Contact Supplier Request Quote Chat Now
Beijing J&F Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Design Two Post
Type Double Cylinder Hydraulic Lift
Certification CE
Lifting Capacity 4500Kg
Lifting Height(mm) 1875mm
Overall Width(mm) 3650mm
Place of Origin Beijing, China
Brand Name J&F
Model Number L-2C-45C

Specifications

1.Lifting Capcity:4.5T
2.Lifting Height:1875mm
3.CE Approved

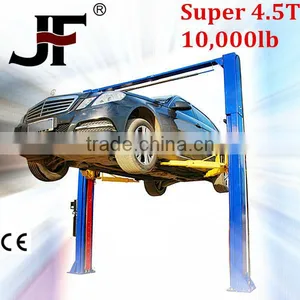

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

L-2C-45C is a car lifter. The perfect choice for those customers who demand the most lifting

capacity at the lowest possitble price. J&F Lifts are designed with the features you need to concern,  no matter

what type of shop you have.

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter



4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter



car lifter L-2C-45C

Double Lock Release, Chain Drive Design System

Double S Manganese Steel Column

Lifting Capacity

4.5T(10000lb)

Max. Lifting Height

2000mm( 6.6'/78.7" )

Rise Time

<50s

Power of Motor

2.2Kw

Total Height

3620mm(11.9'/142.5")

Width between Pillars

2865mm(9.4'/113")

Power Supply

3PH/380V

Standard Accessories

Stackable Pads

4 pcs

Short Truck Adapter(33mm)

4 pcs

Long Truck Adapter(127mm)

4 pcs

Optional Accessories

3-Stage Arms

2 pcs

2-Stage Screw Pads

4 pcs

3-Stage Screw Pads

4 pcs screw pads 4pcs extensions



 4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

· Column design incorporates special Double S bends to increase column strength.

· Padded Carriages

· Columns can be installed Asymmetrically OR Symmetrically

· Professional grade arm lock restraint system

· Higher quality powder coating

· Double point lock release

· Stackable pads adapter with truck adapter kit included

· 3 stage front arms and 2 stage rear arms offer more options

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter



car lifter Unit Package

Steel Frame A(Posts Lower Stage)

1 pc

2700*500*750mm

Steel Frame B(Posts Upper Stage)

1 pc

900*500*750mm

Carton (Power Unit)

1 pc

800*250*300mm

Gross Weight

620kg





4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

J&F 2 post car lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high rise lifts are warranted

for five (5) years on structural components and one & a half (1.5) year on electric or air / hydraulic power units

and cylinders effective from date of invoice.



4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

4.5T 8 Folds post design, Double Cylinder Drive Design,Double Lock Release System Clear Floor Car Lifter

Why should I choose J&F Lift?



There are several reasons you should strongly consider purchasing a J&F Lift:

-Top raw materials from only the finest plants
-Only professional cost-effective equipment Low prices with high quality revenue producing products
-Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
-The best customer service: Quick reply within 24 hours and more Great Warranty.
