Floor Plate Two Post Car Lift

Floor Plate Two Post Car Lift thumbnail-1
Floor Plate Two Post Car Lift photo-1
US$ 900 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Contact Supplier Request Quote Chat Now
Beijing J&F Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Design Two Post
Type Double Cylinder Hydraulic Lift
Certification CE
Lifting Capacity 4500Kg
Lifting Height(mm) 2000mm
Overall Width(mm) 3450mm
Place of Origin Beijing, China
Brand Name J&F
Model Number L-2-45S
Warranty 5 Years

Specifications

1. Double S Columns
2. Lifting Capacity: 4.5T
3. Lifting Height: 2000mm
4. Double Lock Dual Cylinder
5. CE Approved



Product Description



L-2-45S is the perfect choice for those customers who demand the Floor Plate Two Post Car Lift most lifting capacity at the lowest possible price. J&F Lifts are designed with the features you need to be productive, no matter what type of shop you have.

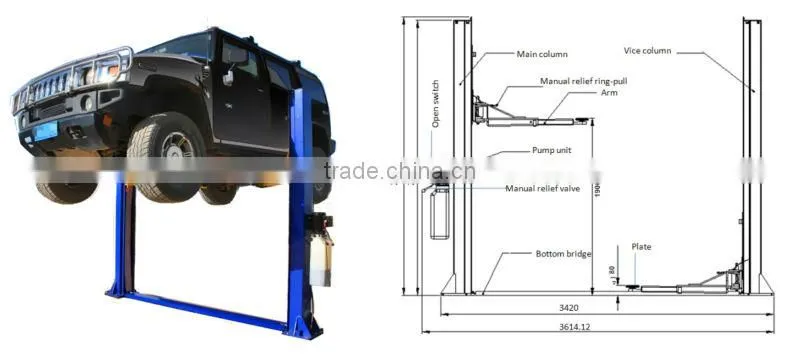

Floor Plate Two Post Car Lift



L-2-45S   Floor Plate Two Post Car Lift

Signle Lock Release, Chain Drive Design System

Double S Manganese Steel Column

Lifting Capacity

4.5T(10000lb)

Max. Lifting Height

2000mm( 6.6'/78.7" )

Rise Time

<50s

Power of Motor

2.2Kw

Total Height

2825mm(9'/142.5")

Width between Pillars

2560mm(8'/113")

Power Supply

3PH/380V

Standard Accessories

Stackable Pads

4 pcs

Short Truck Adapter(33mm)

4 pcs

Long Truck Adapter(127mm)

4 pcs

Optional Accessories

3-Stage Arms

2 pcs

2-Stage Screw Pads

4 pcs

3-Stage Screw Pads

4 pcs screw pads 4pcs extensions



Features:

· Column design incorporates special Double S bends to increase column strength.

· Padded Carriages

· Columns can be installed Asymmetrically OR Symmetrically

· Professional grade arm lock restraint system

· Higher quality powder coating

· Single point lock release

· Stackable pads adapter with truck adapter kit included

· 3 stage front arms and 2 stage rear arms offer more options

Floor Plate Two Post Car Lift




Packaging & Shipping



Floor Plate Two Post Car Lift Package

Steel Frame A(Posts Lower Stage)

1 pc

2820*520*860mm

Carton (Power Unit)

1 pc

840*290*340mm

Gross Weight

570kg





Floor Plate Two Post Car Lift






Company Information


Floor Plate Two Post Car Lift

Floor Plate Two Post Car Lift



Our Warranty & Services




Floor Plate Two Post Car Lift



J&F 2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high rise lifts are warranted for five (5) years

on structural components and one & a half (1.5) year on electric or air / hydraulic power units and cylinders effective

from date of invoice.







FAQ

1. Why should I choose J&F Lift?
There are several reasons you should strongly consider purchasing a J&F Lift:
Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty

2. How safe are your lifts?
Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American and Australian Standard.

3. Shoul I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.

4. What type of fluid is required for my lift?
We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required.

5. Are J&F Lifts designed for commercial use?
All of our lifts can be used in commercial applications without any problems.

6. Do you offer any custom designs?
Yes,J&F Lift provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
