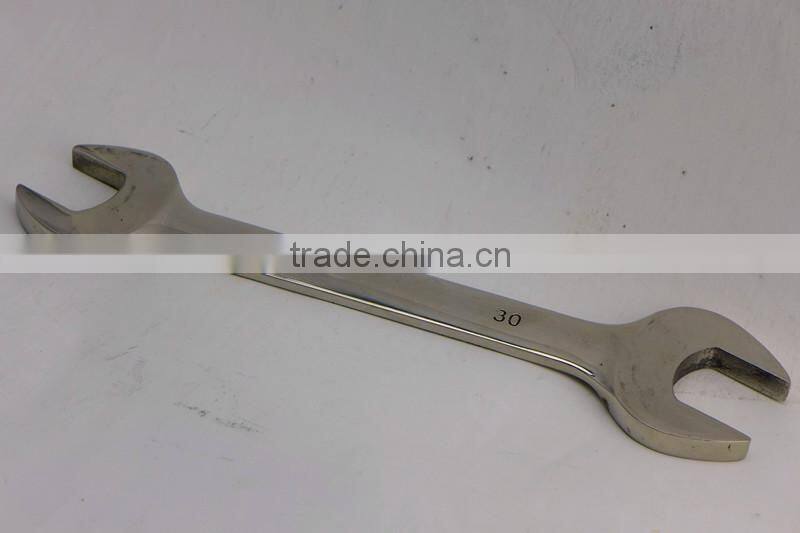

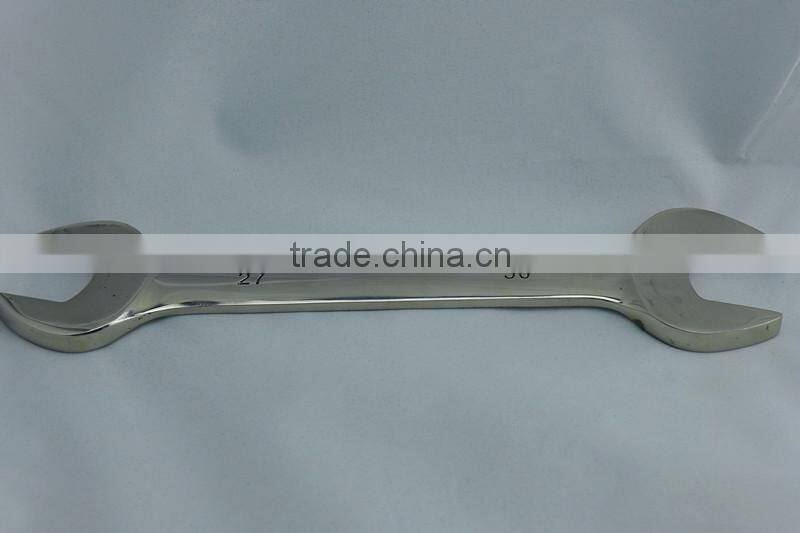

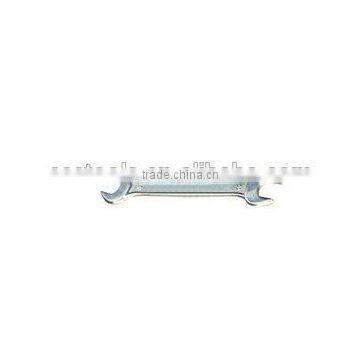

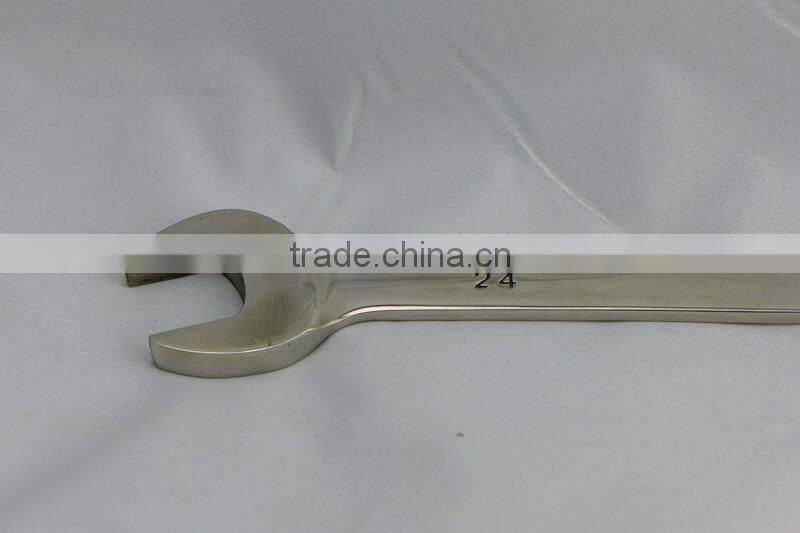

non magnetic tools,stainless steel tools, double open end wrench,handware tools,hand tools,ISO9001,UKAS

Cartons or wooden cases

                                        non sparking safety tools

1.The processing procedure



Al-bronze (HRC≥25°b>75-85kgf/mm² )

Be-bronze(HRC≥35°b>105-120kgf/mm²)



1) To prepare the raw material, blanking

2) Smelting

3) Pouring

4) Cut the water gap

5) Stored in the semi finished products warehouse

6) Punching

7) Through the drawbench or slotting machine

8) PE plain end and chamfering

9) Drill hole

10) Perfect the product and marking

11)If Be-bronze, need heat treatment

12) Polishing

13) Surface treatment

14)Stored in the finished products warehouse

2.What is a "non-sparking" tool?


"Non-sparking", "spark reduced", "spark-resistant" or "spark-proof" tools are names given to tools made of metals such as brass, bronze, Monel metal (copper-nickel alloy), copper-aluminum alloys (aluminum bronze), or copper-beryllium alloys (beryllium bronze).



Commonly used hand tools are often manufactured of steel alloys. Preferred "non-sparking" metals have less tensile
strength than steels usually used to make tools.A lower tensile strength means the metal has less strength or resistance
to tearing apart when stretched under test conditions. It also means that these tools are softer, wear down more quickly
than ordinary steel tools, and have to be dressed more frequently.



3.Explosion-proof tools technology parameters



1. Beryllium bronze explosion-proof tools explosion-proof performance



(a) Standard code: GBEx II C



(b) Hardness: HRC35 above



(c) Tensile strength: 105-120 KGF/mm²



(d) Magnetic: 0



2. Aluminium bronze explosion-proof tools explosion-proof performance



(a) Standard code: GBEx II B



(b) Hardness: HRC25 above



(c) Tensile strength: 75-85 KGF/mm²

4.Surface treatment



1.Zinc galvanization
2.Chrome treatment
3.Black finished
4.Electrostatic spraying



5.Quality



The products are made of choice of material so we assure you of the top quality



6.Package


Cases , wooden cases or as to your requirements . It is not only fashionable and attractive but also strong enough for long voyage



7. production runs


8. product purpose
oil


mineral


railway


9.Company strength



-Experience: over 30 years



-Price: always reasonable based on high quality.good quality ,best price.



-Quality: high quality, national and international quality standard



-Function: cushion grip, easy to handle, low maintenance cost, rust protection



-Delivery: punctual, always try to be faster



-Service: quick, caring, faithful, responsible






10.The main products of our company are as follow:


Name
Material
Scale
Expot
Technical process
Surface treatment
Non sparking tool
Al-Cu,Be-Cu
Small oil depot,oil refinery,transfer stations,gas production plant,drill crew,sevice station,chemical industry,petroleum industry,power generation and so on
Middle east,europe,south africa,southeastern asia
Charge mixture,pull the end of hole,revised neck,throw neck,ball blast,smelting,casting,bore a hole and so on
Zine,chrome,blacking treatment and so on
Non magnetic tool
Be-Cu,Stainless steel
Magnetic scale
As above
forging
Adove
Special tool
45#steel,40Cr
As hardware tool scale
As above
forging
above

11.Compay view



(1) Testing Center





(2)Production Line



                                          Your success is our business
