HBRF Series Box Resistance Furnace (high-temperature 1000 Degree)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEOTEST EQUIPMENTS
Model Number:
HBRF
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai negotiation
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HHTO-1 Damp Heat Test Oven ( Temp Humidity Testing Equipment)NegotiableMOQ: 1 Set -
TC-20KB Electronic Balance (Electronic Scale)NegotiableMOQ: 1 Set
-
TC-60KA Large Capacity Electronic BalanceNegotiableMOQ: 1 Set
-
TC-100K Large Capacity Electronic Balance ScaleNegotiableMOQ: 1 Set
-
CDM-15 Concrete Core Drilling Hole MachineNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
GEOTEST EQUIPMENTS
Model Number
HBRF
Specifications
box type electric resistance furnace1.fast temperature rise
2.excellent heat preservation

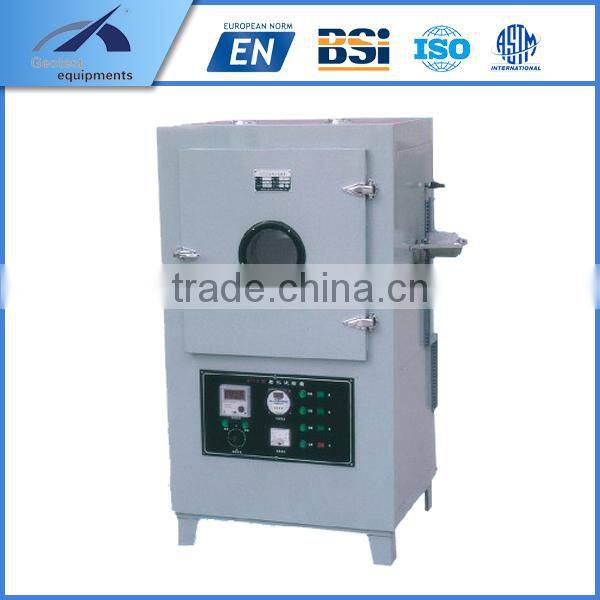

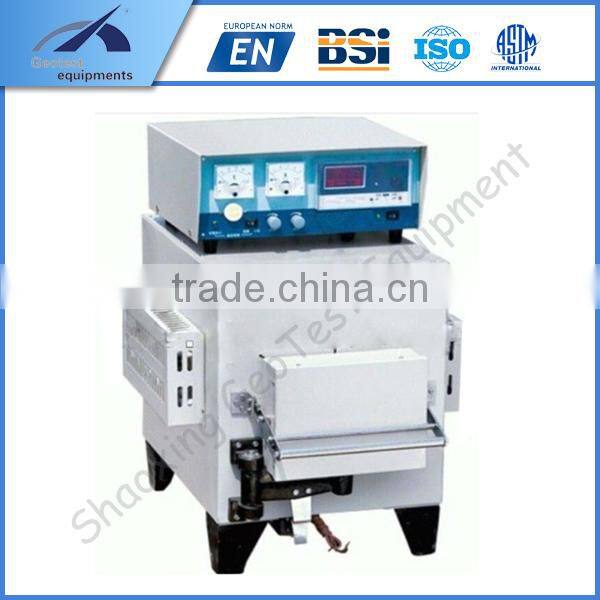

HBRF Series Box Resistance Furnace
(high-temperature 1000 degree)
Characteristic:
1. Cold rolling steel spraying exterior; open-side door enables easy on/off.
2. Medium temperature furnace adopts enclosed fire pot. The spiral electric alloy wire coil as heating
component coiled on the furnace walls. It is efficient and durable.
3. High temperature tubular resistance furnace adopts heat resistant combustion tube and takes elema as heating component to fix on the fireport exterior.
4. High-temperature box resistance furnace takes elema as heating component to fix inside the firepot.
| Model | HBRF-2.5-10 | HBRF-4-10 | HBRF-8-10 | HBRF-12-10 |
| Working voltage | 220V.50Hz | 220V.50Hz | 380V | 380V |
| Norminal power | 2.5KW | 4KW | 8KW | 12KW |
| Norminal temperature | 1000℃ | 1000℃ | 1000℃ | 1000℃ |
| Heating time | ≤60 minutes | ≤70 minutes | ≤80 minutes | ≤90 minutes |
| Chamber size(mm) | 200×120×80 | 300×200×120 | 400×250×180 | 500×300×200 |
| Overall dimensions(mm) | 625×445×530 | 735×495×480 | 930×580×625 | 940×660×730 |
| Weight | 45kg | 55kg | 115kg | 180kg |
