Home > Instruments & Meters > Test Instrument > Test Machine > CDM-15M Multi-function Concrete Core Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEOTEST EQUIPMENT
Model Number:
CDM-15M
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Negotiable
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CDM-20T Bench Concrete Core Drilling MachineNegotiableMOQ: 1 Set -
CDM-20M Multi Function Geological Drilling MachineNegotiableMOQ: 1 Set
-
CDM-20 Price Concrete Core Drilling MachineNegotiableMOQ: 1 Set
-
HHTO-1 Environmental Heating Test Equipment/Climatic Oven/Humidity TesterNegotiableMOQ: 1 Set
-
SS-H High-frequency Sieve ShakerNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
GEOTEST EQUIPMENT
Model Number
CDM-15M
Power
Electronic
Usage
Other, Drilling Machine, Geological Drilling Machine

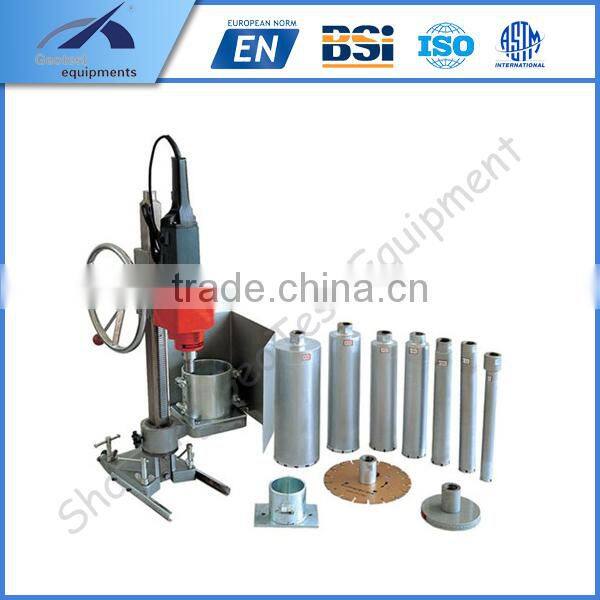

Multi-function Concrete Core Drilling Machine
| Max.diameter of core drilling samples | 150mm | |||||
| re drilling depth | 400mm | |||||
| Core drilling direction | vertical down | |||||
| Input method | hand operated | |||||
| Rotation speed of main shaft | 500-1000 r.p.m. | |||||
| Core bits | diamond thin-wall core bits | |||||
| Cutting (grinding) direction | horizontal | |||||
| Max. cutting (grinding) diameter | 150mm | |||||
| Max. cutting (grinding) height | 150mm | |||||
| Cutting saw and grinding head | diamond | |||||
| Power | single-phase series motor 2.5KW | |||||
| Power supply | 220V | |||||
| Overall dimensions | 470x280x880mm | |||||
| Weight approx | 45kg | |||||
Multi Function Drilling Machine
Humidity Heating Testing Oven
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
