Stainless Steel Standard Sand Test Sieve

1. Characteristics

a. Test sieves (wire mesh sieves, testing equipment, testing machine)

b. Sieves are used to do sample selection and classification for soil, aggregates and stones.

We can supply two kinds of standard test sieves as following:

BS & ISO Standard Sieves

2. Specifications

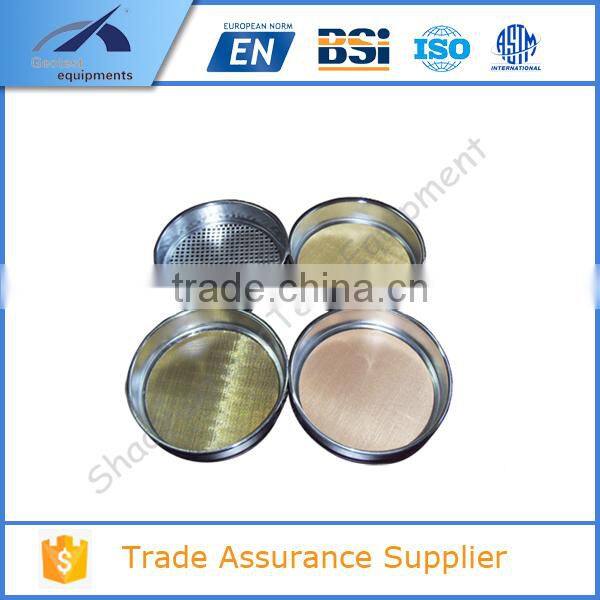

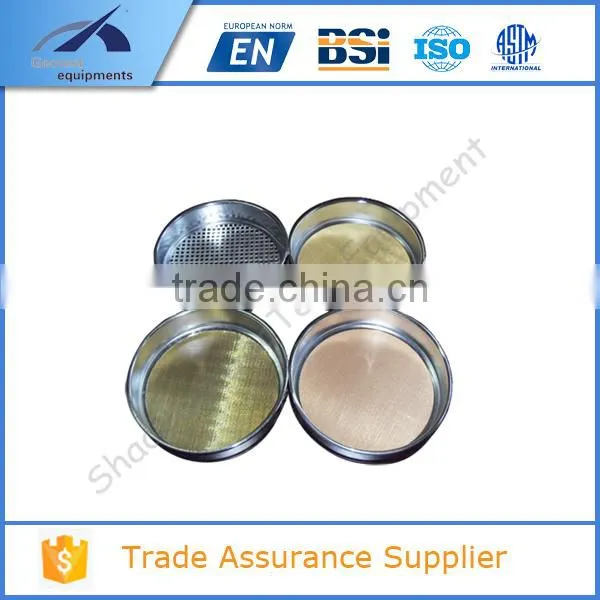

a. Woven Wire Mesh Sieves are manufactured from stainless steel mesh and supplied with full-depth frames.

Frame diameters are avaliable as Φ200mm and Φ300mm.

Aperture sizes are as per 38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm

b. Perforated Plate Sieves (Square Hole) are manufactured from tinned steel plate and supplied with full-depth frames.

Specifications:

Frame diameters are avaliable as Φ200mm and Φ300mm.

Aperture sizes are as per 4.00mm, 4.75mm, 5.00mm, 5.60mm, 6.30mm, 6.70mm, 7.10mm, 8.00mm, 9.50mm, 10.0mm, 11.2mm, 12.5mm, 13.2mm, 14.0mm, 16.0mm, 19.0mm, 20.0mm, 25.0mm, 28.0mm, 31.5mm, 37.5mm, 40.0mm, 45.0mm, 50.0mm, 63.0mm, 75.0mm

Lidlid and receiver diameter: Φ200mm and Φ300mm
