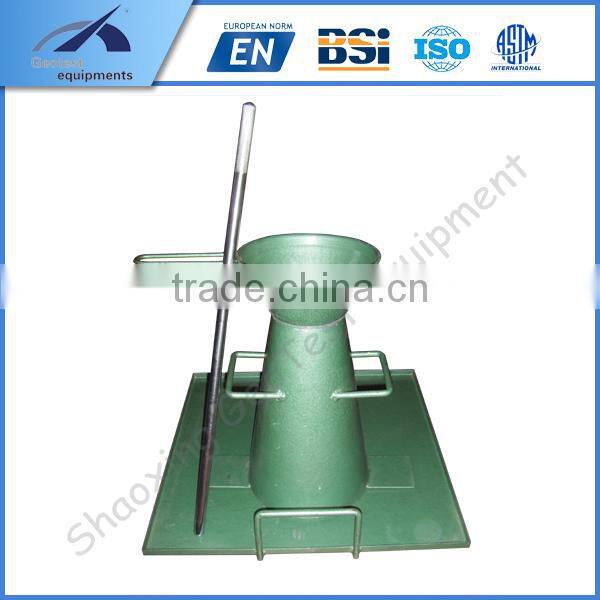

Civi engineer equipment concrete slump cone
1. Characteristics
a. We supply the completely set, including slump cone, slump cone funnel, steel rule, base plate, tamping rod, scoop.
b. It is used to determine the consistency of concrete mixture having medium and high workability.
2. Test methods
a. Wetting slump cone and backplanes,wall and floor in the slump cone should not be out on the water.
b. Mixing of concrete will be evenly divided into three layers into the sample tube, so that after each tamping height of the high cylinder about 1 / 3.
c. Removal of concrete on the floor of the bucket, the smooth vertical lift slump cone.
d. Filed after the slump cone, measuring height and slump of concrete cylinder specimen height difference between the highest point.
e. Determination of slump at the same time, visual methods can be used the following assessment of the nature of concrete mixture, and recorded for future reference.
Civi engineer equipment concrete slump cone
| Upper diameter | Φ100mm |
| Lower diameter | Φ200mm |
| Height | 300mm |
| Tamping rod | Φ16×600mm |
| Weight approx | 2kg |
Civi engineer equipment concrete slump cone
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
