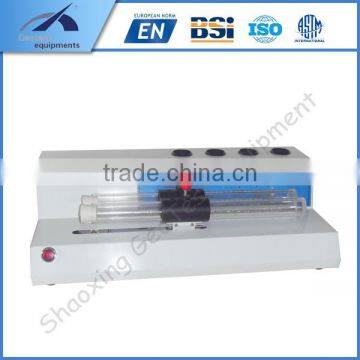

Double-Tube Sand Equivalent Shaker
Characteristics
a. Double tube.
b. Plastic measuring cylinders
c. For shaking automatically the sand equivalent cylinders.
d. Recommended for use in laboratories performing a large number of tests, this shaker
provides a consistent and repeatable oscillation, minimising variation in test results.
Automatic Sand Equivalent Shaker (SETA-2)
1 | Rated voltage | 220±50HZ |
2 | Rated power | 180W |
3 | Vibrating frequency | 90 times/30s |
4 | Amplitude | 203mm |
5 | Automatically controlled timing | 30s/time |
6 | Dimension | 560×320×360mm |
7 | Counterweight piston | 1kg±5g |
Cylindrical plastic testing drum
1 | I.D. | 32mm±0.25mm |
2 | Height | 420mm±0.25mm |
3 | O.D of flushing tube | 6mm±0.25mm |
4 | I.D. | 4mm±0.2mm |
Double-Tube Sand Equivalent Shaker
Double-Tube Sand Equivalent Shaker
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
