Laboratory stainless steel standard testing sieves with different size
1. Characteristics
a. Test sieves (wire mesh sieves, testing equipment, testing machine)
b. Sieves are used to do sample selection and classification for soil, aggregates and stones.
We can supply two kinds of standard test sieves as following:
BS & ISO Standard Sieves
a. Woven Wire Mesh Sieves are manufactured from stainless steel mesh and supplied with full-depth frames.
2. Specifications
Frame diameters are avaliable as Φ200mm and Φ300mm.
Aperture sizes are as per 38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm
b. Perforated Plate Sieves (Square Hole) are manufactured from tinned steel plate and supplied with full-depth frames.
Specifications:
Frame diameters are avaliable as Φ200mm and Φ300mm.
Aperture sizes are as per 4.00mm, 4.75mm, 5.00mm, 5.60mm, 6.30mm, 6.70mm, 7.10mm, 8.00mm, 9.50mm, 10.0mm, 11.2mm, 12.5mm, 13.2mm, 14.0mm, 16.0mm, 19.0mm, 20.0mm, 25.0mm, 28.0mm, 31.5mm, 37.5mm, 40.0mm, 45.0mm, 50.0mm, 63.0mm, 75.0mm
Lidlid and receiver diameter: Φ200mm and Φ300mm

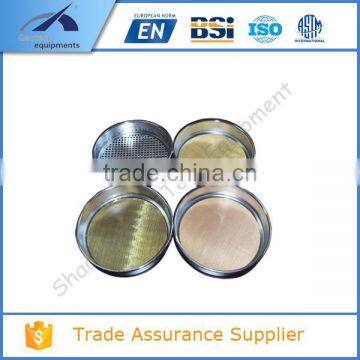

Product picture:
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
