Tile Leveling System

Specifications

A correct setting requires the perfect levelling of the tiles.

 • Very often it is hard to properly set flexible and low thickness tiles as well as big sized and heavy tiles because of the uneven floor foundation.

 • As a result, tiles which seemed perfectly levelled while installing them, once the adhesive set, they show differences in level that compromise the aesthetics.

 • This can be avoided thanks to the levelling spacers which preserve the perfect levelling of the tiles and, also, they speed up the setting.

• So, the levelling spacers make the setting easy, fast and the tiles are perfectly levelled.

 • Minimum required joint: 1.5 mm (1/16"). Tile thickness: minimum 3 mm (1/8"), maximum 20 mm (3/4").

 • Both the positioning and the removal of the levelling spacers are easy and quick.

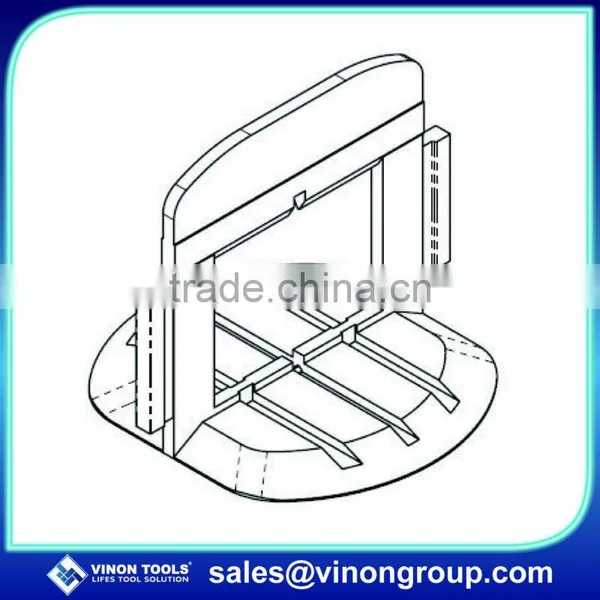

HOW TO USE: How to set the support:

1. After having spread the adhesive, insert the support underneath the tiles and along the 4 sides.

2. According with tiles size, set one or more supports on every side of the tile.

 3. Set the tile and beat it with a rubber mallet.

How to insert the wedge:

1. Insert the wedge in the support slot paying attention not to pass the breakpoint.

2. To facilitate this operation, the use of the special traction-adjustable-pliers is recommended.

How to remove the support:

Once the adhesive is set, the protruding part of the support, has to be removed by separating it from the base.

This can be done thanks to the traction-adjustable-pliers, with a rubber mallet or even with feet.

Beat parallel to the joint.
