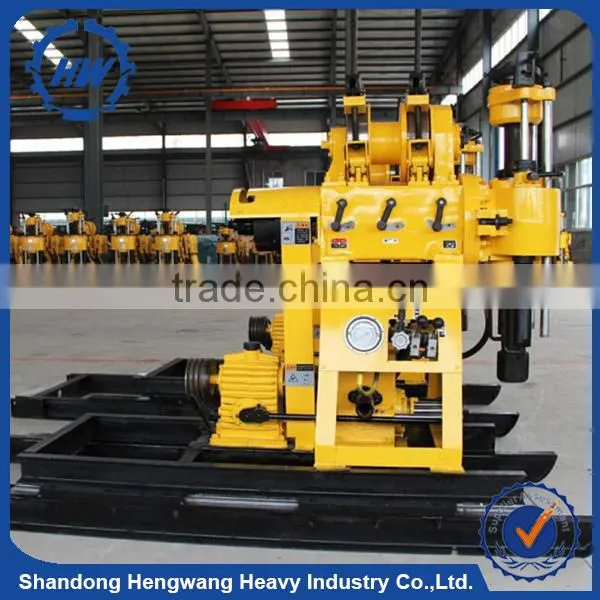

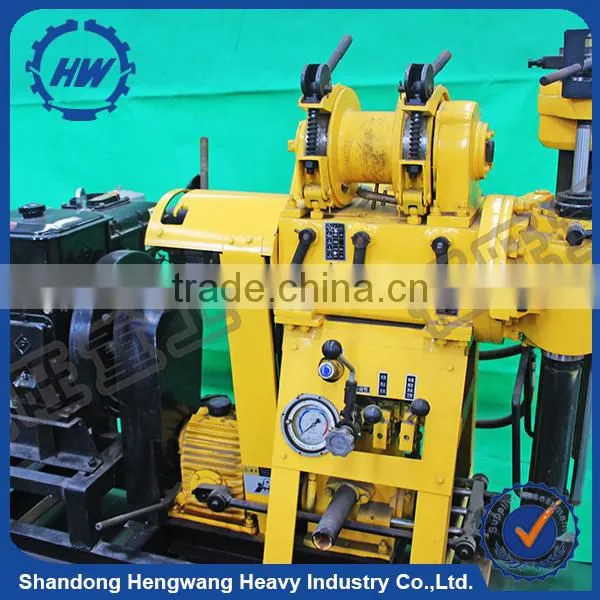

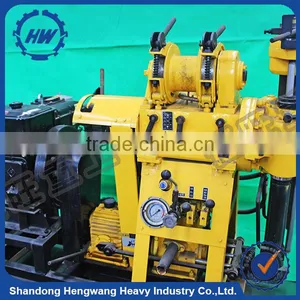

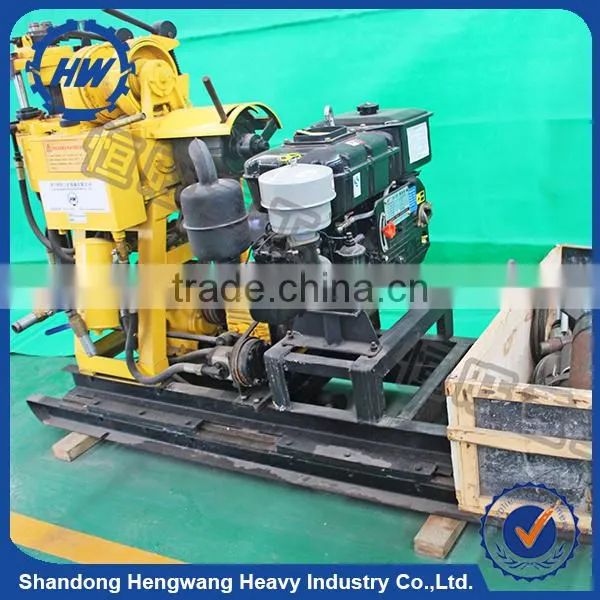

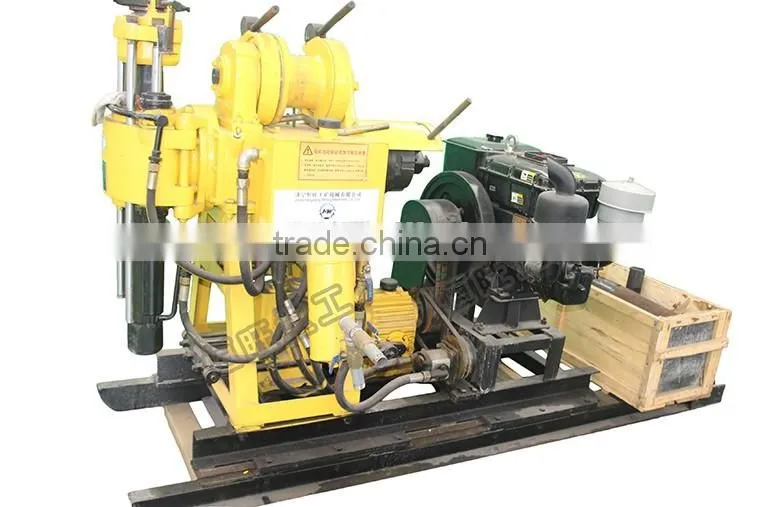

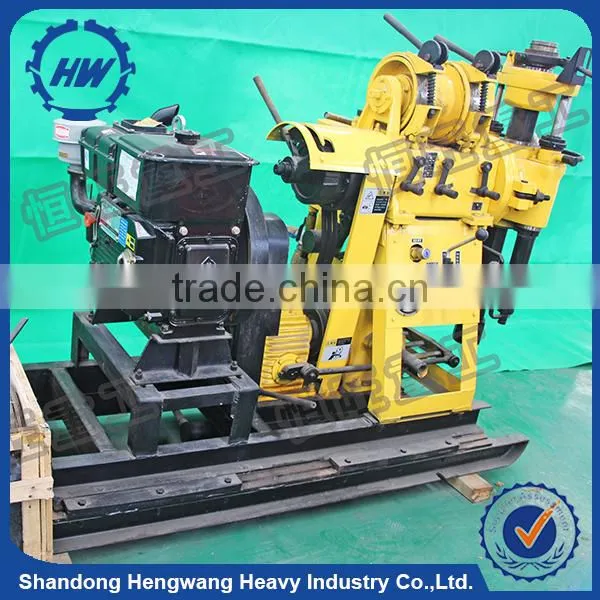

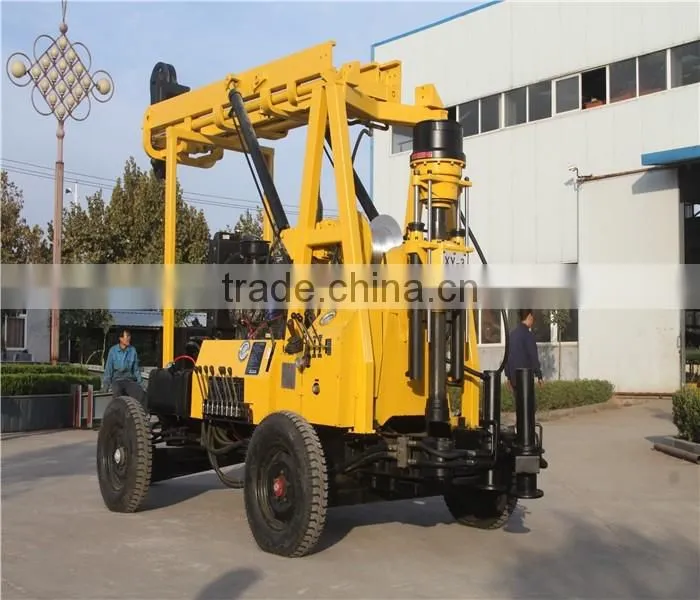

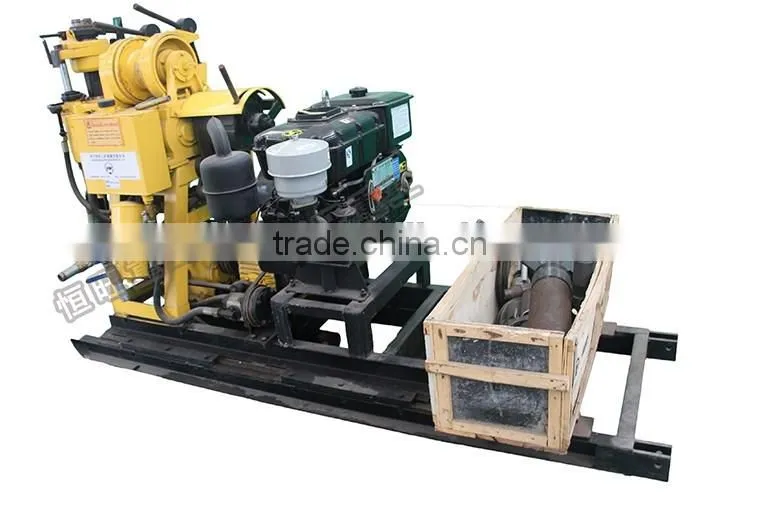

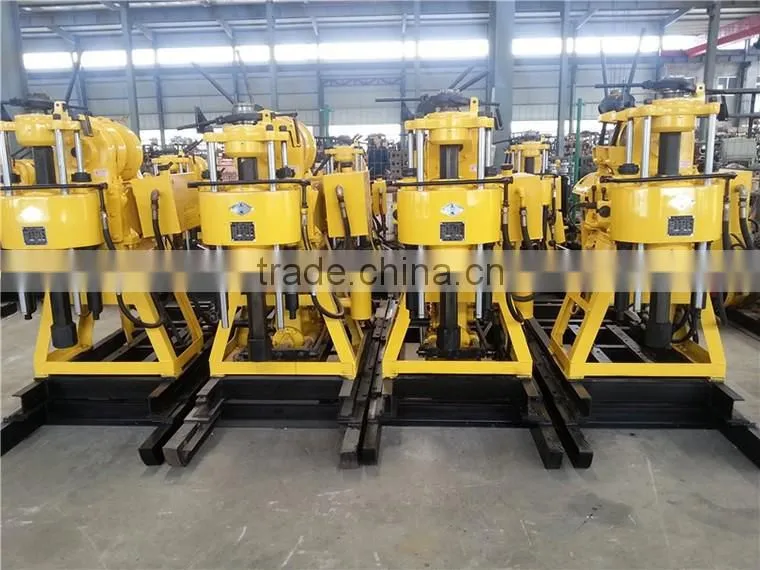

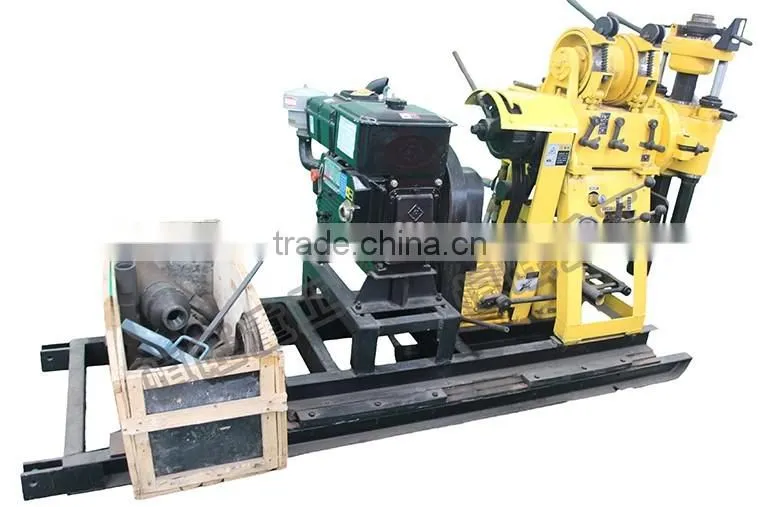

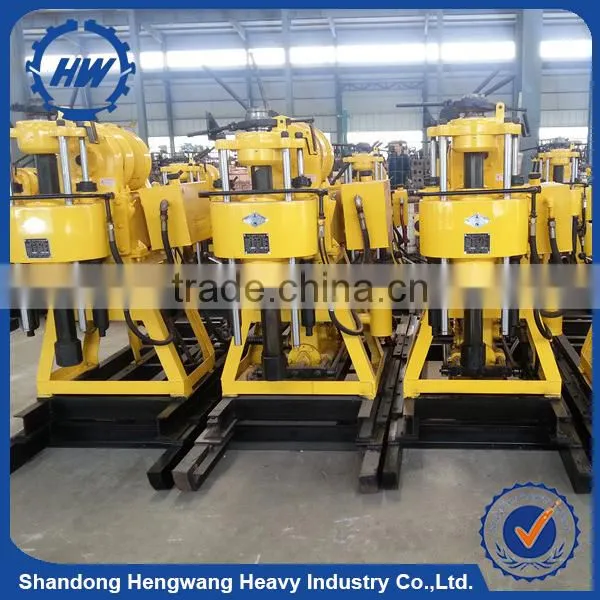

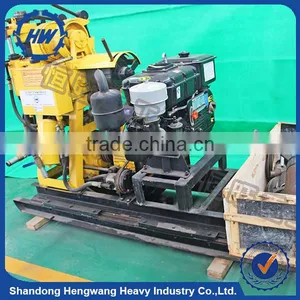

Help CenterFactory Selling Deep Well Drilling Rig 190m for Sale
Related Products
-
190m Rock Core Drilling Machine for Drilling EngineeringUS$ 12,000 - 12,000MOQ: 1 Set -
HWG190 Rock Core Drilling Rig for Exploration UseUS$ 12,000 - 12,000MOQ: 1 Set
-
HWG-190 Geological Drilling Rig for SaleUS$ 12,000 - 12,000MOQ: 1 Set
-
Drilling Engineering Pebble Layer Drilling Rig for SaleUS$ 12,000 - 12,000MOQ: 1 Set
-
Drilling Engineering Rock Drilling Rig 190m for ExplorationUS$ 12,000 - 12,000MOQ: 1 Set
Having hydraulic automatic feeding machanism, improve the drilling efficiency, reducelabor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod,convenient operation,safe and reliable.
Hoist with cage,forms the double support structure of the star wheel, can withsatnad strong shock.
Four groups of axle box bearing positioning,keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer
The machine adopts taper clutch of national patent tecnology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance
Application :
The drill is suitable for use in water well drilling, the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
can be selected acording to the underlying different alloy, diamond,compact drill for drilling,etc.
Level 3,2-9 drilling, sandy clay and rock formations ,etc.
| HWD190 Water well drilling rig | |
| Machine parameters | |
| Drill hole depth | 190m |
| Maximum opening diameter | 75-150mm |
| Final hole diameter | 75-46mm |
| Take the initiative to drill pipe | 53/59*4200mm |
| Drill pipe diameter | 50mm,42mm |
| Borehole inclination | 90-75 |
| Power (diesel engine) | 13.2/2200kw/r/min |
| Structure weight/size | 955kg/2400*950*1400 |
| Vertical shaft | |
| Vertical spindle speed | 130,300,480,730,830,1045r/min |
| Vertical stroke | 450mm |
| Hoist | |
| Single rope lift | 9.6KN |
| Single rope winding speed | 0.35, 0.8, 1.29, 1.96, 2.23 m/s |
| Drum diameter | 140mm |
| Diameter of wire rope | 9.3mm |
| Wire rope capacity | 27m |
| Rig | |
| Rated load | 2t |
| Effective height | 6m |
| Tower leg specifications | 73mm |
| Mud pump | |
| Model | BW95 |
| Flow | 95L/min |
| Maximum pressure | 1.2Mpa |
| Reciprocating frequency | 93times/min |
| Suction pipe diameter | 51mm*4.5m |
| High pressure water pipe diameter | 32mm*6m |
