XY-44A Core Drilling Rig/mining diamond core drilling machine Introduction
1. XY-44A is a core drilling machine, more rational rang of rotating is available and its rotating speed has 8 grades. With powerful drilling capacity, the rated drilling depth comes up to 1,000m with wire line 71mm drill rod.
2. The drill is aligned a water brake for Steady and smooth deep hole drilling.
3. Supplying oil with a simplex gear pump, it is easy for installation and operation; The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.
4. It is easy to get to know the conditions in hole with an antivibration meter. Less in operating handles, the rig can be operated credibly and flexibly.
5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.
Applications:
1. Core drilling with carbide and diamond bit.
2. Engineering geological prospecting.
3. Water well drilling.
4. Basic pile foundation engineering in large diameter.
XY-44A Core Drilling Rig/mining diamond core drilling machine Parameter
Model of drilling rod |
Drill rod |
Drill depth(m) |
|
|
Drill Rod Made in China |
Planer in and out |
Φ43×6 |
1500 |
Φ54×6 |
1100 |
||
Φ67×6 |
930 |
||
Thickened Inner drill pipe |
Φ50×5.5 |
1400 |
|
Φ60×6 |
1050 |
||
Wire-line drilling rod |
Φ55.5×4.75 |
1500 |
|
Φ71×5 |
1100 |
||
Φ89×5 |
900 |
||
|
DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod |
Thickened Inner drill pipe |
BW |
1250 |
NW |
1000 |
||
HW |
660 |
||
|
Core with Wire Line |
BQ |
1500 |
|
NQ |
1200 |
||
HQ |
850 |
||
|
Spindle speed |
Forward speed:80;148;212;247;308;456;650;945;rpm |
|
Reverse speed:66;201rpm | ||
Stroke of spindle |
600mm |
|
Max .lifting capacity |
120KN |
|
Max.torque of spindle |
4300N.m |
|
Max .feeding capacity |
90KN |
|
Hoist (Type: Planetary gearing transmission) |
Steel Wire Cable Dia |
18.5 mm |
|
Max .lifting capacity (single line): |
45KN |
|
Power eng speed :1500r/min |
0.70; 1.29; 1.84; 2.68 m/s |
|
Clutch: |
Type: Dry single chip friction clutch |
|
Gearbox |
Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed) |
|
Oil Pump |
Type: Single Gear Pump |
|
Power |
Electric motor: |
45kw |
Diesel engine |
62kw |
|
Water Brake |
Working Speed: 700 ~ 1800 rpm |
|
Single Rope Compensational Speed:3~8m/s | ||
Single Rope Compensational Load:45kN | ||
Dimensions (L×W×H): |
3030×1100×1890mm |
|

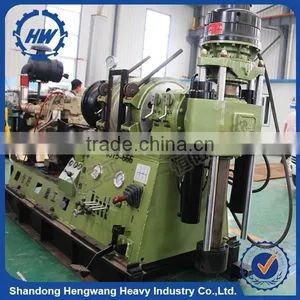

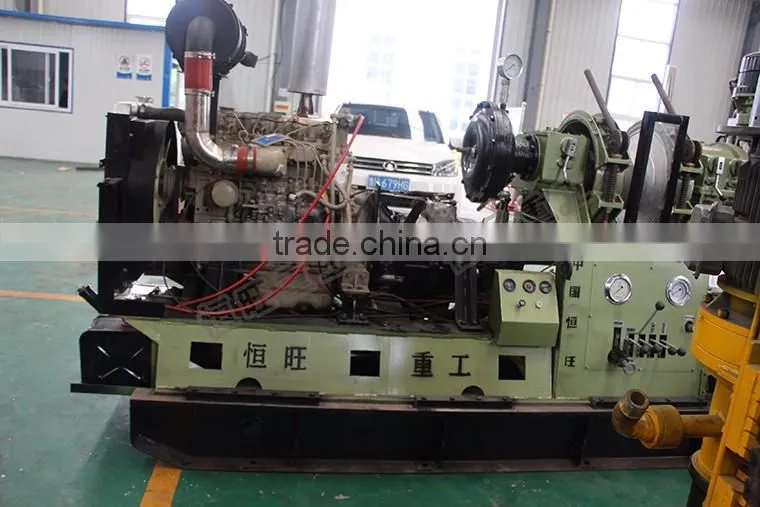

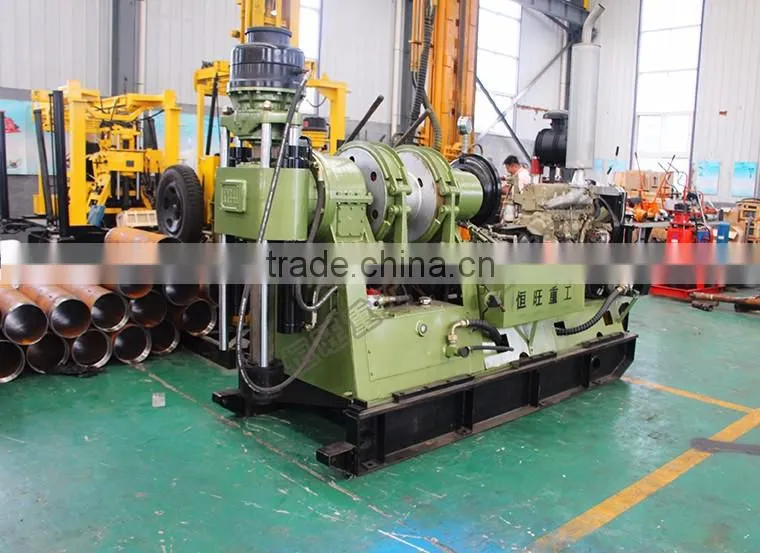

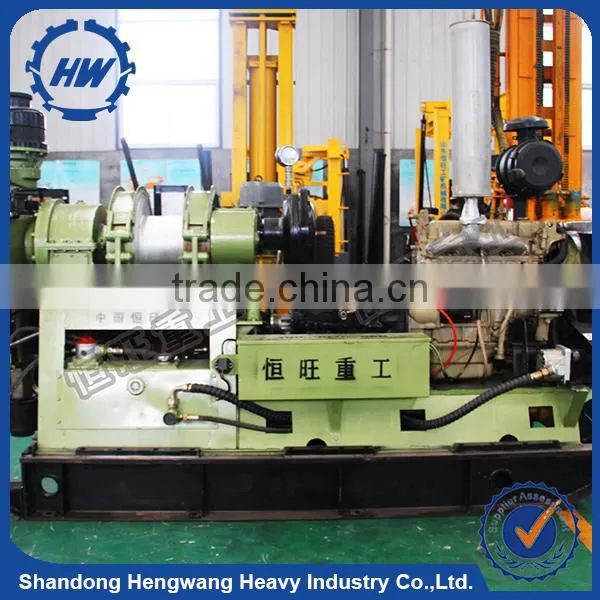

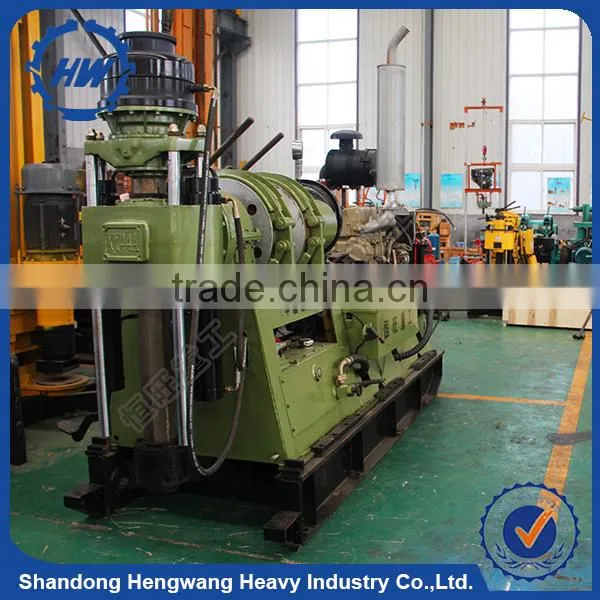

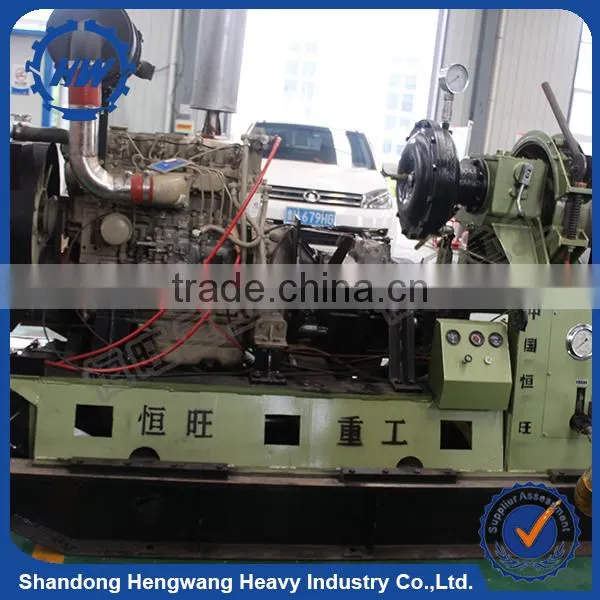

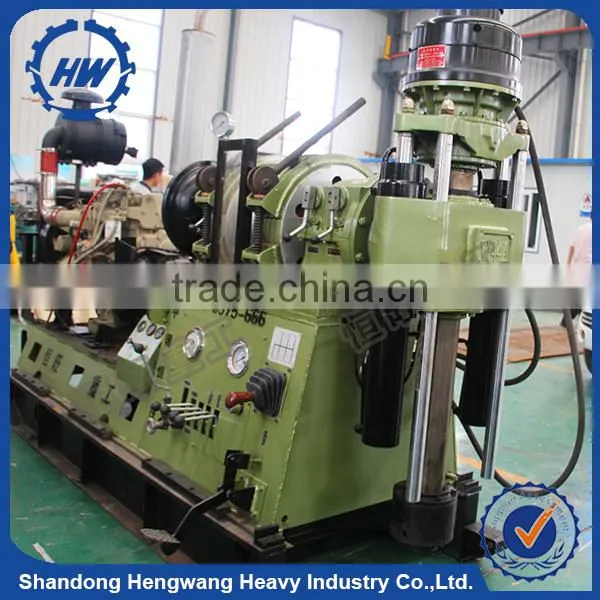

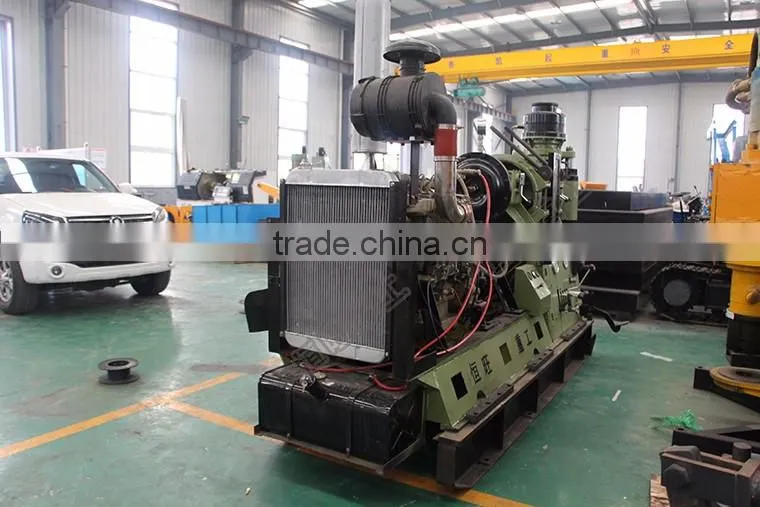

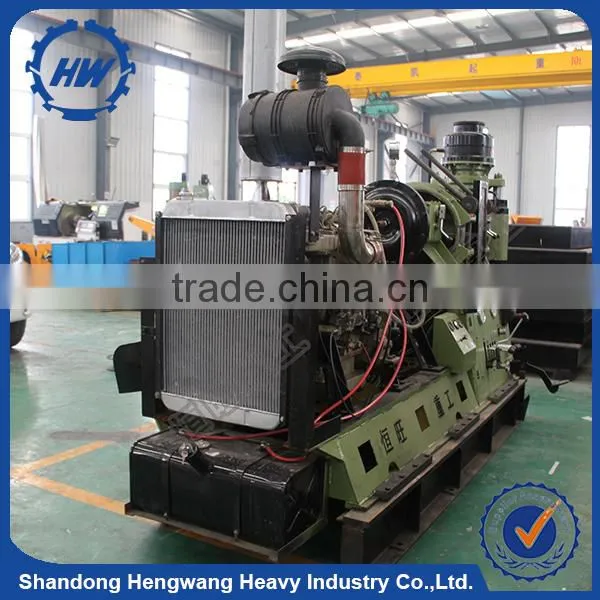

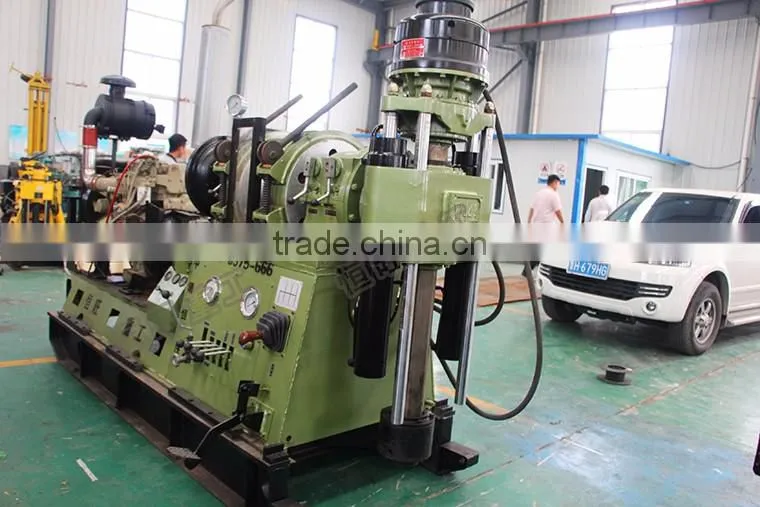

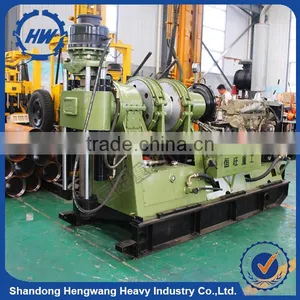

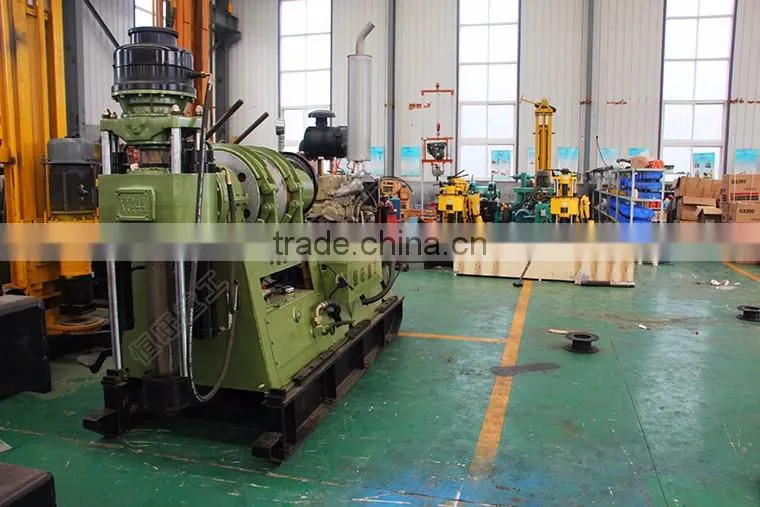

XY-44A Core Drilling Rig/mining diamond core drilling machine Photos
