Specifications
NC Brush Tufting Machine3-Axis
X-Y stroke:500mm*220mm;
Type of motor:servo motor;
X-Y driving screw:precision ball screw.

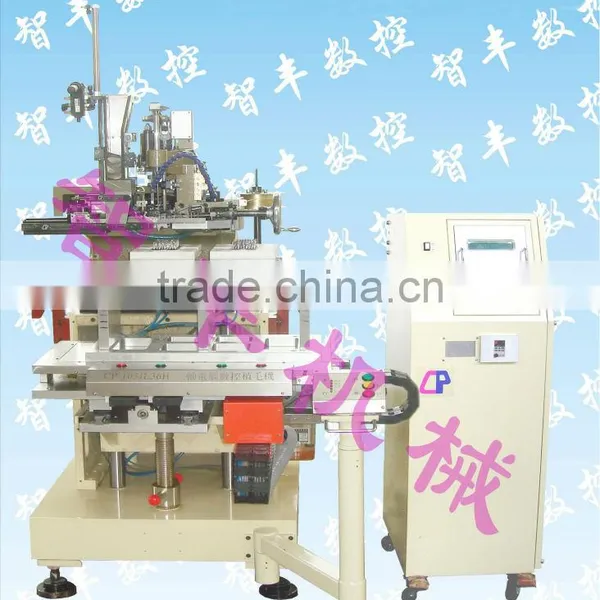

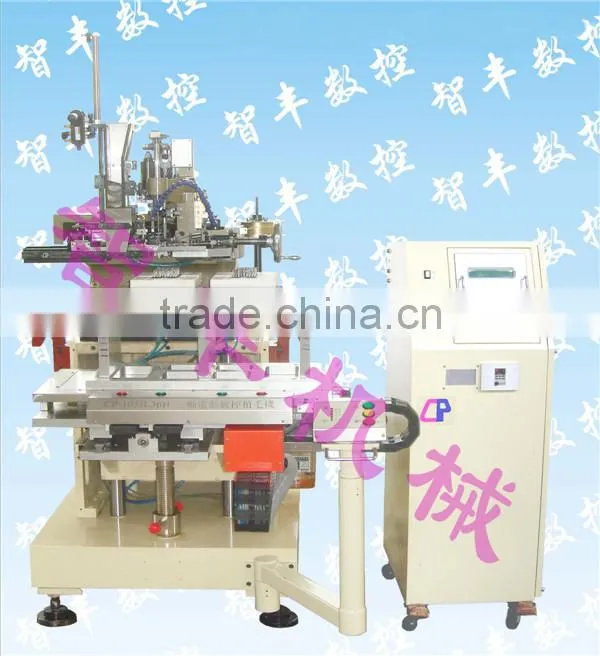

3-Axis NC Brush Tufting Machine
CP-103JL36H
1,Special for wooden brushes high speed tufting with boar bristle
2,Designed for broom making with spatial holes tufting, holes distribution can be freely designed
3,Newly designed bristle feeding mechanism without using bristle carrier spring blade, so that getting bristle would be more stable and durable
4,High speed, high precision and high stability
5,An automatic electric oil pump is equipped in the tuft head for motion part lubrication so as to lengthening the lifttime of parts, lubricating oil is supply and recollected to filter then use in recycle
Parameters:
1,Axis:3 axis
2,X-Y stroke:500mm*220mm
3,Type of motor:servo motor
4,X,Y driving screw:precision ball screw
5,X-Y guide way:LM guide
6,X-Y position accuracy:±0.01mm/100mm
7,Air input:air can be adjusted within 1-8bar
8,Main power input:3 phase 346v
9,Power consumption:2500w
10,Bristle container:single colour bristle container
11,Diameter of tufting hole:ø1.2-4.0mm
12,Tufting length:40-70mm(max length of bristle)
13,Tufting method:anchor type
14,Tufting speed:4-5 holes/sec
15,Machine size:1320mm*1100mm*1800mm
16,Controller size:700mm*480mm*1360mm
17,Machine gross weight:1500kg
18,Controller gross weight:150kg
Common features of standard display machine and touch screen display machine:
1,It is provided with manual data input as well as teach in data input method
2,Auto or step operation
3,Speed of drilling is controlled by inverter for various speed adjustment
4,Test mode to test machine of functions properly
5,Editing features of insert, delete or copy
6,Normal working of positioning testing
7,Tufting excessive pressure alarm
8,Production speed is adjustable
Standard display machine special features:
1,4row×10 column LCD alphanumerical display
2,For each program, it can be up to 1000 holes(can be saved up to 3 kinds of brush up to a total of 1000 holes)
3,With Rs232 for the communication with a PC with the company’s software
Touch screen display machine special features:
1,Complete touchable screen display for easy data editing and operating
2,According to requirement, the display can be set at factory for Chinese or English display
3,Data can be saved up to U disk that can be used with PC for data retrieval
4,Each brush for work up to 1000 holes
5,During auto run mode, it can be paused for missed holes reworking
6,Alarm display when problem occurred
