Specifications
High drain up to 120A(30S);Humanized monitor interface available;
Easy to install, expand,control and maintenance;

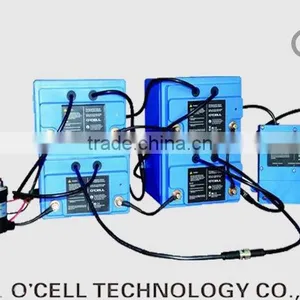

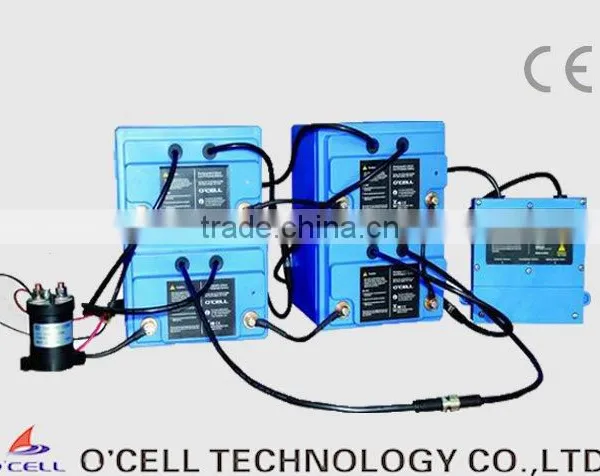

Specification of 48V Battery Pack
No. |
Item |
Specification |
1 |
Battery module |
IFM12-400E1(12.8V40Ah) |
2 |
Assemble method |
4S1P |
3 |
Nominal capacity/Ah |
40Ah |
4 |
Nominal voltage/V |
51.2V(12.8V*4) |
5 |
Max. Charge voltage/V |
≤58.4V(14.6V*4) |
6 |
Discharge cut-off voltage/V |
≥40.0V(10.0V*4) |
7 |
Recommended charge current/A |
≤20A |
8 |
Discharge current/A |
≤80A |
9 |
Max. discharge current/A |
≤120A(30S) |
10 |
Weight/Kg |
<26Kg |
11 |
Approximate resistance/mΩ |
<90mΩ |
12 |
Dimension(for reference only) |
depend on configuration |
13 |
Temperature range |
charge:0~45°C |
discharge:-10~50°C | ||
14 |
Storage temperature |
-10~45°C |
15 |
Over voltage warning/V |
62.4V(15.6*4) |
16 |
Over voltage alarm/V |
64.0V(16.0V*4) |
17 |
Under voltage warning/V |
44.8V(11.2V*4) |
18 |
Under voltage alarm/V |
36.8V(9.2V*4) |
19 |
Over temperature warning/°C |
60°C |
20 |
Over temperature alarm/°C |
65°C |
21 |
Regeneration function |
Depend on Motor controller |
Note:
1. Each battery module has one slave BMS circuitry inside;
2. Master BMS circuitry(we called "BMU") collect all information from each battery module through RS485, then decide to cut-off the contactor or not;
3. We strongly recommend customer to use two contactors (one for charge and another for discharge) in the battery system.
Our advantages
BMS:
O’CELL BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.
Besides the basic functions such as over charge/ discharge, over current, short circuit, over temperature and balancing, Our BMS owns the following features,
1. Master-Slave architecture makes the system flexible;
2. Two level warning makes maintenance easier;
3. CAN2.0 and industrial level electronic components make system reliable;
4. Contactor makes high rate charge & discharge feasible;
5. Periodic insulation measurement makes personnel safety possible;
6. Host can control the system easily;
1. Modular design makes the system installation, maintenance easier;
2. Battery modules can be connected in series or parallel to make the system more flexible;
3. IP56 dust and water proof design suit for in severe circumstance;
4. Dual LED indicator makes the battery module status easy to know;
BMU Photo
Monitoring Software
