Master BMS Circuitry for E-car or Hybrid Electrical Vehicle

Name: Master BMS Circuitry for E-car or Hybrid Electrical Vehicle
Brand: OCELL
SKU: 143103340

Master BMS Circuitry for E-car or Hybrid Electrical Vehicle thumbnail-1

Master BMS Circuitry for E-car or Hybrid Electrical Vehicle photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OCELL

Model Number:

BMU-HV

Contact Supplier Request Quote Chat Now

Ocell New Energy Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OCELL

Model Number BMU-HV

Type Li-Ion

Components Other, lifepo4

Size 188 mm x 160 mm x 38 mm

Voltage 150~450V

Weight 550g (1.21lbs)

Nominal Capacity up to 132KWh

Application Powertrain such as EV,HEV,Energy storage

Specifications

1. System voltage range is 150V~450V;
2. CAN, RS485 and support 4 contactors;
3. Enough protection function to battery system;

BMS:

O’CELL BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.

Besides the basic functions such as over charge/ discharge, over current, short circuit, over

temperature and balancing, Our BMS owns the following features,

1. Master-Slave architecture makes the system flexible;

2. Two level warning makes maintenance easier;

3. CAN2.0 and industrial level electronic components make system reliable;

4. Contactor makes high rate charge & discharge feasible;

5. Periodic insulation measurement makes personnel safety possible;

6. Host can control the system easily;

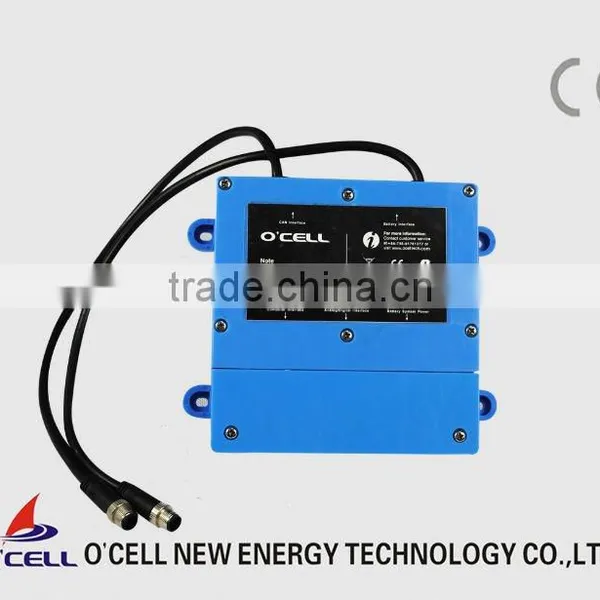

BMU Photo

BMU specification

Item	Comments
RS-485 Communication	RS-485 Communications is used to communicate with the battery modules.
CAN interface	CAN interface will be used to communicate with the host or the charger
Charge Disconnect	When the battery modules are fully charged, they will communicate with the BMU and the BMU has the ability to turn off the charger or open the charger main contactor, interrupting current flow.
Analog/Digital Communications	In case the host controller doesn’t have a CAN interface, the BMU communicates with the host via analog/digital signals. These signals include: Outputs – SOC (A), disable regen(D), early warning(D), BMU fault(D) Inputs- 12V ignition (D), vehicle fault (D)
Discharge Interrupt	When the batteries are discharged to the under-voltage protection point, BMU will attempt to alert the host to inhibit discharge. If discharge continues beyond this warning, the BMU will request that the main contactor open or can open it itself.
Insulation measurement	The BMU will check to make sure the battery module is sufficiently isolated from the chassis before and after the main contactor is closed.
Pre-charge circuit	To limit the inrush current into the systems capacitors, a pre-charge resistor is connected to B+ before the main contactor is closed. This also prevents arcing and pitting across the contact tips. The BMU will close an auxiliary contactor to place a resistor in line with B+. After 2 seconds, the main line contactor will close.
Inter-module Balancing	Compensates slight capacity imbalance between different batteries when charging.
Intra-module Balancing	Compensates slight capacity imbalance between different cell-blocks within one module while charging.
Size	188 mm x 160 mm x 38 mm (7.4 in x 6.3 in x 1.5 in)
Weight	about 550g(1.21lbs)
