LiFePO4 72V110Ah Battery Pack

Name: LiFePO4 72V110Ah Battery Pack
Brand: Ocell
SKU: 143101982
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Ocell

Model Number:

72V40Ah

Composed Type:

Other, series and parallel

Ocell New Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Ocell

Model Number 72V40Ah

Composed Type Other, series and parallel

Type Li-Ion

Components Other, LiFePO4

Voltage 72V

Nominal Capacity 110Ah

Application EV,HEV

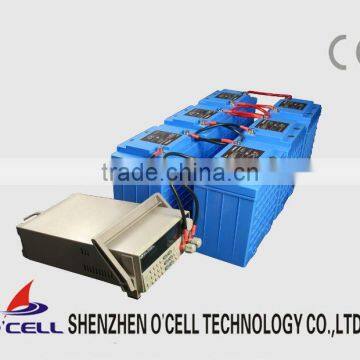

72V110Ah lifepo4 battery system
Advantages:

1)Interchange design because of the adoption of 12V70AH SLA battery case;

2)IP56 dust and water proof design to accommodate tough circumstance;

3)Master-slave BMS Architecture,it is much convenient to change defect battery modules or build different system;

4)Flat discharge voltage to offer stable power output;

5)SOC can be monitored by CANbus interface;

6)Own regeneration function to save energy;

7)Environment friendly;

Specification:

No.	Item	Specification
1	Battery module	IFM12-1100E1(12.8V110Ah)
2	Assemble method	6S1P
3	Nominal capacity/Ah	110Ah
4	Nominal voltage/V	76.8V(12.8V*6)
5	Max. Charge voltage/V	≤87.6V(14.6V*6)
6	Discharge cut-off voltage/V	≥60.0V(10.0V*6)
7	Recommended charge current/A	≤55A
8	Discharge current/A	≤110A
9	Max. discharge current/A	≤300A(30S)
10	Weight/Kg	<95Kg
11	Approximate resistance/mΩ	<60mΩ
12	Dimension(for reference only)	1560158250(LWH)
13	Temperature range	charge:0~45℃
13	Temperature range	discharge:-10~50℃
14	Storage temperature	-10~45℃
15	Over voltage warning/V	93.6V(15.6*6)
16	Over voltage alarm/V	96V(16.0V*6)
17	Under voltage warning/V	67.2V(11.2V*6)
18	Under voltage alarm/V	55.2V(9.2V*6)
19	Over temperature warning/℃	60℃
20	Over temperature alarm/℃	65℃
21	Regeneration function	Depend on Motor controller

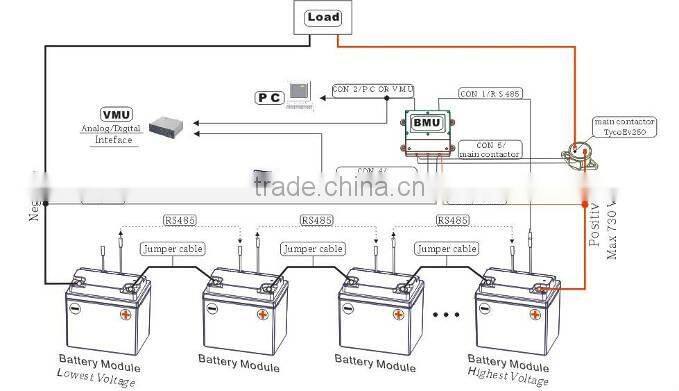

System Architecture:

Configuration List

Other components

No.	Item	quantity	description	Recommended brand
1	Wire between modules	5pcs	20mm² copper wire, 40cm	Silica gel wire
2	Wires to load	2pcs	20mm² copper wire, 100cm,red 1pcs, black 1pc	Silica gel wire
3	Contactor	1pcs	Main:12V/450V/150A Aux(if pre-charge applicable): 12V/450V/150A	LSIS/TYCO
4	fuse	1pss	200A<I<300A	LITTELFUSE/BOSSMAN
5	12V power supplier	1pcs	Activate BMU from vehicle-mounted cigarette lighter; Can be replaced by DC-DC circuit with a bit higher self-consumption energy.
