Specifications
Lithium battery pack 48V20AH.Capaity: 20AH
Structure: 16S6P
Dimension: 75*170*410mm
good performance

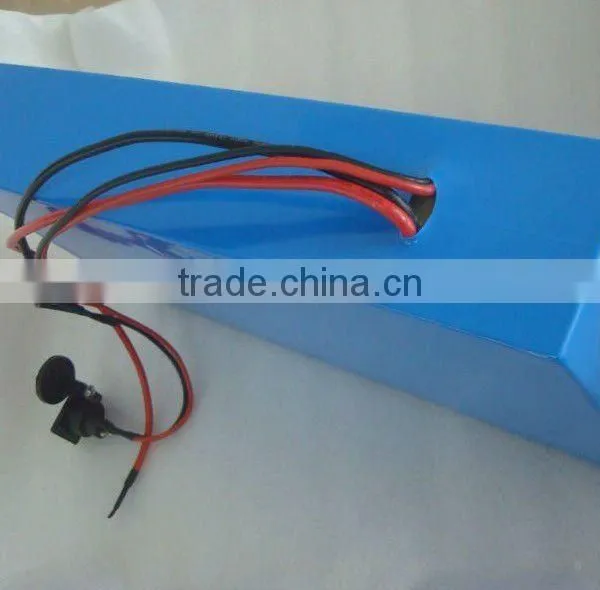

Lithium battery pack 48V20AH.
Voltage: 51.2V
Capaity: 20AH
Structure: 16S6P
good performance
Product specification parameter | ||
Model | LFP48V20AH | |
Capacity(0.2 C5A) | 20Ah | |
Nominal Voltage | 48V | |
Charge Voltage | 58.4V | |
Discharge Cut-off Voltage | 32V | |
Standard charge current | 4A(0.2 C5A) | |
Max. continuous discharge current | 20A (1 C5A) | |
Max. pulse discharge current(≤1s) | 30A (3 C5A) | |
Battery Structure | 16S6P(Add PCM) | |
Packaging Shell | None | |
Weight (Approx.) | 10±0.05Kg | |
Dimensions(Approx.) | 75*170*410mm | |
Impedance (Max, at 1000Hz) | 100mΩ ±10 | |
Cycle Life(80DOD%) | ≥1200 | |
Self-discharge Rate | ≤3% | |
Charge Method (CC/CV) | Standard | 0.2C5A×6.5 hr. |
Quick | 1 C5A×2.5 hr. | |
Operating Temperature | Charge | 0°C~45°C.32oF~113oF |
Discharge | -10°C~60°C,-4oF~149oF | |
Storage | -20°C~45°C,-4oF~113oF | |
Features:
1 High energy density
2 High working voltages for single battery cells
3 Pollution-free
4 Long cycle life
5 No memory effect
6 Capacity, resistance, Voltage, platform time consistency is good
7 With short-circuit production function, safe and reliable
8 Factory price& High quality
9 Good consistency, low self discharge
10 Light weights, small size
We could customize the current according to your request.
The input plug can be choosed by your preference.
Any question, please contact Coco Guo for help!
