Home > Products > LiFePO4 Battery 48V series > Electric bike battery 48V10AH (Rear rack)
Electric bike battery 48V10AH (Rear rack)
- 10000 Piece / Pieces per Month
- Shenzhen Hongkong
- T/T
Product Details
Type: | Lithium Battery | Voltage: | Other, 48v, 48V |
Packaging Details
Standard export package
Product Description
Specifications

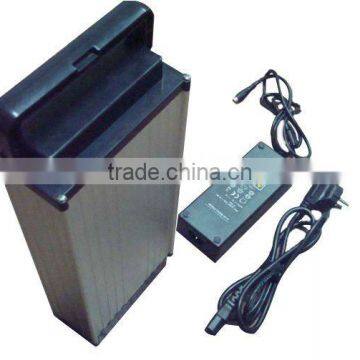

48V 10AH Rear rack battery for electric bicycleMaterial:LiFePO4
Dimention: 69*148*457mm
1.stable and safe
2.long cycle lif
48V 10AH Rear rack battery for electric bicycle
Material:LiFePO4
Dimention: 69*148*457mm
1.stable and safe
2.long cycle life
LiFePO4 battery specification:
Product specification parameter | ||
Model | F48/10 | |
Capacity(0.2 C5A) | 10Ah | |
Nominal Voltage | 48V | |
Charge Voltage | 55.5V | |
Discharge Cut-off Voltage | 30V | |
Standard charge current | 2A(0.2 C5A) | |
Max. continuous discharge current | 20A (2 C5A) | |
Max. pulse discharge current(≤1s) | 30A (3 C5A) | |
Battery Structure | 15S3P(Add PCM ) | |
Packaging Shell | Rear rack | |
Weight (Approx.) | 7±0.05kg | |
Dimensions(Approx.) | L457mm*W148mm*69mm | |
Impedance (Max, at 1000Hz) | 210mΩ±10 | |
Cycle Life(80DOD%) | ≥1000 times | |
Self-discharge Rate | ≤3% | |
Charge Method (CC/CV) | Standard | 0.2C5A×6.5 hr. |
Quick | 1 C5A×2.5 hr. | |
Operating Temperature | Charge | 0°C~45°C,32oF~113oF |
Discharge | -10°C~60°C, -4oF~149oF | |
Storage | -20°C~45°C, -4oF~113oF |
BMS Spec
1. Operating current: 10-20A
2. Peak current: 20-30A
3. Charge current: 2A
4. Over-voltage protection: 55.5V
5. Under-voltage protection: 30V
6. Over-temperature protection: 60°C
Charger Specification:
1. Output: 48V DC 2A
2. Input: 100-240VAC (As your country's standard)
Packing List:
1) 1pack 48V 10AhLiFePO4 Battery (Aluminum Alloy Shell)
2) 1pcs 48V 10A-20A BMS
3) 1pcs 48V2Amps Alloy Charger
4) Key and other parts
1. Features:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
7) Broad operating temperature range: discharge temperature: -20-60°c
24v, 36v, 48V battery with different capacity are available for E-bike, the battery can be customize per customer request.
If you have any question, please feel free to contact Coco Guo.
