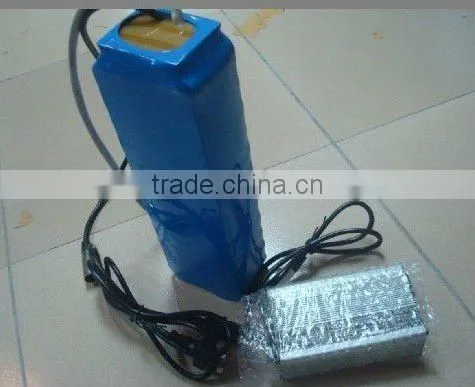

Electric Bicycle Battery 48V12AH

Product specification parameter

Model

LFP48V12AH

Capacity(0.2 C5A)

12Ah

Nominal Voltage

48V

Charge Voltage

58.4V

Discharge Cut-off Voltage

32V

Standard charge current

3A(0.2 C5A)

Max. continuous discharge current

12A (1 C5A)

Max. pulse discharge current(≤1s)

36A (3 C5A)

Battery Structure

16S4P(Add PCM)

Packaging Shell

None

Weight (Approx.)

6.5±0.05Kg

Dimensions(Approx.)

300*170*90mm

Impedance (Max, at 1000Hz)

100mΩ ±10

Cycle Life(80DOD%)

≥1200

Self-discharge Rate

≤3%

Charge Method (CC/CV)

Standard

0.2C5A×6.5 hr.

Quick

1 C5A×2.5 hr.

Operating Temperature

Charge

0°C~45°C, 32oF~113oF

Discharge

-10°C~60°C, -4oF~149oF

Storage

-20°C~45°C,-4oF~113oF
