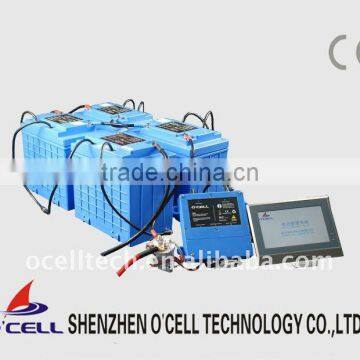

12V40Ah LiFePo4 Module

Specifications

12V40Ah LifePo4 module assembled with high power 3.2V8Ah cells(4S5P),enjoys wide varity applications with highest safty

O'CELL 12V40Ah LiFePo4 Module:

Usage Notes:

Our OL12V400F module, with nominal voltage of 12V and capacity of 40Ah is assembled with high power 3.2V8Ah LiFePo4 Cells(4S5P).It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.

Features:

a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.

c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

d. Good performance at high temperature and high temperature resistance

e. Low self-discharge rate, less than 3% monthly.

f.  No memory effects and highly efficient charge.

g. Environment friendly: Clean and Green energy poses no pollution on our environment.



Specification of 3.2V8Ah LiFePo4 Cell as follows:



Item	Unit	Specifications
Typical Capacity	Ah	8.0
Minimum Capacity	Ah	7.5
Nominal Voltage	Voltage	3.2
Dimension (L*W*H)	mm	33*57*74mm
Approx.Weight	g	350
Max. Charge Voltage	Voltage	3.6
Cut-Off Discharge Voltage	Voltage	2.5
Standard Charge Current	Amps	1.6
Rapid Charge Current	Amps	8.0
Continuous Discharge Current	Amps	24.0
Pulse Discharge Current(5S)	Amps	80.0
Storage Temperature Range	oC	-20oC--70oC
Working Temperature (Charging)	oC	-10oC--45oC
Working Temperature (Discharging)	oC	-20oC--60oC
Life Cycle(2C,80%DOD)		1000
Life Cycle(1C,80%DOD)		2000
Application	E-bike,E-Scooter,E-Wheelchair,E-motor,EV,E-Golf Car,E-Tour Car, Car Starter
