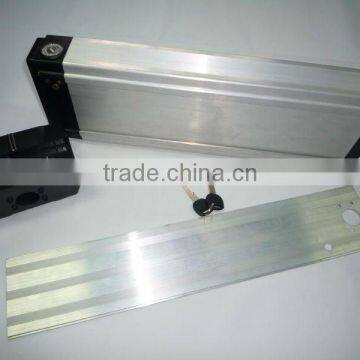

Electric bicycle battery 36V13AH LiFePO4 (Rear rack )
- 10000 Piece / Pieces per Month
- Shenzhen Hongkong
- T/T
- 36V10AH silver fish battery for electric bicycle
- 36V 9Ah Inframe-Mounted(bottle-shaped) Lithium Battery Pack
- lithium battery silver fish style 36V9AH
- 4U Storage Lithium LiFePO4 48V 100Ah Battery Pack + BMS
- 48V 50Ah Lithium Iron Phosphate (LiFePO4) battery pack for solar energy storage system
- 48V 50Ah 2.4kWh LiFePO4 battery pack for telecom base station
Product Details
Type: | Lithium Battery | Voltage: | Other, 36v, 36V | Capacity: | 10 - 20Ah |
Packaging Details
Standard export package
Product Description
Specifications
36V13AH Rear rack battery for electric bicycleMaterial:LiFePO4
Dimention: 56*150*510mm
1.stable and safe
2.long cycle lif
36V13AH Rear rack battery for electric bicycle
Material:LiFePO4
Dimention: 56*150*510mm
1.stable and safe
2.long cycle life
LiFePO4 battery specification:
Product specification parameter | ||
Model | F36/13 | |
Capacity(0.2 C5A) | 13Ah | |
Nominal Voltage | 36V | |
Charge Voltage | 44.4V | |
Discharge Cut-off Voltage | 24V | |
Standard charge current | 2A(0.2 C5A) | |
Max. continuous discharge current | 10A (2 C5A) | |
Max. pulse discharge current(≤1s) | 30A (3 C5A) | |
Battery Structure | 12S4P(Add PCM ) | |
Packaging Shell | Rear rack | |
Weight (Approx.) | 7±0.05kg | |
Dimensions(Approx.) | L510mm*W150mm*56mm | |
Impedance (Max, at 1000Hz) | 210mΩ±10 | |
Cycle Life(80DOD%) | ≥1000 times | |
Self-discharge Rate | ≤3% | |
Charge Method (CC/CV) | Standard | 0.2C5A×6.5 hr. |
Quick | 1 C5A×2.5 hr. | |
Operating Temperature | Charge | 0°C~45°C,32oF~113oF |
Discharge | -10°C~60°C, -4oF~149oF | |
Storage | -20°C~45°C, -4oF~113oF |
BMS Spec
1. Operating current: 10-20A
2. Peak current: 20-30A
3. Charge current: 2A
4. Over-voltage protection: 44.4V
5. Under-voltage protection: 24V
6. Over-temperature protection: 60°C
Charger Specification:
1. Output: 36V DC 2A
2. Input: 100-240VAC (As your country's standard)
Packing List:
1) 1pack 36V 12AhLiFePO4 Battery (Aluminum Alloy Shell)
2) 1pcs 44.4V 10A-20A BMS
3) 1pcs 36V2Amps Alloy Charger
4) Key and other parts
1. Features:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
7) Broad operating temperature range: discharge temperature: -20-60°c
24v, 36v, 48V battery with different capacity are available for E-bike, the battery can be customize per customer request.
