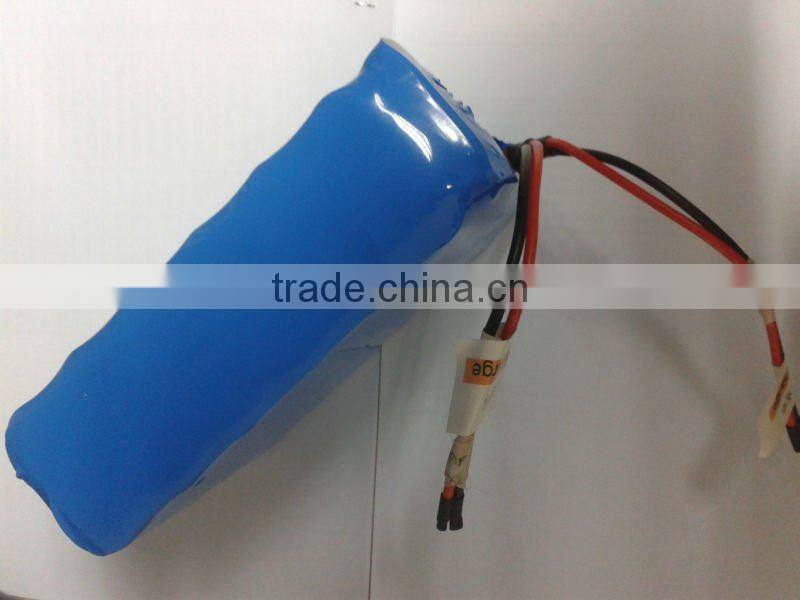

Help CenterRechargeable Battery 24V10AH Lithium/lifepo4 Battery Pack
Related Products
-
Lithium Iron Phosphate Battery 36V16AhNegotiableMOQ: 1 Pack -
E-bike 36V12AH Lithium Battery Pack (UL Approved Cell)NegotiableMOQ: 1 Pack
-
LiFePO4 36V10AH Battery Pack for 250W E-bikeNegotiableMOQ: 1 Pack
-
Electric Vehicle Lithium Battery 36V10AHNegotiableMOQ: 1 Pack
-
12V40Ah LiFePo4 ModuleNegotiableMOQ: 1 Set
Specifications
Lithium battery pack 24V10AH.Voltage: 24V
Capaity: 10AH
Structure: 8S3P
good performance
Lithium battery pack 24V10AH.
Voltage: 24V
Capaity: 10AH
Structure: 8S3P
good performance
Product specification parameter | ||
Model | LFP24V10AH | |
Capacity(0.2 C5A) | 10Ah | |
Nominal Voltage | 24V | |
Charge Voltage | 29.6V | |
Discharge Cut-off Voltage | 20V | |
Standard charge current | 2A(0.2 C5A) | |
Max. continuous discharge current | 10A (1 C5A) | |
Max. pulse discharge current(≤1s) | 30A (3 C5A) | |
Battery Structure | 8S3P(Add PCM) | |
Packaging Shell | None | |
Weight (Approx.) | 3±0.05Kg | |
Dimensions(Approx.) | 60*140*180mm | |
Impedance (Max, at 1000Hz) | 100mΩ ±10 | |
Cycle Life(80DOD%) | ≥1200 | |
Self-discharge Rate | ≤3% | |
Charge Method (CC/CV) | Standard | 0.2C5A×6.5 hr. |
Quick | 1 C5A×2.5 hr. | |
Operating Temperature | Charge | 0°C~45°C.32oF~113oF |
Discharge | -10°C~60°C,-4oF~149oF | |
Storage | -20°C~45°C,-4oF~113oF | |
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature and high temperature resistance
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects and highly efficient charge.
g. Environment friendly: Clean and Green energy poses no pollution on our environment
We could customize the current according to your request.
The input plug can be choosed by your preference.
Any question, please contact Coco Guo for help!
