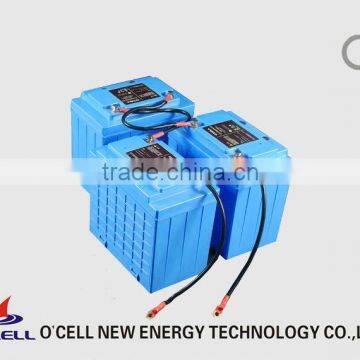

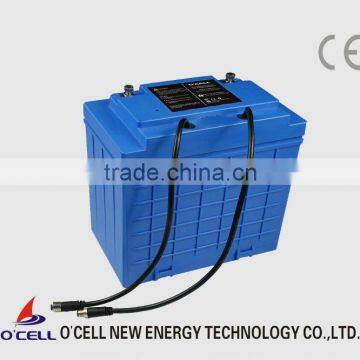

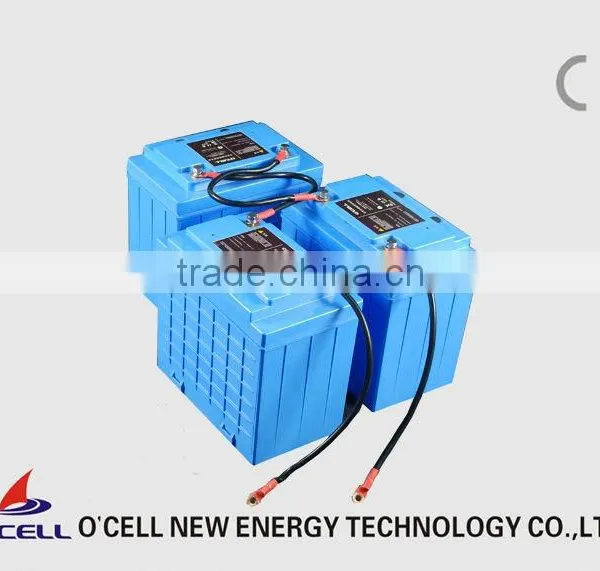

lifepo4 36v battery for home energy storage system storage system
OCELL LiFePO4 battery pack Usage Note:
3 pcs 12V110Ah module in series per 36V110Ah system.
The module is assembled with LiFePO4 cells(26650 ;33P4S).
It can be used individual and can be contacted in series or parallel achieve to given voltage and capacity.
Feature:
1) Safety .
2) Environment friendly.
3) CE and ROHS certification.
4) Good performance at cycle life.
5) CAN2.0&RS485 communication(either-or).
6) Lighter weight compareed to the same specifications of other EV batteries.
| Item | Unit | Specification |
| Nominal voltage | Volt | 38.4 |
| Nominal capacity | Ah | 110 |
| Dimension | mm | 420*418*246mm |
| Cut-off discharge voltage | volt | 30 |
| Cut-off charge voltage | volt | 43.8 |
| Working Voltage range | volt | 30-40.8 |
| Max continuous discharge current | amps | 110 |
| Peak discharge current | amps | 220 |
| Max continuous output power | watts | 3000 |
| Peak output power | watts | 8400 |
Standard charge current | amps | 60 |
| Max charge current | amps | 110 |
Charge time | hours | approach 7h at 20A |
Charger recommend | NA | DC43.8V20A-60A |
Communication | NA | CAN2.0&RS485 |
Life cycle(80%DOD) | times | 1000 |
Working temperature (charge) | °c | 0°c-45°c |
Working temperature (discharge) | °c | -10°c-50°c |
| Relative humidity | N/A | 50%-75% |
| Warranty | Year | 1 |
We are trying our best to satisfy each potential customer with tailor-made proposals which includes not only the products but also know-how delivery, operators training and technical support.
We promise a very sincere response to each of your enquiry
