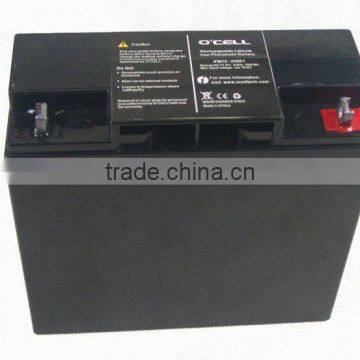

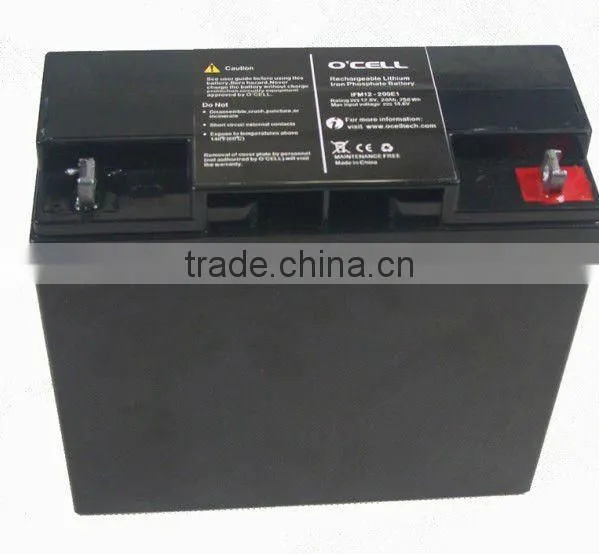

OCELL Lithium Deep Cycle battery 12V20Ah LiFePO4 Battery Pack for Portable Power
- 20000 Pack / Packs per Month
- SHENZHEN HK
- T/T L/C D/P D/A Credit Card PayPal
- OCELL Lithium Deep Cycle battery 12V110Ah LiFePO4 Battery Pack for Portable Power
- 2016 hot OCELL Lithium Deep Cycle battery 12V40Ah LiFePO4 Battery Pack for Portable Power
- 9ah 12V rechargeable lithium ion battery with fuel guage
- 12V LiFePO4 battery pack 9Ah with fuel guage for UPS lead acid battery replacement
- 12V20Ah LiFePO4 Battery for Golf Trolley 36 holes
- LiFePO4 battery 12V12Ah with SLA casing for solar light
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OCELL | Model Number: | 12V 20ah |
Composed Type: | Other, IFR26650 | Type: | Li-Ion | Components: | Other, LIFEPO4 |
Size: | 180*78*160mm | Voltage: | 12V power craft | Weight: | 4kg |
Nominal Capacity: | 20Ah | Application: | Golf Cart |
Packaging Details
standard package for lithium batteries
Product Description
OCELL Lithium Deep Cycle Batteries:
LiFePO4 battery 12V 20Ah for Portable Power for golf trolley
OCELL Lithium Deep Cycle Batteries, using Lithium Iron Phosphate (LiFePO4) technology offer excellent weight saving within the same footprint as industry standard lead acid (VRLA) alternatives. The internal management system allows them to be used as an alternative to AGM or GEL batteries with minimal changes. LiFePO4 is also an intrinsically safer chemistry with improved safety compared to other lithium options.
The integrated management system monitors the current, voltage and temperature of the battery and the cells. When the battery is used outside of the recommended operating parameters it will react and isolate the battery from the system maintaining safety. When the source of the error is removed the system resets so that the battery can be used again.
Benefits
- Between a half and a third lighter than VRLA
- Very high cycle life compared to VRLA
- Integrated battery management including cell balancing
- Fast recharge and superior cycle performance
- Robust, sealed construction, no maintenance
- Industry standard sizes
- UL Certified Cells
Applications
- Portable Power
- Auxiliary Vehicle Power
- Marine
- Solar Power / Renewable Power
- Defence
- Medical Carts
- Environmental Control Back-up Systems
- Golf trolley
Internal Battery Protection
- Over charge protection
- Over discharge protection
- Over current protection
- Temperature protection
- Cell balancing function
Transportation
To be shipped as Class 9 Hazardous Goods,
however please contact OCELL team for more information via sales11 AT
Item | Unit | Specifications |
Typical Capacity | Ah | 20.0Ah |
Minimum Capacity | Ah | 19.5Ah |
Nominal Voltage | Voltage | 12.8V |
Approx.Weight | Kg | 4kgs |
Max. Charge Voltage | Voltage | 14.6V |
Cut-Off Discharge Voltage | Voltage | 10V |
Standard Charge Current | Amps | 4A |
Rapid Charge Current | Amps | 10A |
Continuous Discharge Current | Amps | 20A max. |
Pulse Discharge Current(5S) | Amps | 30A |
Storage Temperature Range | oC | -20oC--60oC |
Working Temperature (Charging) | oC | 0oC--45oC |
Working Temperature (Discharging) | oC | -20oC--60oC |
Application | Portable Power,Scooter,Wheelchair,Golf Car,Medical cart |
It is CRITICAL that you determine your device polarity before using the battery and connect to the battery correctly in polarity. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT!
Replacement Batteries, Wheelchair Batteries, Emergency Lighting Batteries, Motorcycle Batteries, Floor Scrubber Batteries, Power Sport Batteries, Golf Cart Batteries, Farm/Lawn Garden Batteries, Renewable Energy Batteries, Automotive Batteries, Commercial Batteries, Lithium Batteries, Solar Batteries,LiFePO4 batteires
Company Profile
O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc.
O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.
O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
