Home > Electrical & Electronics > Battery, Storage Battery & Charger > Battery Pack > 12V 33Ah Lithium LiFePO4 Battery Pack With Built-in Smart Protection Circuit Board

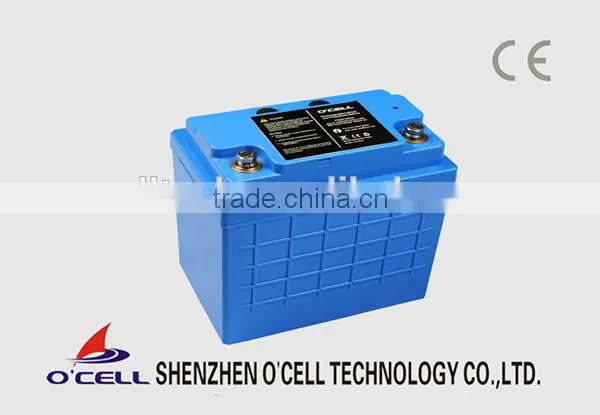

12V 33Ah Lithium LiFePO4 Battery Pack With Built-in Smart Protection Circuit Board

Name: 12V 33Ah Lithium LiFePO4 Battery Pack With Built-in Smart Protection Circuit Board
Brand: O'CELL
SKU: 143101448
Availability: InStock

Ocell New Energy Technology Co., Ltd. Gold Verified Supplier

5Yrs

12V 33Ah Lithium LiFePO4 Battery Pack With Built-in Smart Protection Circuit Board thumbnail-1

12V 33Ah Lithium LiFePO4 Battery Pack With Built-in Smart Protection Circuit Board photo-1

US$ 1 - 999 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

O'CELL

Model Number:

IFM12-330P1-01E

Composed Type:

Other, 4S30P

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name O'CELL

Model Number IFM12-330P1-01E

Composed Type Other, 4S30P

Type Li-Ion

Components Other, IFR18650PC-1.1Ah

Size 195*130*183mm

Voltage 12.8V

Weight 6.1Kg

Nominal Capacity 33Ah

Application Electric Vehicle

1. Specification

Nominal Voltage: 12.8V
Rated Capacity: 33.0Ah
Cycle Life: higher than 60% of the initial capacity of the cells. Carry out 2000 cycles.
Discharge Cut-Off Voltage: 10.0V
Charging Cut-Off Voltage: 14.6V
Cell and Assembly Method: IFR18650PC-1.1AH, 4S30P
Housing Material: ABS+PC housing
Maximum Charge Current: 120A
Continuous Discharge Current: 120A
Charge Temperature Range: 0~45°C
Discharge Temperature Range: -20~60°C
Weight: 6.10Kg
Max. Dimension: 195*130*183mm

2. Supplementary Explanation

Charge Protection: When the Battery Modules are charged to full, they will communicate with BMS, and the BMU has the capacity to turn off the charger or open the main contactor. The battery module itself does not have any switch to disconnect the charger.
Balancing: The intra-module balancing circuit is used to compensate slight capacity imbalance among the four cell blocks within a battery module.
State of Charge (SOC) Measurement: Individual cell block voltage and charge/discharge current will be used to monitor the state of charge (SOC) of the battery module. The estimate capacity used for the calculations will be adjusted to meet the capacity of the lowest capacity cell block when the battery system is fully cycled. The state of charge will be adjustable for normal self discharge of the battery system when the unit is not on charging.
RS-485 Communication Uplink: RS-485 Communications will be used to communicate with the Battery Management Unit (BMU) or connection to other battery Modules.
RS-485 Communication Downlink: RS-485 Communication connection from Downstream battery module.
RS-485 insulation voltage rating: 1414V, 5000V rms for 1 minute
Status LED: A Dual LED on module to indicate working status. One is green and the other one is red. Blinking of the green LED indicates that the module is working properly. Blinking of the red LED indicates that the module has failure and needs service.

3. Period of Warranty

The period of warranty is 18 months from the date of shipment. O'CELL guarantees to give a replacement in case of the battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Design Life: 7-10 years.

4. Terms of Payment

T/T, L/C, Western Union, MoneyGram and Paypal is acceptable.
30%/70%.
