Product Application

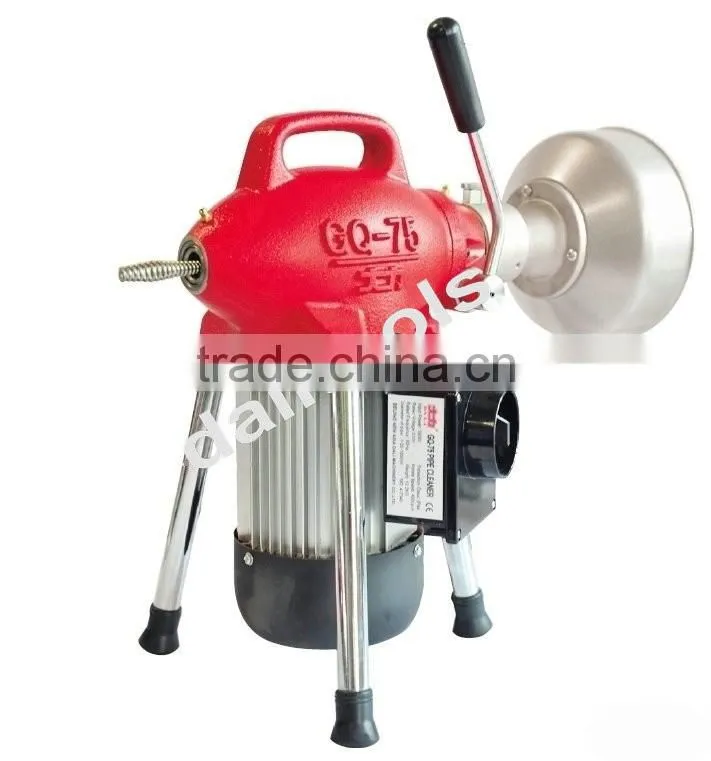

GQ-75 Drain Cleaning Machine is considered by Professional Plumbers to be the perfect all around Sink, Shower, and Floor Drain machine. This Compact Versatile machine is capable of using 5/16" and 5/8" Cables. It cleans drains from 3/4" up to 4" and runs up to 100 feet so it will tackle any job.
1) Compact, versatile, professional’s machine,Easy to transport, ideal for mobile use.
2) Capable of running three different size cables: 8mm, 15mm and16mm.
3) The machine is driven by a 390W motor that has a grounded electrical system.
4) A toggle switch provides FORWARD/OFF/REVERSE control of the motor.
5) Stable three point edition (rubber feet).Deep-seated main emphasis (engine) for safe stand during the business
Using Φ16mm Sectional Cables
The GQ-75 is designed to use 5/8″diameter sectional-type cable that has a quick change coupling system for disconnecting tools. The cable is manually fed in and out of the drain and rotates at a speed of 400 RPM. The rotation of the cable is controlled by a clutch handle. The cable stops instantly when the clutch handle is released.
To Couple Cable and Tools
Push the drill along 670 slider slot of the shaft to engage. This makes connection more reliable, easy and fast.
To Uncouple Cable and Tools
Insert the key and push the shaft with both hands in direction opposite to the T slot of the terminal to remove the shaft. It saves time and manpower.
Using Φ8mm soft shaft Combination
The GQ-75 is also designed to use with the Φ8mm soft shaft Combination. Rotation of the adapters is controlled by the clutch handle. the length of the cable 4.6M,It can be use alone in pipes of 20mm-50mm in diameter, especially suitable for small diameter pipes or complex pipes like traps.

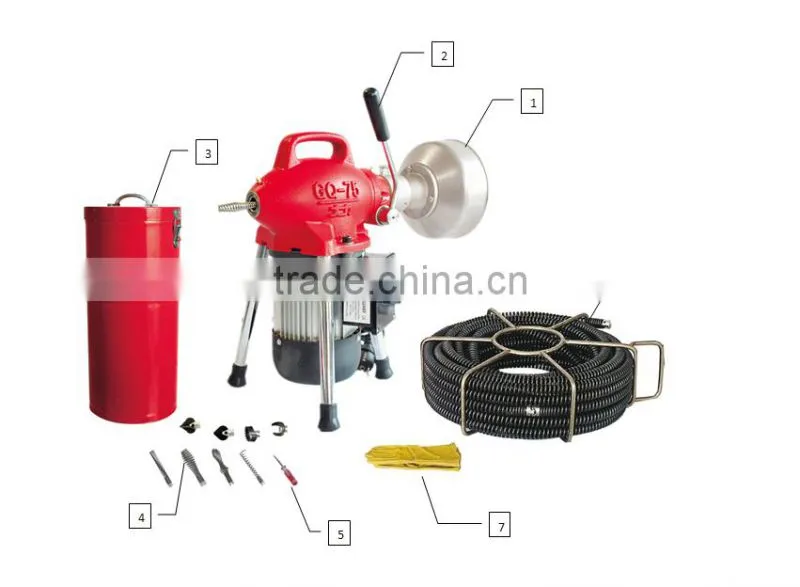

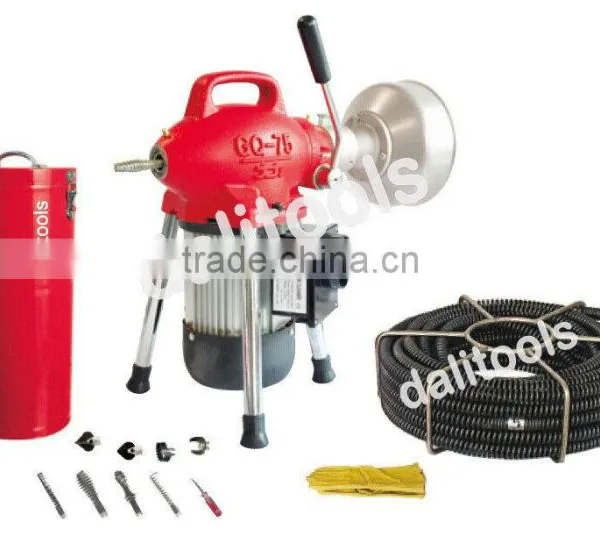

1. 15Ft Long with 8mm diameter cleaning cable, for 1in-2in pipes.
2. Main Machine with 390w motor.weight 12.3kg.
3. Accessory barrel; container for gimlets, cutters and 15Ft long clearing cable.
4. 8 pieces 16mm diameter drills; cutter, retrieving gimlets and others ( see their uses in next table)
5. Key, use it for changing accessories.

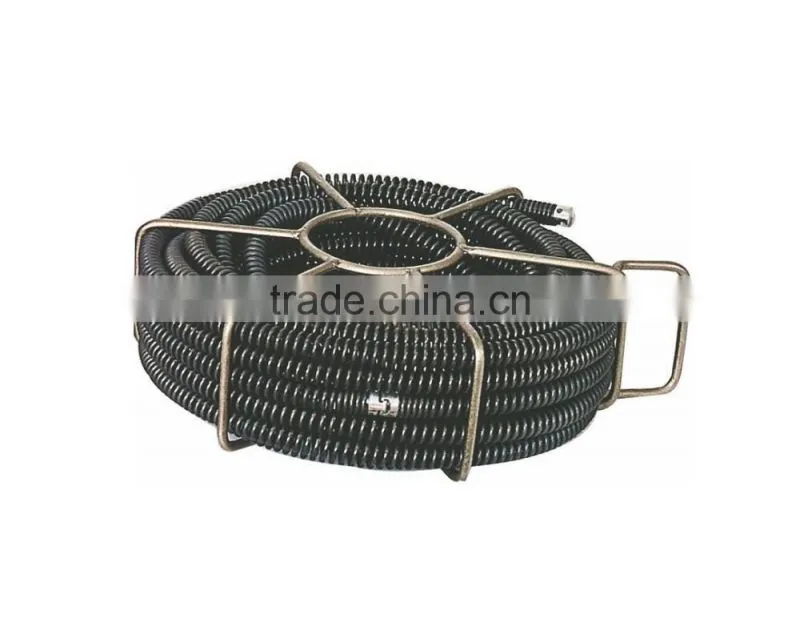

6. 18.4M long with 16mm diameter cleaning cable. for 1-1/2in-4in pipes.
7. Protection gloves

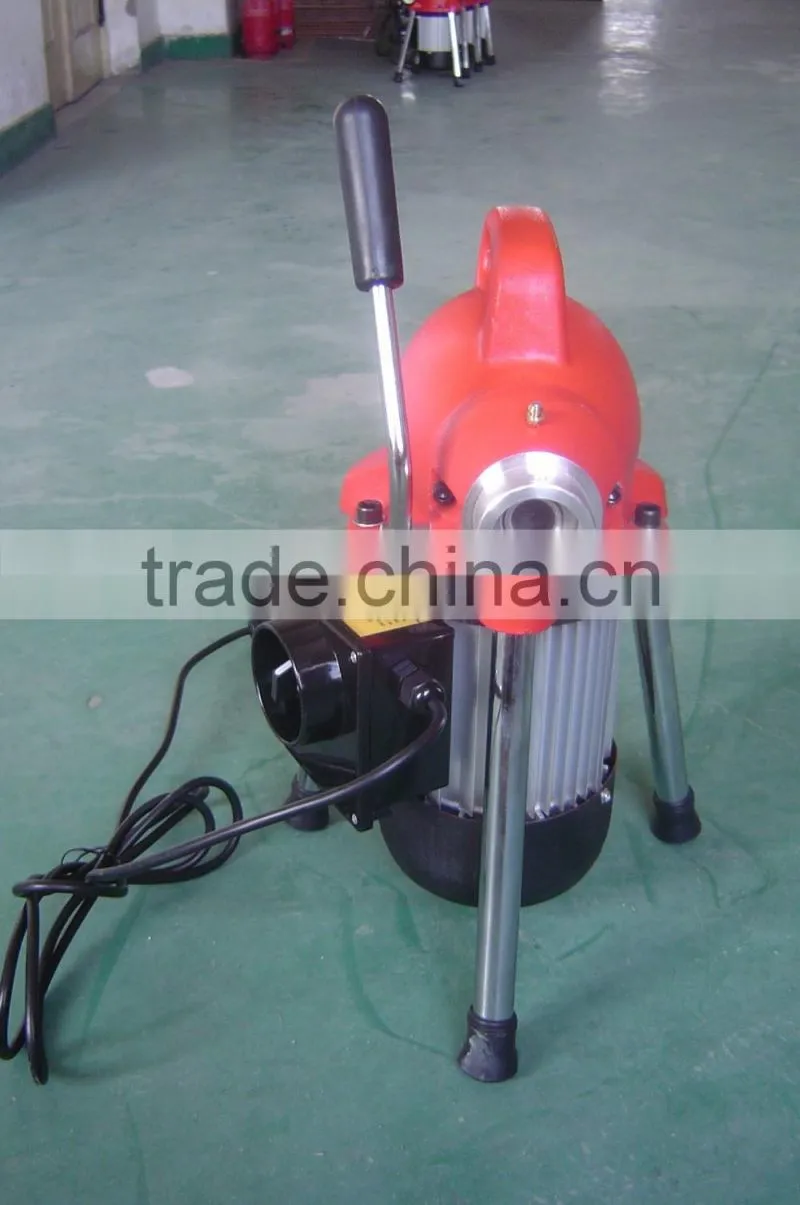

The right side of the machine.

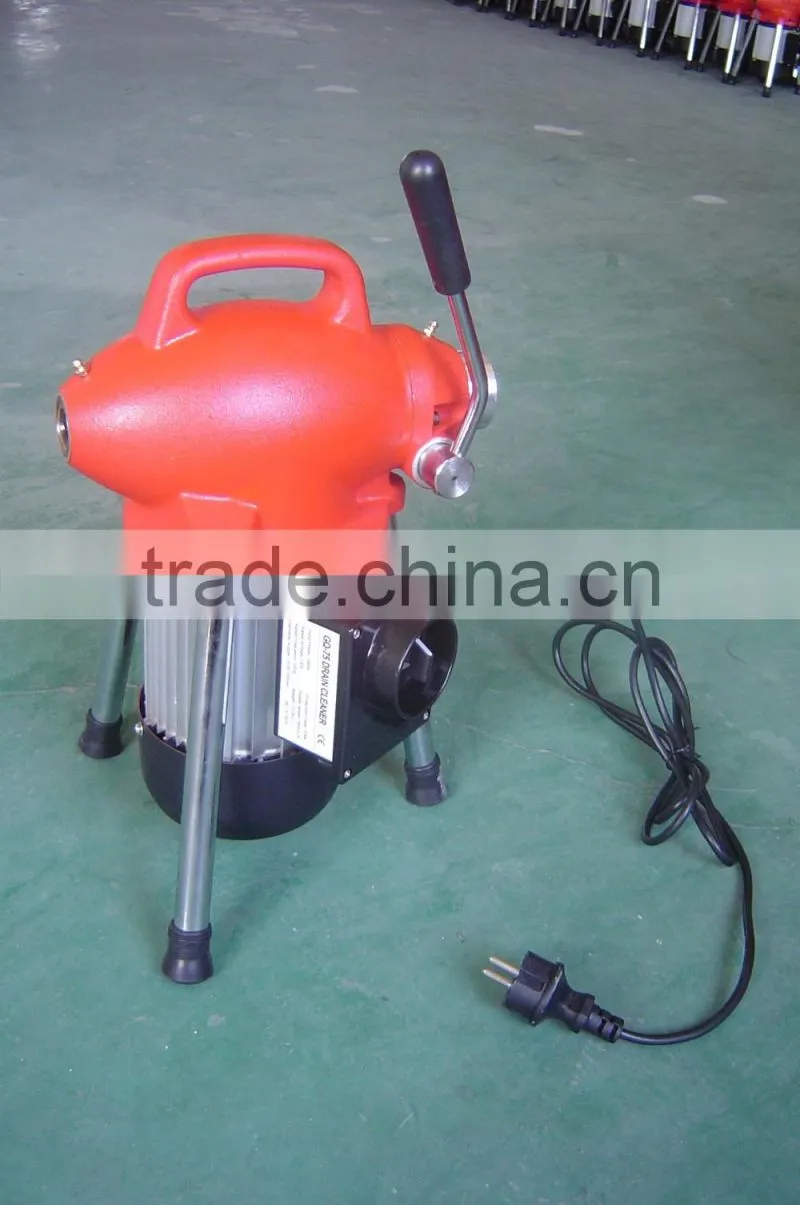

The left side of the machine.

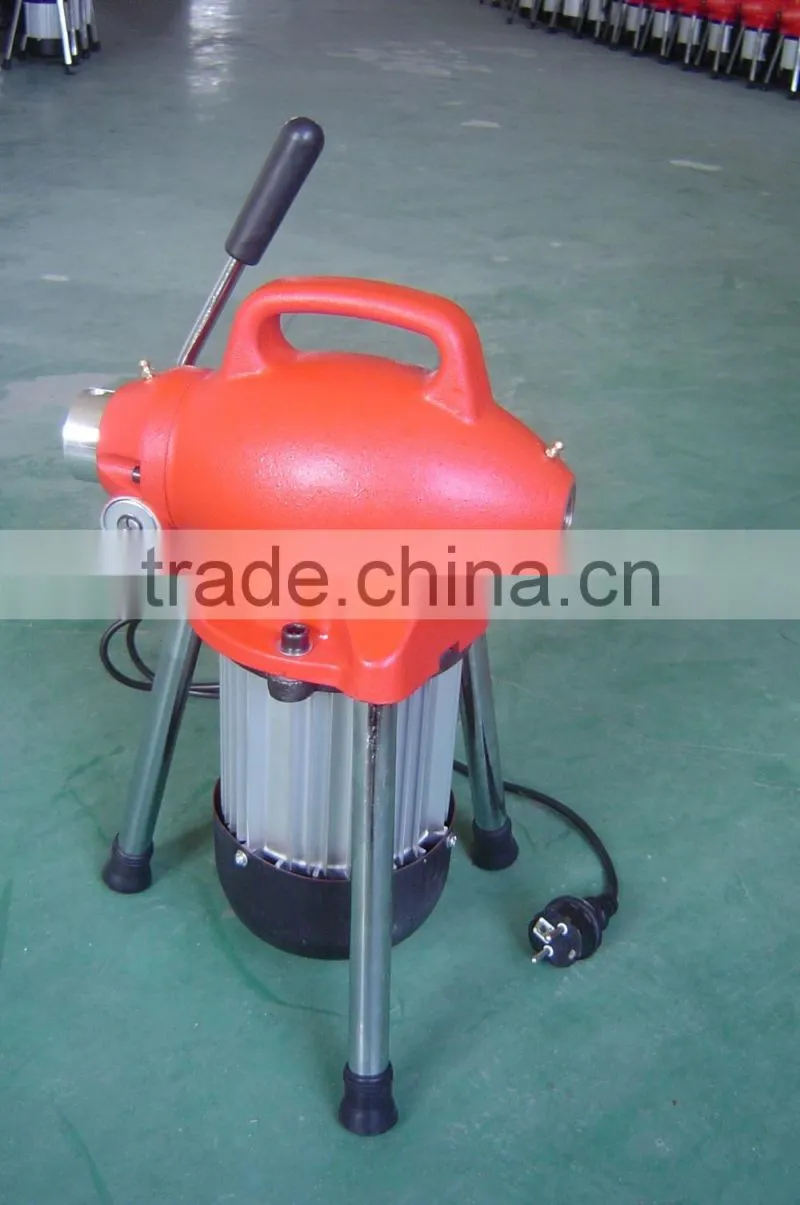

The rear of the machine.
GQ-100 Drain Cleaner
98.8% Response Rate
D-150 Drain Cleaning Machine
99.7% Response Rate
D-200-1 Drain Cleaner
98.9% Response Rate
The DALI drain cleaner series are applicable to removal of various blockages of pipelines. The series adopt flexible shafts,the combination of high-speed rotating system and manual propelling or automatic feeding system to drive the drill to remove effectively various debris,greases,roots,wastes and chemical deposits etc.stuck on pipeline wlls.
The DALI drain cleaner series including hand ,power type,automatic and pneumatic types,are the choice machines for maitaining and cleaning both indoor and outdoor pipelines.they are selling well both in China and others countries with superb quality and reasonable price
