Specifications
SR16 Series-- 16v PPTC is radial leaded device is designed to provide over current protection for USB applications
Features
• ROHS compliant and lead&Halogen-Free
• Fast time-to-trip
• Meets all USB protection requirements
• Operating voltages of 16V; maximum current:40A
• Overcurrent and overtemperature protection of automotive electronic
Applications
• Computers & peripheral, PC Mother board
• Telecom equipment, Loud speakers
• Battery packs, Battery Charger, Transformers
• Toys, Motors

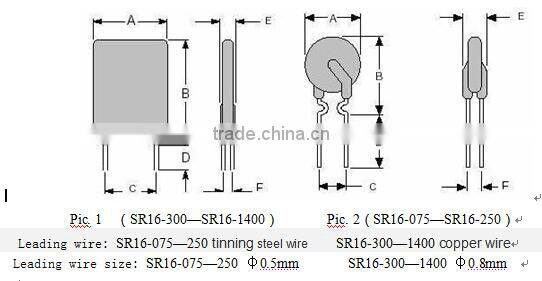

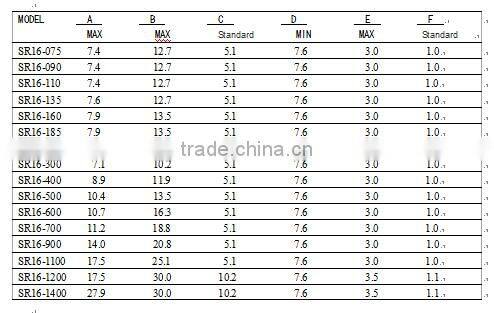

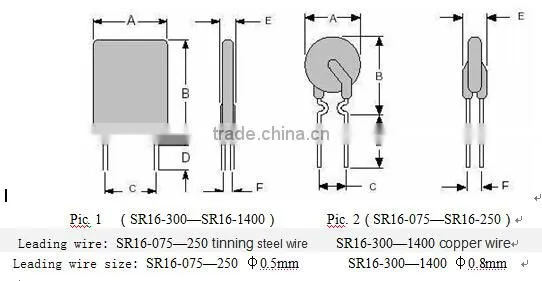

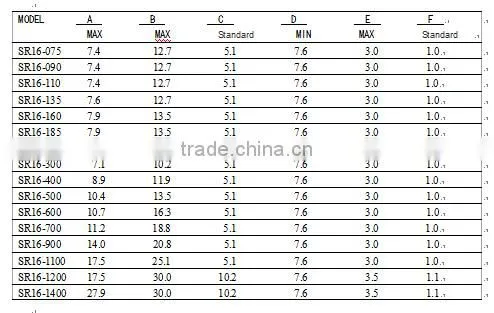

Dimension
Electrical specification(20℃)
IH=Hold current: maximum current at which the device will not trip at 25°C still air.
IT=Trip current: minimum current at which the device will always trip at 25°C still air.
Vmax=Maximum voltage device can withstand without damage at rated current.
Imax=Maximum fault current device can withstand without damage at rated voltage.
Ttrip=Maximum time to trip(s) at assigned current.
Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin=Minimum device resistance at 25°C prior to tripping.
Rmax=Maximum device resistance at 25°C prior to tripping
working temperature : –20℃-85℃ .
