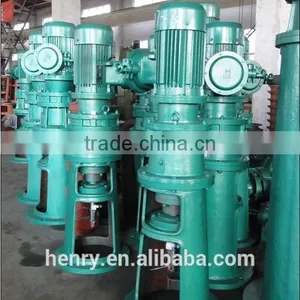

electric motor with cycloidal pinwheel speed reducer
USD $500 - $5,000
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- nangjing shanghai port
- T/T
You May Like
Product Details
| Gearing Arrangement | Cycloidal | Output Torque | 25 to 29400 | |
| Rated Power | 0.18KW TO 75KW | Input Speed | 1000RPM,1500RPM0 | |
| Output Speed | .2 TO 167 | Place of Origin | Jiangsu, China | |
| Model Number | B,X series | Brand Name | CW |
Product Description
Product Description
B,X series cycloidal pinwheel speed reducer :
- short spoke cycloid , hardened .
- High speed ratio and efficiency .
Compact structure, small size .
Reliable in operation and long service life .
Overload ability, impact resistance and small Inertia moment .
Reducer include three part structures :input part ( motor )+ cycloidal pinwheel speed reducer + output part:
Technical Data:
| Type | stage | Model | Ratio | Nominal Power (KW) | Nominal Torque(N.m) |
| X/B Series Cycloidal Reducer | single reducer | B09/X1 | 9-87 | 0.55-0.18 | 26-50 |
| B0/X2 | 1.1-0.18 | 58-112 | |||
| B1/X3 | 0.55-0.18 | 117-230 | |||
| B2/X4 | 4-0.55 | 210-400 | |||
| B3/X5 | 11-0.55 | 580-1010 | |||
| B4/X6/X7 | 11-2.2 | 580-1670 | |||
| B5/X8 | 18.5-2.2 | 1191-3075 | |||
| B6/X9 | 15-5.5 | 5183-5605 | |||
| B7/X10 | 11-45 | 7643 | |||
| Type | stage | Model | Ratio | Nominal Power (KW) | Nominal Torque(N.m) |
| X/B Series Cycloidal reducer | Double reducer | B10/X32 | 99-7569 | 0.37-0.18 | 175 |
| B20/X42 | 1.1-0.18 | 600 | |||
| B31/X53 | 2.2-0.25 | 1250 | |||
| B41/X63 | 2.2-0.25 | 1179-2500 | |||
| B42/X64 | 4-0.55 | 2143-2500 | |||
| B52/X84 | 4-0.55 | 2143-5000 | |||
| B53/X85 | 7.5-0.55 | 5000 | |||
| B63/X95 | 7.5-0.55 | 5893-8820 | |||
| B74/X106 | 11-2.2 | 11132-12000 | |||
| B84/X117 | 11-2.2 | 11132-16000 | |||
| B85/X118 | 15-2.2 | 16430-21560 | |||
| B95/X128 | 15-2.2 | 29400 |
