B,X Series Cycloidal Pinwheel Speed Reducer

Suzhou Zhongxiang Imp. & Exp. Co., Ltd.
B,X Series Cycloidal Pinwheel Speed Reducer thumbnail-1
B,X Series Cycloidal Pinwheel Speed Reducer thumbnail-2
B,X Series Cycloidal Pinwheel Speed Reducer photo-1
B,X Series Cycloidal Pinwheel Speed Reducer photo-2
US$ 500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Gearing Arrangement:
Cycloidal
Output Torque:
25 to 29400
Rated Power:
0.18KW TO 75KW
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
nangjing shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Cycloidal
Output Torque 25 to 29400
Rated Power 0.18KW TO 75KW
Input Speed 1000RPM,1500RPM
Output Speed 0.2 TO 167RPM
Place of Origin Jiangsu, China
Model Number B,X series
Brand Name CW



Product Description



B,X series cycloidal pinwheel speed reducer :
  •   short spoke cycloid , hardened .
  • High speed ratio and efficiency .

  • Compact structure, small size .

  • Reliable in operation and long service life .

  • Overload ability, impact resistance and small Inertia moment .

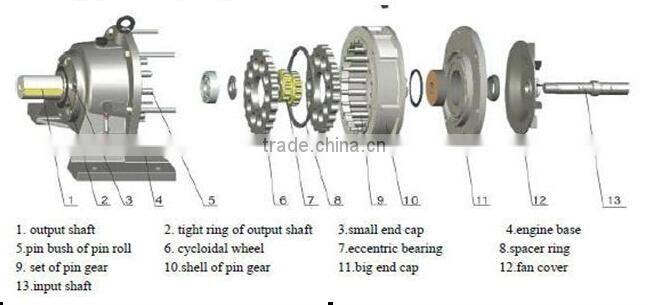

Reducer  include three part structures :input part ( motor )+ cycloidal pinwheel speed reducer  + output part:

B,X series cycloidal pinwheel speed reducerB,X series cycloidal pinwheel speed reducer



Technical Data:

TypestageModelRatioNominal Power (KW)Nominal Torque(N.m)
X/B Series Cycloidal Reducersingle reducerB09/X19-870.55-0.1826-50
B0/X21.1-0.1858-112
B1/X30.55-0.18117-230
B2/X44-0.55210-400
B3/X511-0.55580-1010
B4/X6/X711-2.2580-1670
B5/X818.5-2.21191-3075
B6/X915-5.55183-5605
B7/X1011-457643
TypestageModelRatioNominal Power (KW)Nominal Torque(N.m)
X/B Series  Cycloidal reducerDouble reducerB10/X3299-75690.37-0.18175
B20/X421.1-0.18600
B31/X532.2-0.251250
B41/X632.2-0.251179-2500
B42/X644-0.552143-2500
B52/X844-0.552143-5000
B53/X857.5-0.555000
B63/X957.5-0.555893-8820
B74/X10611-2.211132-12000
B84/X11711-2.211132-16000
B85/X11815-2.216430-21560
B95/X12815-2.229400





Packaging & Shipping

 B,X series cycloidal pinwheel speed reducer





Our Services

 OEM or ODM are available
