sinotruk howo a7 tractor head truck 4x2 /euro3 for sale
detailed paremeter:
Truck model | ZZ4187M3517N1B/T2PA | ZZ4187N3517N1B/N2PA | ZZ4187N3517N1B/S2PA | ZZ4187N3517N1B/S2PC | ZZ4187V3517N1B/V2PC | |
cab | Type | A7-P | ||||
style | High floor and lengthen cab, single sleeper, the air suspension seat, adjustable steering wheel, air conditioning heater, | |||||
Engine | type | D10.30 | D10.34 | D10.38 | D12.38 | D12.42 |
Rated power kW/rpm
| 221/1900 | 249/1900 | 279/2000 | 279/2000 | 309/2000 | |
Max torque Nm/rpm | 1340/1200-1500 | 1490/1200-1500 | 1590/1200-1500 | 1650/1100-1500 | 1820/1100-1500 | |
emission L | 9.726 | 9.726 | 9.726 | 11.596 | 11.596 | |
Style | In-line, six clyinder engine, inter-cooling, supercharger in the middle, | |||||
Clutch | The engine likeD10.38, D12.38 and D12.42 used 430A, D10.34 used 430B, D10.30 used 430C | |||||
transmmision | SINOTRUK HW SERIES 10 transsimision, the structure of main and vice box, D10.30 and D10.34 with HW15710, D10.38 and D12.42 with HW19710 | |||||
Front axle | HF7, rated weitht 7 t, the style of disk or drum | |||||
Rear axle | HW1667 (3.73, optional 4.22); besides ZZ4187V3517N1B/V2Pcyou can thoose ST16(3.93; optional 4.42; 4.8) | |||||
suspension | steel spring, damper, anti-roll bar in front/rear suspension | |||||
Steering system | ZF8098steering gear box, Zfsteering oil pumpe, system pressure18MPa | |||||
Electric system | CAN, voltage: 24V; engine: 1540W; starter: 7.5kW ; accumulater: 12V/165Ah, 2 | |||||
Tyre | 315/80R22.5; optional 12.00R20 | |||||
Fuel tank capacity L | Standard 400L, optional 600L | |||||
Curb weight kg | 6800 | 6800 | 6800 | 6800 | 6800 | |
Gvw kg | 18000 | 18000 | 18000 | 18000 | 18000 | |
Trailer total quality kg | 35000 | 35000 | 35000 | 35000 | 35000 | |
Max load of saddle kg | 11070 | 11070 | 11070 | 11070 | 11070 | |
Dimension(length x widthx) mm | 6160x2496x3560 | 6160x2496x3560 | 6160x2496x3560 | 6160x2496x3560 | 6160x2496x3560
| |
Wheel base mm | 3500 | 3500 | 3500 | 3500 | 3500 | |
Front/rear overhang mm | 1540/1120 | 1540/1120 | 1540/1120 | 1540/1120 | 1540/1120 | |
Truck(fronty/rear mm | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | |
Min ground clearance mm | 268 | 268 | 268 | 268 | 268 | |
Approaching/departure angle | 15/38 | 15/38 | 15/38 | 15/38 | 15/38 | |
Max speed km/h | 101 | 101 | 101 | 101 | 101 | |
Max grade ability % | 26 | 29 | 31 | 33 | 37 | |
Min turning diameter m | 14 | 14 | 14 | 14 | 14 | |
Saddle grounclearance (empty/full) mm mm | 1325/1218 | 1325/1218 | 1325/1218 | 1325/1218 | 1325/1218 | |
Front/rear turning radius mm | 1950/1860 | 1950/1860 | 1950/1860 | 1950/1860 | 1950/1860 | |
Traction pin specifications | 50#(2hour | 50#(2hour | 50#(2hour | 50# (2 hours | 50# ( 2hour | |

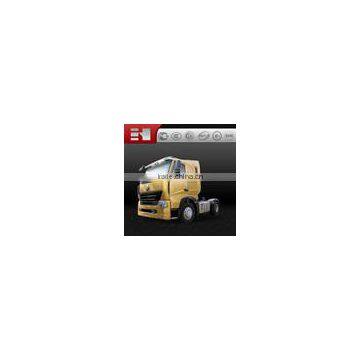

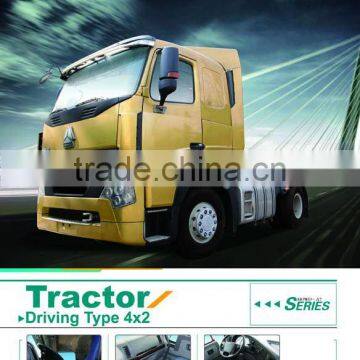

some pictures of the truck:
Jinan Sinoauto Heavy Duty Truck Sales Co., Ltd.
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), and spare parts for them. At the same time, we are always glad to provide professional suggestion for your orders,related technical support, and perfect after-sales services.
you can contact us by:
We sincerely hope to cooperate with you to expand market in your country!
