sinotruck howo a7 tractor truck 4x2 euro 4 low price for sale
detailed paremeter:
Truck model |
ZZ4187M3517N1B/T2GA |
ZZ4187N3517N1B/N2GA |
ZZ4187N3517N1B/S2GA |
ZZ4187N3517N1B/S2GC |
||
|
cab |
Type |
A7-G |
||||
style |
High floor and lengthen cab, single sleeper, the air suspension seat, adjustable steering wheel, air conditioning heater, |
|||||
|
Engine |
type |
D10.30 |
D10.34 |
D10.38 |
D12.38 |
|
|
Rated power kW/rpm
|
221/1900 |
249/1900 |
279/2000 |
279/2000 |
||
Max torque Nm/rpm |
1340/1200-1500 |
1490/1200-1500 |
1590/1200-1500 |
1650/1100-1500 |
||
emission L |
9.726 |
9.726 |
9.726 |
11.596 |
||
Style |
In-line, six clyinder engine, inter-cooling, supercharger in the middle, |
|||||
Clutch |
The engine likeD10.38, D12.38 and D12.42 used 430A, D10.34 used 430B, D10.30 used 430C |
|||||
transmmision |
SINOTRUK HW SERIES 10 transsimision, the structure of main and vice box, D10.30 and D10.34 with HW15710, D10.38 and D12.42 with HW19710 |
|||||
Front axle |
HF, rated weitht 7 t, the style of disk or drum |
|||||
Rear axle |
HW166(3.73, optional 4.22); besides ZZ4187V3517N1B/V2Pcyou can thoose ST16(3.93; optional 4.42; 4.8) |
|||||
suspension |
steel spring, damper, anti-roll bar in front/rear suspension |
|||||
Steering system |
ZF8098steering gear box,Zfsteering oil pumpe,system pressure18MPa |
|||||
Electric system |
CAN,voltage: 24V; engine: 1540W; starter: 7.5kW ; accumulater: 12V/165Ah, 2 |
|||||
Tyre |
315/80R22.5; optional 12.00R20 |
|||||
Fuel tank capacity L |
Standard 400L, optional 600L |
|||||
Curb weight kg |
6800 |
6800 |
6800 |
6800 |
||
Gvw kg |
18000 |
18000 |
18000 |
18000 |
||
Trailer total quality kg |
35000 |
35000 |
35000 |
35000 |
||
Max load of saddle kg |
11070 |
11070 |
11070 |
11070 |
||
Dimension(length x widthx) mm |
6160x2496x3560 |
6160x2496x3560 |
6160x2496x3560 |
6160x2496x3560 |
||
Wheel base mm |
3500 |
3500 |
3500 |
3500 |
||
Front/rear overhang mm |
1540/1120 |
1540/1120 |
1540/1120 |
1540/1120 |
||
Truck(fronty/rear mm |
2022/1850 |
2022/1850 |
2022/1850 |
2022/1850 |
||
Min ground clearance mm |
268 |
268 |
268 |
268 |
||
Approaching/departure angle |
15/38 |
15/38 |
15/38 |
15/38 |
||
Max speed km/h |
101 |
101 |
101 |
101 |
||
Max grade ability % |
26 |
29 |
31 |
33 |
||
Min turning diameter m |
14 |
14 |
14 |
14 |
||
Saddle grounclearance (empty/full) mm mm |
1325/1218 |
1325/1218 |
1325/1218 |
1325/1218 |
||
Front/rear turning radius mm |
1950/1860 |
1950/1860 |
1950/1860 |
1950/1860 |
||
Traction pin specifications |
50#(2hour |
50#(2hour |
50#(2hour ) |
50#(2 hour |
||
|
|
|
|
|
|
||

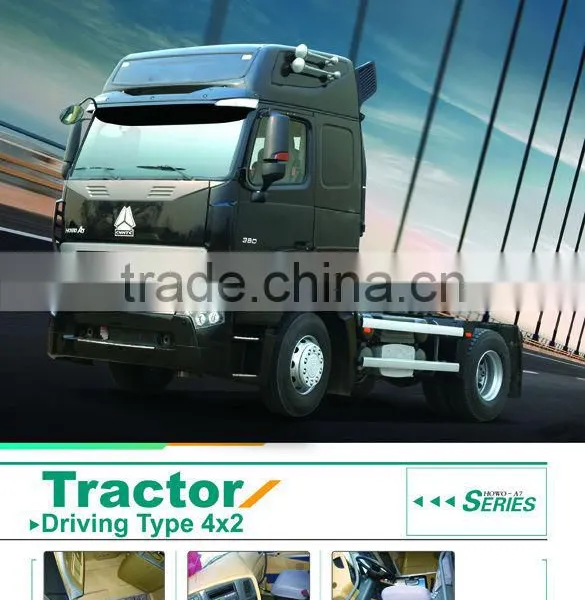

some pictures of the truck:
you could contact us by:
We sincerely hope to cooperate with you to expand market in your country!
