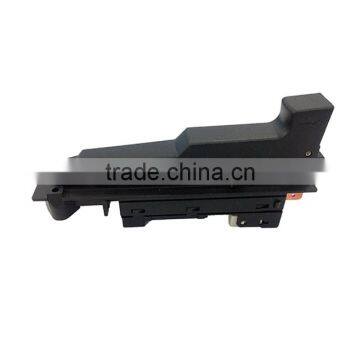

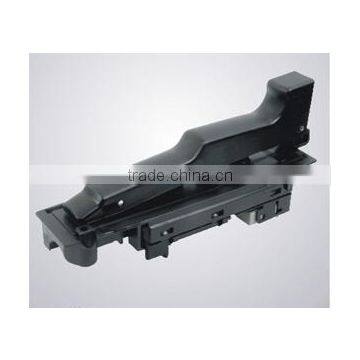

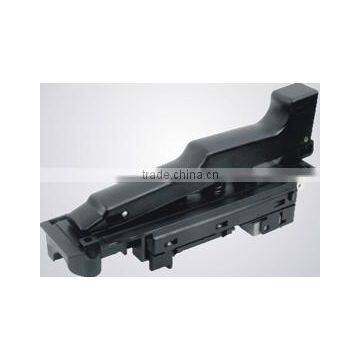

Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180

Yueqing Fengsu Switch Factory
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 thumbnail-1
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 thumbnail-2
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 thumbnail-3
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 photo-1
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 photo-2
Fs042 ac Angle Grinder Trigger Switches 12A Power Tool Accessories Switch Repair With Self Locking for BS 20-180 22-180 24-180 photo-3
US$ 0.5 - 2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FESU
Model Number:
FS042-02
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FESU
Model Number FS042-02
Max. Current 12(12)A
Max. Voltage 250V
Product Description



Specifications

1.TUV  CE CQC
2.110V-250V 8A-12A
3.Prevent Burning

4.Dust proof
4.Be used for bosch180 angel grinder

fs042 ac angle grinder trigger switches 12A power tool accessories switch repair with self locking for BS 20-180 22-180 24-180



component materials:

1. actuator :nylon

2. housing :nylon

3. spring :iron

4. other component :copper

 electrical features:

1.Optional rated current: 12A

2. optional rated voltage:250V OR 125V

3.frequency:50/60HZ

4.electrical life:5E4

5. Certificated rating: 12(12)A,250V

 mechanical features:

1. Mechanical contact system: DPNO

2. Optional LOCK ON, LOCK OFF, LOCK ON&OFF

3.Optional with dust-proof, with distub device

4.Optiona screw terminals M4; Plug-in terminals:6.3*0.8mm

5.Mechanical life:1E4

6. contact gap :upon users demand

7. approval : TUV, CE, CQC

8. trigger operating force:25N(MAX) release lock button

9. lock on button force:20N

installation:

1. screw terminals accept  stranded wire encapsulated with terminal pins
