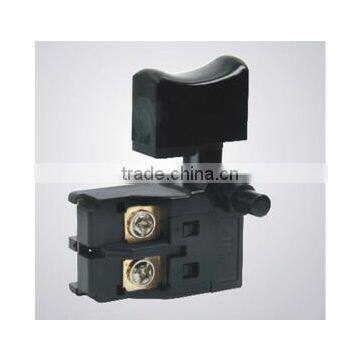

Help CenterPower Tool Switch Spare Parts Ac Trigger Switch
Related Products
-
FS027A Cutter Switch Spare Parts Ac Trigger Switch for Power ToolUS$ 0.14 - 0.27MOQ: 1000 Pieces -
FS027a 6301 4002 110 mm Cut off Electric 6A Power Tool SwitchUS$ 0.2 - 8MOQ: 1000 Pieces
-
Fs063 180 Diamand Core Drill Eagle Electric SwitchesUS$ 0.2 - 8MOQ: 300 Pieces
-
FS043 125 2410 5A Electric Power on off SwitchUS$ 0.1 - 2MOQ: 516 Pieces
-
FS067 Spdt Switch Household Electric SwitchUS$ 0.2 - 8MOQ: 400 Pieces
component materials: |
1. actuator :nylon |
2. housing :nylon | |
3. spring :iron | |
4. other component :copper | |
electrical features: |
1.Optional rated current: 6A, 8A |
2. optional rated voltage:250V OR 125V | |
3.frequency:50/60HZ | |
4.electrical life:5E4 | |
5. Certificated rating: 6(6)A,250V;8(8)A,250V | |
mechanical features: |
1. Mechanical contact system: SPNO |
2. Optional LOCK ON, LOCK OFF | |
3.Optional with dust-proof, with distub device | |
4.Screw terminals M3.5; Insert terminals:4.8*0.6mm | |
5.Mechanical life:1E4 | |
6. contact gap :upon users demand | |
7. approval : TUV, CE, CQC | |
8. trigger operating force:25N(MAX) release lock button | |
9. lock on button force:20N | |
installation: |
1. screw terminals accept stranded wire encapsulated with terminal pins |
Company information:
Our factory was founded in 1998 and one of the most professional supplier in China. We have Many experience on manufacturing electric switches , plastic products and other spare parts.And we have our own lab for our products.
Welcome to customized products.
company photo:
Packaging
Selling Units: |
Single item |
Package Type: |
inner package: first polybag each piece then in white box; outer package: in white carton other package could be designed by customer request |
Normal package:
Other packages could be chosen.
