Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control

Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control thumbnail-1
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control thumbnail-2
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control thumbnail-3
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control thumbnail-4
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control thumbnail-5
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control photo-1
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control photo-2

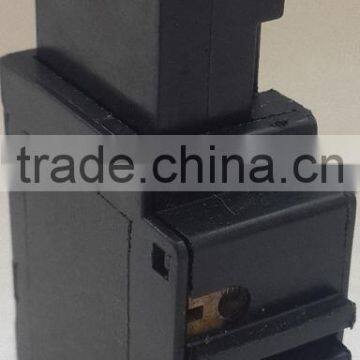

Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control photo-3

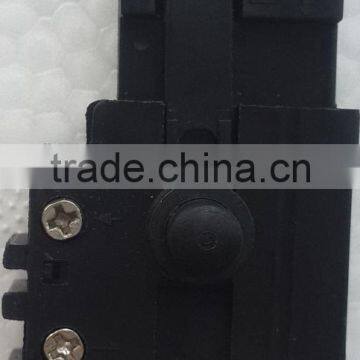

Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control photo-4
Jigsaw Spare Parts HTC 10mm Electric Drill Switches Power Tool Replacement ac Trigger Switch With Speed Control photo-5
US$ 1.29 - 1.45 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fesu
Model Number:
008-03
Contact Supplier Request Quote Chat Now
Yueqing Fengsu Switch Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Fesu
Model Number 008-03
Max. Current 5(5)A
Max. Voltage 250V
Product Description

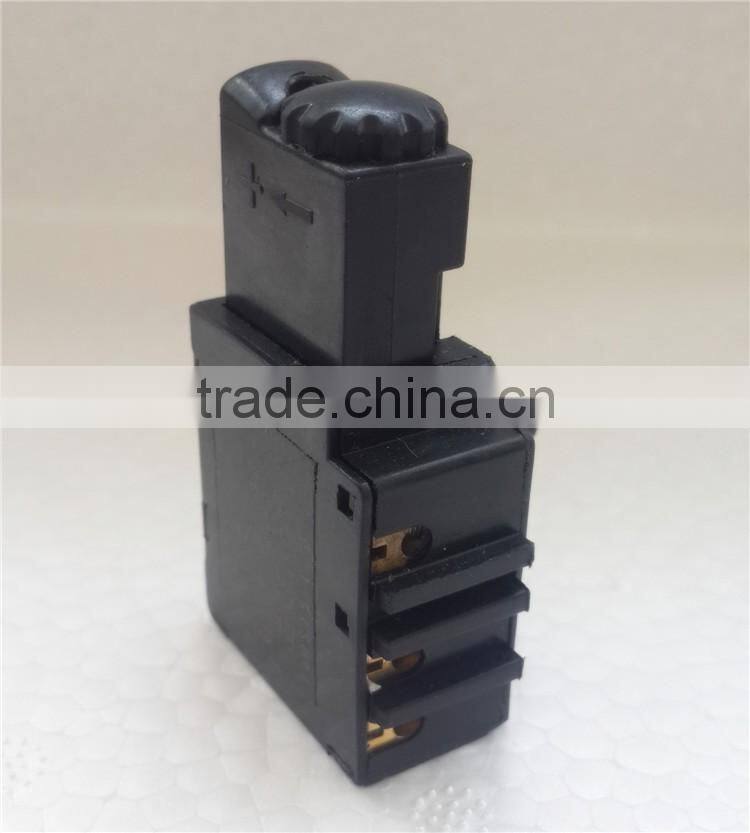

jigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed control



component materials:

1. actuator :nylon

2. housing :nylon

3. spring :iron

4. other component :copper

 electrical features:

1.Optional rated current: 5A

2. optional rated voltage:250V OR 125V

3.frequency:50/60HZ

4.electrical life:5E4

5. Certificated rating: 5(5)A,250V

 mechanical features:

1. mechanical contact system: SPNO

2. with electronics for variable speed control

3.Optional thumbwheel for limiting actuator travel

4.speed-adjusting range: upon the users demand

5.optional  integrated reversing module

6. optional with disturb device

7. PILLAR TERMINAL:M3

8. TERMINAL BLOCK:3MM

9. mechanical life:1E4

10. contact gap :upon users demand

11. optional with lock on.

12. approval : TUV, CE, CQC

13. trigger operating force:25N(MAX) release lock button

14. lock on button force:20N

installation:

1. screw terminals accept  stranded wire encapsulated with terminal pins

2. push-in terminals (1 and 2) accept stranded tin-dipped wire

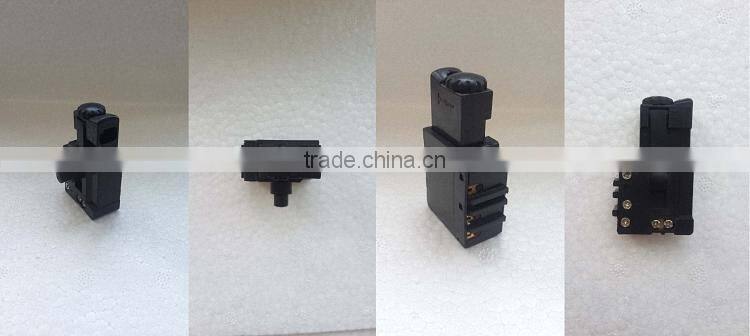

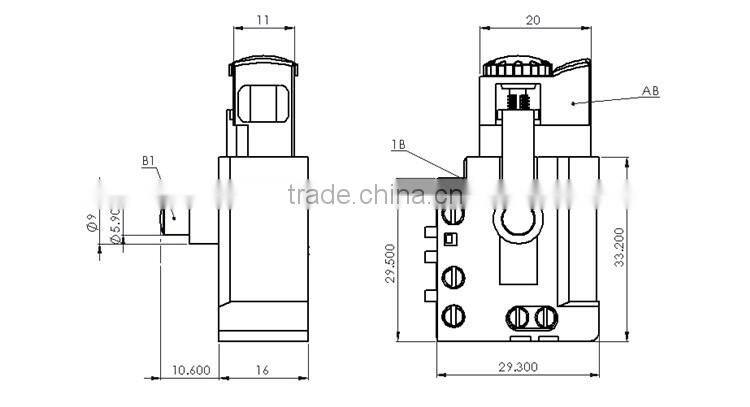

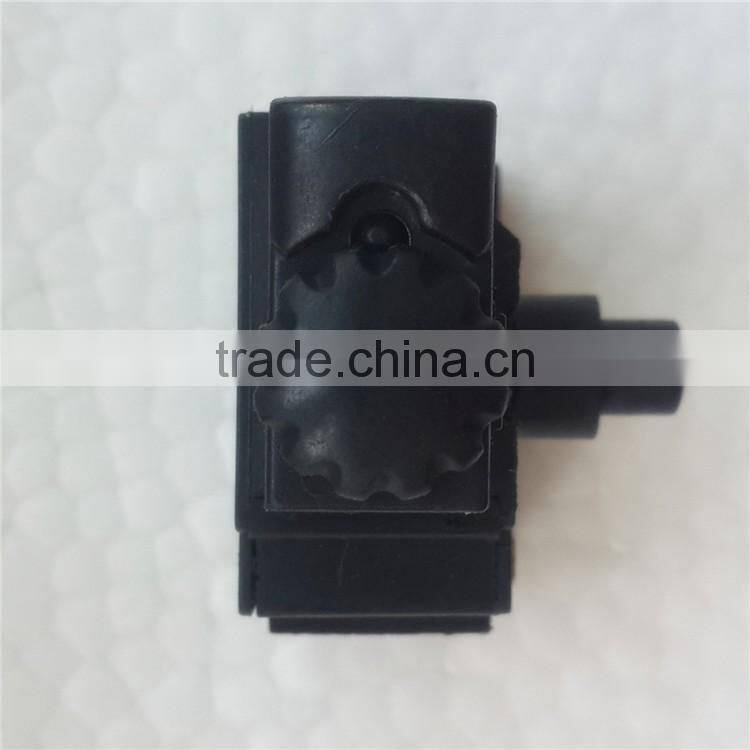

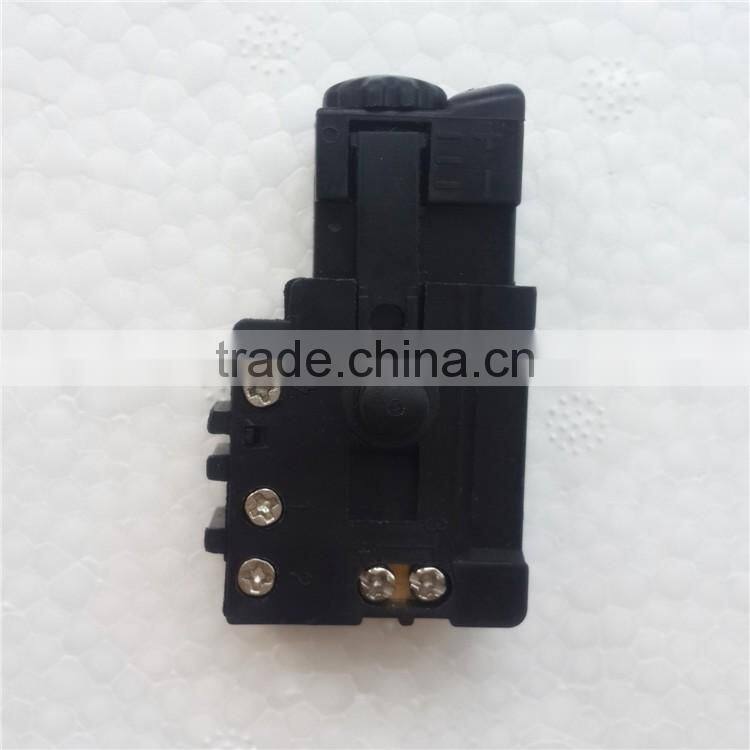

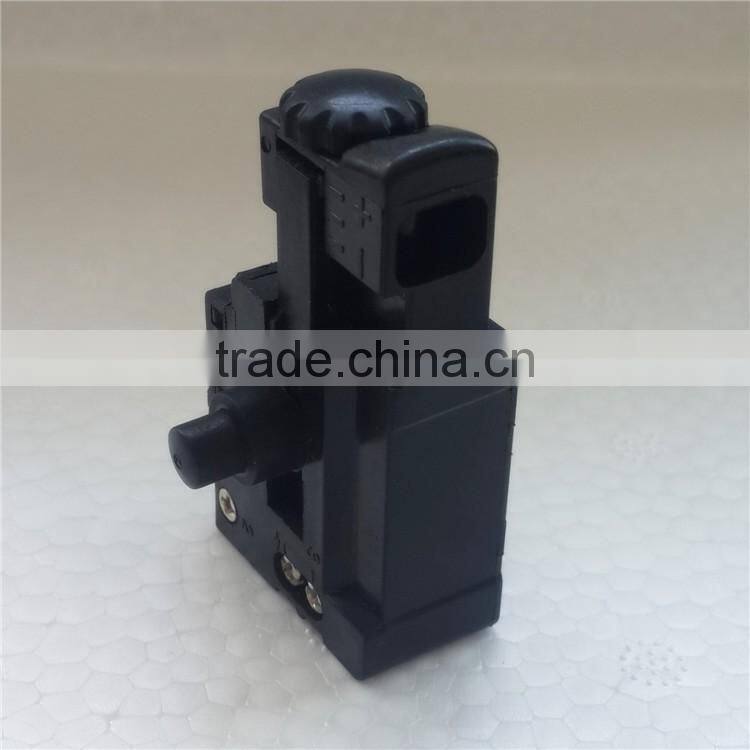

 jigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed controljigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed controljigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed controljigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed controljigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed control









Company Information



Company information:



Our factory was founded in 1998 and one of the most professional supplier in China. We have Many experience on manufacturing electric switches , plastic products and other spare parts.And we have our own lab for our products.

Welcome to customized products.



company photo:

 jigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed control





Packaging & Shipping



Packaging

Selling Units:

Single item

Package Type:

inner package: first polybag each piece then in white box;

outer package: in white carton

other package could be designed by customer request



 Normal package:



 jigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed control



Other packages could be chosen.



jigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed controljigsaw spare parts HTC 10mm electric drill switches power tool replacement ac trigger switch with speed control
