LPG Gas Cylinder Production Line Equipment

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Steel	Use	LPG
Pressure	Low	Place of Origin	Jiangsu, China
Brand Name	SMAC	Model Number	SMAC-LPG

Product Description

LPG gas cylinder production line equipment

LPG gas cylinders provide fuel for home and small business and LPG is a good alternative to electricity. Our gas bottle are guaranteed to be in high quality since all of them having passed a series of strict test, such as hydrostatic test, burst test, tensile strength, Charpy impact test and pressure cycling.

Application

Application cylinder size: 6kg/12kg/15kg/50kg and customrized

Producing line machine list

Main Machine list:

Machine	Quantity (set)
1.Production line of blanking	1
2.Hydraulic press blanking	1
3.Drawing hydraulic press	4
4.Edge cutting machine	4
5.Clean-up grinding machine	2
6.Forming machine	2
7.Perforator machine	1
8.C02 automatic welding machine	4
9.Assembly machine	1
10.Submerged arc welding machine	9
11.Heat treatment furnace	2
12. Hydraulic pressure testing machine	1
13.High pressureing	1
14.Sandblast machine	2
15.Electrostatic spraying line	1
16.Bottle dry cleaning machine	1
17.On the cylinder valve machine	2
18.Leakage testing machine	1
19.Printing machine	2
20.Reducer	30

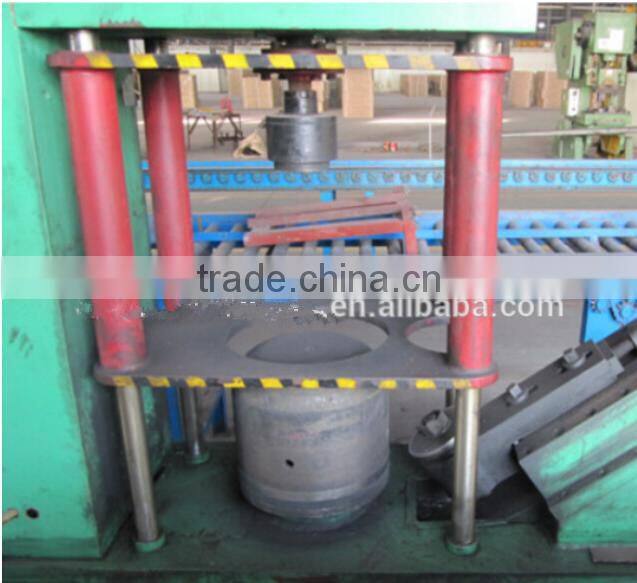

Main equipments introduction:

1.Automatic trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line

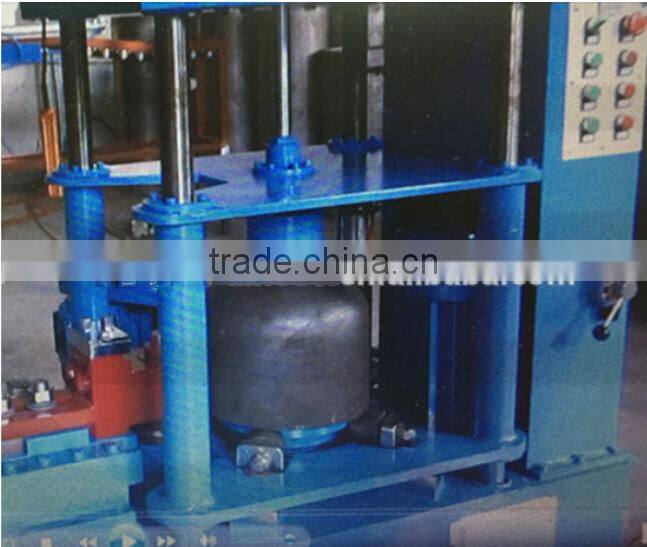

2.End dish shaping machine

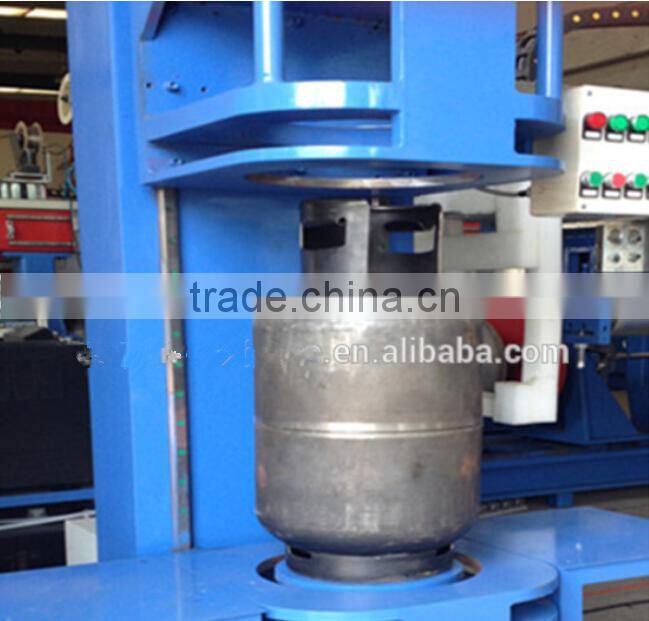

3.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

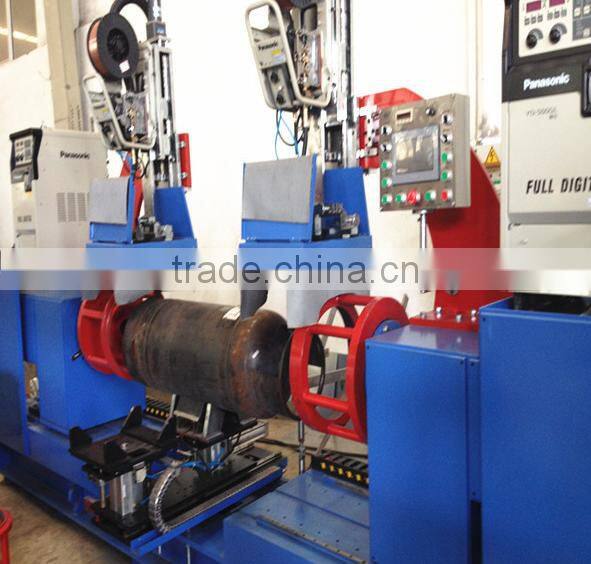

4.Circumferential Seam welding machine

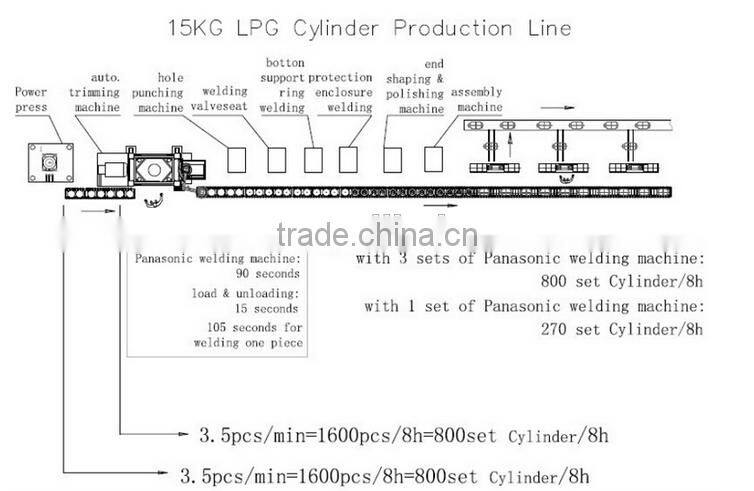

Producing process chart

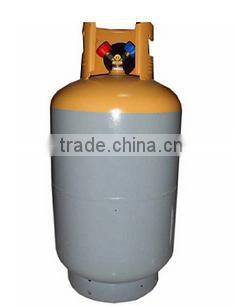

LPG cylinder product showing

Packaging & Shipping

Our Services

1.OEM

2.Spare parts

3.Warranty for one year

4.Tech support is available for 24 hours

5.Fast delivery

FAQ

1. Accept L/C, T/T ,D/A,D/Ptype of payments

2. Regarding to the technical questions, pls contact our R&D

3. Any question, call us or send email, we will try our best to satisfy you
