high economy Mechanical shearing machine
- 50 Set / Sets per Month
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal
-
Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
-
Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
-
60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
-
Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
-
1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
-
Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SMAC |
| Model Number: | MS-4x2500 | Voltage: | 220v | Rated Power: | 5.5kw |
| Dimension(L*W*H): | 3500x1500x1300mm | Weight: | 2200kg | Certification: | CE SGS ITS |
| Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

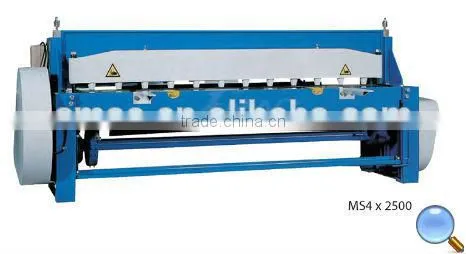

high economy Mechanical shearing machine
Features
This machine is of all-steel welded construction.Simple construction with good appearance. It is easy to operate, with low energy consumption. It is widely used for medium and thick steel sheet forming in the light machine industry, hardware manufacture. The blade is made from special steel.
This machine is of simple construction, sensitive and reliable control, and easy maintenance.
Specification
Models/Specification | Shearing Thickness (mm) | Shearing Width (mm) | Shearing Angle | Number of Stroke(min) | Backgauge Rang (mm) | Motor Power (kw) | Overall Dimensions (mm) (L*W*H) | Net Weight (kg) | Old model | |
10311 | MS-4*2000 | 4 | 2000 | 1°30′ | 18 | 500 | 4 | 3000*1970*1250 | 1600 | Q11-4*2000 |
10312 | MS-4*2500 | 4 | 2500 | 1°30′ | 18 | 500 | 5.5 | 3500*1500*1300 | 2200 | Q11-4*2500 |
10313 | MS-4*3200 | 4 | 3200 | 1°30′ | 12 | 500 | 7.5 | 4000*1500*1300 | 3000 | Q11-4*3200 |
10314 | MS-4*4000 | 4 | 4000 | 1°30′ | 10 | 500 | 11 | 5000*1970*1350 | 4000 | Q11-4*4000 |
10315 | MS-6.3*2000 | 6.3 | 2000 | 2° | 18 | 500 | 7.5 | 3175*1756*1530 | 2700 | Q11-6.3*2000 |
10316 | MS-6*2500 | 6 | 2500 | 1°45′ | 12 | 500 | 7.5 | 3675*1765*1530 | 3500 | Q11-6*2500 |
10317 | MS-6*3200 | 6 | 3200 | 1°30′ | 12 | 500 | 7.5 | 4450*2165*1520 | 5500 | Q11-6*3200 |
10318 | MS-8*2500 | 8 | 2500 | 1°57′ | 10 | 700 | 11 | 3690*2165*1520 | 5500 | Q11-8*2500 |
10320 | MS-2*2000 | 2 | 2000 | 1°30′ | 18 | 500 | 3 | 2800*1260*1300 | 1300 | Q11-2*2000 |
10401 | MS-3*1200 | 3 | 1200 | 2°25′ | 54 | 350 | 2.2 | 1980*1550*1245 | 1180 | Q11-3*1200 |
10402 | MS-3*1300 | 3 | 1300 | 2°14′ | 54 | 350 | 2.2 | 2080*1505*1245 | 1250 | Q11-3*1300 |
10403 | MS-3*1500 | 3 | 1500 | 2° | 54 | 350 | 2.2 | 2280*1505*1245 | 1400 | Q11-3*1500 |
10404 | MS-3.5*1300 | 3.5 | 1300 | 2°14′ | 65 | 500 | 3 | 2000*1600*1300 | 1350 | Q11-3.5*1300 |
10405 | MS-3.5*1500 | 3.5 | 1500 | 2°25′ | 45 | 350 | 2.2 | 2280*1505*1300 | 1500 | Q11-3.5*1500 |
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.
OFFICE VIEW
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
