Variable Rake Type Hydraulic Shearing for Sale
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SMAC | Model Number | VSHS-6*3100 | |
| Voltage | 380v, 220V/380/415V | Rated Power | 7.5kw | |
| Dimension(L*W*H) | 3790x1880x2030mm | Weight | 5600kg | |
| Certification | CE ISO | Warranty | 1 year | |
Product Description

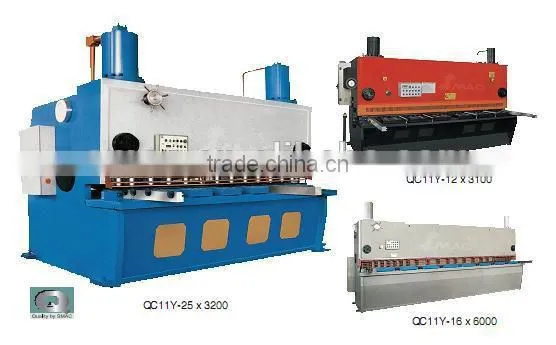

Variable rake type hydraulic shearing for sale
Model | Mild steel(45kg/mm²) | Cutting lebgth(mm) | Stroke per minute(spm) | Bake gauge range(mm) | Rake angle adjustment(°) | Depth of throat(mm) | Motor power(kw) | Weight(kg) | L*W*H(mm) | |
10101 | VSHS-6*2500 | 6 | 2500 | 10-45 | 750 | 0.5-2.5 | 70 | 7.5 | 4850 | 3240*1770 *1980 |
10102 | VSHS-6*3100 | 6 | 3100 | 8-45 | 750 | 0.5-2.5 | 70 | 7.5 | 5600 | 3790*1880 *2030 |
10103 | VSHS-6*4000 | 6 | 4000 | 7-45 | 750 | 0.5-2.5 | 70 | 7.5 | 7050 | 4740*1805 *2110 |
10105 | VSHS-6*6000 | 6 | 6000 | 5-30 | 750 | 0.5-2.5 | 100 | 15 | 8000 | 6900*2170 *2750 |
10107 | VSHS-8*2500 | 8 | 2500 | 10-45 | 750 | 0.5-2.5 | 100 | 11 | 5300 | 3240*1770 *2010 |
10108 | VSHS-8*3100 | 8 | 3100 | 8-45 | 750 | 0.5-2.5 | 100 | 11 | 6100 | 3800*1800 *2060 |
10108-1 | VSHS-8*6000 | 8 | 4000 | 7-45 | 750 | 0.5-2.5 | 100 | 11 | 7700 | 4750*1805 *2140 |
10108-2 | VSHS-8*6000 | 8 | 6000 | 5-30 | 750 | 0.5-2.5 | 100 | 22 | 22000 | 6900*2200 *2800 |
10108-3 | VSHS-10*2500 | 10 | 2500 | 10-35 | 750 | 0.5-2.5 | 100 | 11 | 6600 | 3310*1850 *2160 |
10108-4 | VSHS-10*3100 | 10 | 3100 | 8-35 | 750 | 0.5-2.5 | 100 | 11 | 7300 | 3860*1870 *2170 |
10108-5 | VSHS-10*4000 | 10 | 4000 | 6-35 | 750 | 0.5-2.5 | 100 | 11 | 9200 | 4810*1920 *2350 |
10109 | VSHS-12*2500 | 12 | 2500 | 10-35 | 1000 | 0.5-2.5 | 100 | 15 | 8000 | 3310*2180 *2270 |
10110 | VSHS-12*3100 | 12 | 3100 | 8-35 | 1000 | 0.5-2.5 | 100 | 15 | 9000 | 3860*2200 *2335 |
10111 | VSHS-12*4000 | 12 | 4000 | 6-35 | 1000 | 0.5-2.5 | 100 | 15 | 11600 | 4810*2220 *2495 |
10111-1 | VSHS-12*6000 | 12 | 6000 | 4-12 | 1000 | 0.5-2.5 | 100 | 30 | 29000 | 6950*2350 *3050 |
10112 | VSHS-16*2500 | 16 | 2500 | 8-30 | 1000 | 0.5-3.0 | 100 | 30 | 9600 | 3350*2190 *2350 |
10113 | VSHS-16*3100 | 16 | 3100 | 7-30 | 1000 | 0.5-3.0 | 100 | 30 | 12500 | 3900*2180 *2430 |
10114 | VSHS-16*4000 | 16 | 4000 | 6-30 | 1000 | 0.5-3.0 | 100 | 30 | 15200 | 4850*2340 *2575 |
10114-1 | VSHS-16*6000 | 16 | 6000 | 4-12 | 1000 | 0.5-2.5 | 100 | 37 | 36000 | 7000*2400 *3100 |
10115 | VSHS-20*2500 | 20 | 2500 | 8-30 | 1000 | 0.5-3.5 | 100 | 30 | 17000 | 3385*2410 *2665 |
10115-1 | VSHS-20*3100 | 20 | 3100 | 7-30 | 1000 | 0.5-3.5 | 100 | 30 | 19000 | 3985*2260 *3030 |
10116 | VSHS-20*4000 | 20 | 4000 | 6-30 | 1000 | 0.5-3.5 | 100 | 30 | 21000 | 4935*2330 *3045 |
10116-1 | VSHS-20*6000 | 20 | 6000 | 3-10 | 1000 | 0.5-2.5 | 100 | 60 | 50000 | 7050*2600 *3200 |
10116-2 | VSHS-25*2500 | 25 | 2500 | 5-30 | 1000 | 0.5-3.5 | 100 | 37 | 22000 | 3940*2555 *3150 |
10117 | VSHS-25*3100 | 25 | 3100 | 4-30 | 1000 | 0.5-3.5 | 100 | 37 | 26000 | 3970*2230 *3160 |
10118 | VSHS-25*4000 | 25 | 4000 | 3-30 | 1000 | 0.5-3.5 | 100 | 37 | 28000 | 4920*2250 *3300 |
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.
