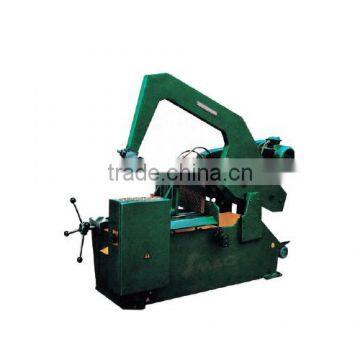

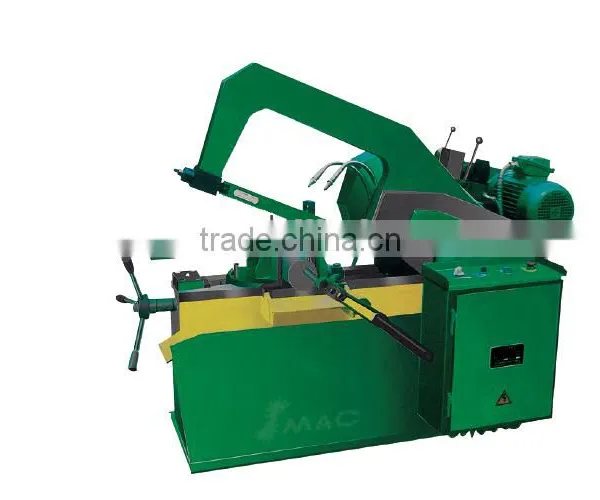

Horizontal Semi-automatic Hack Saw Machine

Name: Horizontal Semi-automatic Hack Saw Machine
Brand: SMAC
SKU: 143011888
Availability: InStock

SJR Machinery Co., Ltd.

US$ 500 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter mm

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number HKS Series

Voltage 380V/220V/400V

Power(W) 3.22kw or 4.34kw

Dimension(L*W*H) 1490x910x960mm

Weight 600-1450KGS

Certification CE, ISO

After-sales Service Provided Engineers available to service machinery overseas

WIRE CUT

Automatic cutting process exeept gripping device and feeding mechaism. With Protective System.

Hydreulie transmission simple running; Easy upkeep.

Item		Unit	15905	15906	15907	15908
Item		Unit	HKS250V	HKS320	HKS400	HKS500
Cutting scope	Round. bar	mm	250	320	400	500
	Shape. bar	mm	220 x 220	320 x 240	400 x 240	500 x 280
	Shape. bar	mm	-	290 x 290	330 x 330	400 x 400
	Oblique saw	mm	45 (Dmax=220)	45 (Dmax=250)	45 (Dmax=250)	45 (Dmax=300)
Frequency of sawing bow reciprocation		min-1	43, 50, 60, 86, 100, 120	34:60:84
Saw size		mm	450 x 45 x 2.25	600 x 50 x 2.5	650 x 55 x 2.5	750 x 63 x 2.5
Motor Power		kw	3.22	3.44	4.34	4.34
Over dimentions (L x W x H)		mm	1490 x 910 x 960	1940 x 835 x 1345	1990 x 835 x 1345	2090 x 1040 x 1375
Net weight		kg	600	1100	1200	1450
Old model			G7125	GL7132	GL7140	GL7150
