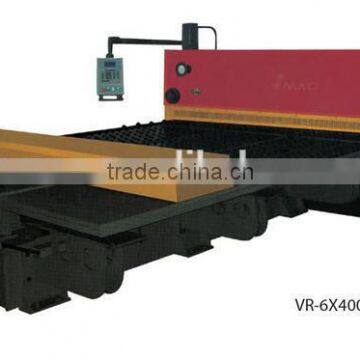

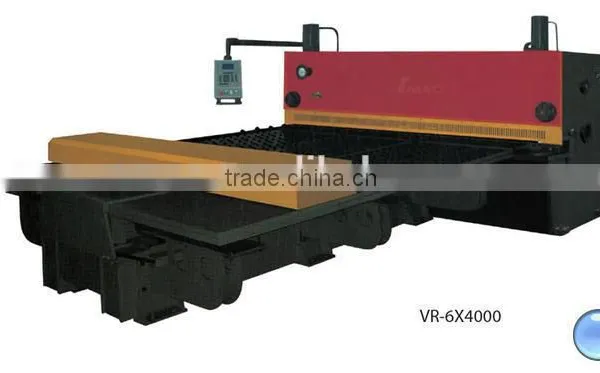

VR-6X4000 CNC shear machine
Specifications
Specification VR |
Unit |
6/3 10001 |
6/4 10002 |
8/3 10003 |
8/4 10004 |
|||||
Thickness |
mm | in | 6 | 1/4 | 6 | 1/4 | 8 | 1/3 | 8 | 1/3 |
Width |
mm | in | 3070 | 122.8 | 4070 | 162.8 | 3070 | 122.8 | 4070 | 162.8 |
Storkes |
min | min | 18-48 | 18-48 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 |
BG. Iength |
mm | in | 5-1000 | 0.2-40 | 5-1000 | 0.2-40 | 5-1000 | 0.2-40 | 5-1000 | 0.2-40 |
Cutting angle |
0 | 0 | 0.50-20 | 0.50-20 | 10-20 | 10-20 | 10-2.50 | 10-2.50 | 10-20 | 10-20 |
Speed of BG. |
mm/s | in/s | 300 | 12 | 300 | 12 | 300 | 12 | 300 | 12 |
Clamping jacks |
pcs | pcs | 14 | 14 | 18 | 18 | 14 | 14 | 18 | 18 |
Tank capacity |
L | Gal | 300 | 78 | 300 | 78 | 300 | 300 | 300 | 78 |
Weight |
kg | lb | 6150 | 13530 | 8050 | 17710 | 8500 | 18700 | 11000 | 24200 |
Specification VR |
Unit |
10/3 10005 |
10/4 10006 |
12/3 10007 |
||||
Thickness |
mm | in | 10 | 3/8 | 10 | 3/8 | 12 | 1/2 |
Width |
mm | in | 3070 | 122.8 | 4070 | 162.8 | 3070 | 122.8 |
Storkes |
min | min | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 |
BG. Iength |
mm | in | 5-1000 | 0.2-40 | 5-1000 | 0.2-40 | 5-1000 | 0.2-40 |
Cutting angle |
0 | 0 | 10-2.50 | 10-2.50 | 10-20 | 10-20 | 10-20 | 10-20 |
Speed of BG. |
mm/s | in/s | 300 | 12 | 300 | 12 | 300 | 12 |
Clamping jacks |
pcs | pcs | 14 | 14 | 18 | 18 | 14 | 14 |
Tank capacity |
L | Gal | 300 | 78 | 300 | 78 | 300 | 78 |
Weight |
kg | lb | 10500 | 23100 | 12500 | 27500 | 12000 | 26400 |
Main Parts
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.
OFFICE VIEW
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
