Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SMAC |
Model Number: | TC-2.5*2500, TC-2.5*2500 | Voltage: | 380v | Rated Power: | 5.5kw |
Dimension(L*W*H): | 3124x2210x1180mm | Weight: | 2000kg | Certification: | CE SGS ITS |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

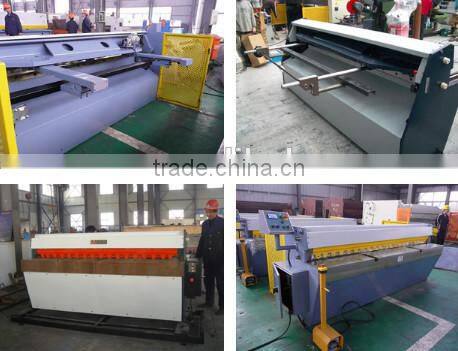

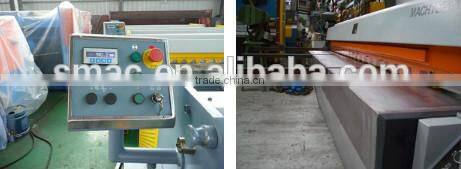

True-cut Mechanical Shears
Features

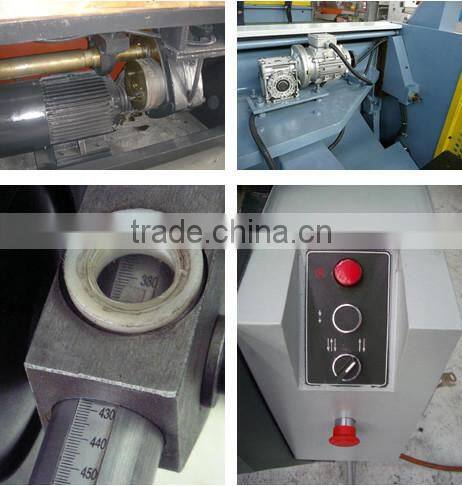

This machine is different from the traditional driving method of mechanical sheares ,It is one of the most advanced mechanical shearers. A brake motor driving through a shaft-mounted speed reduction unit and controlled by a detector switch for single or continuous stroke provides quiet instantaneous engagement.The low cutting angle and inclined shearing direction reduces bowing and twist to a minimum, Blade clearance is easily set by a manually operated “Quick Set”device, it is an ideal true cut machining equipment of sheet metal and nonferrous sheet metal.
Specification
Models/Specification | Cutting Thickness (mm) | Cutting Width (mm) | Cutting Angle | Strokes Per minute | Backguage (mm) | Table height (mm) | Motor power (kw) | Overall size (mm) | Weight (kgs) | Old model | |
10406 | TC-2.5*2500 | 2.5 | 2500 | 1° | 47 | 0-650 | 800 | 5.5 | 3124*2210 *1180 | 2000 | QH11D-2.5*2500 |
10407 | TC-3.2*2000 | 3.2 | 2000 | 1°45′ | 47 | 0-650 | 800 | 7.5 | 2642*2210 *1180 | 1800 | QH11D-3.2*2000 |
10408 | TC-3.2*2500 | 3.2 | 2500 | 1°18′ | 47 | 0-650 | 800 | 7.5 | 3124*2210 *1180 | 2100 | QH11D-3.2*2500 |
10409 | TC-3.5*1250 | 4 | 4000 | 1°30′ | 47 | 0-650 | 800 | 7.5 | 1860*2210 *1180 | 1450 | QH11D-3.5*1250 |
10410 | TC-3.5*3000 | 3.5 | 3000 | 1°30′ | 47 | 0-650 | 800 | 9 | 3599*2448 *1290 | 2500 | QH11D-3.5*3000 |
10411 | TC-2*3660 | 2 | 3660 | 1°30′ | 47 | 0-650 | 800 | 9 | 4200*2448 *1240 | 3500 | QH11D-2*3660 |
