JL31-400MA Straight Side One Point Press Machine

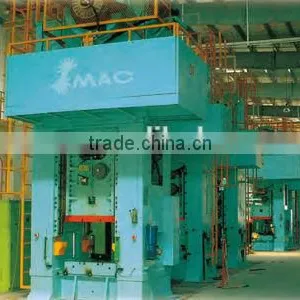

JL31-400MA Straight Side One Point Press Machine thumbnail-1

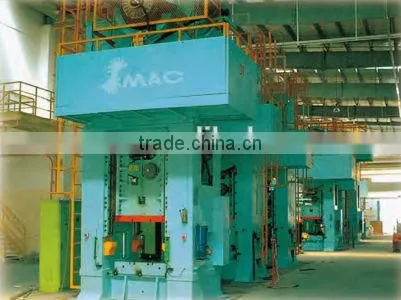

JL31-400MA Straight Side One Point Press Machine photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
CNC or Not:
Normal, Normal
Power Source:
Other, Mechanical, Mechanical
Contact Supplier Request Quote Chat Now
SJR Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Other, Mechanical, Mechanical
Place of Origin Zhejiang, China
Brand Name SMAC, SMAC
Model Number JL31-400MA, JL31-400MA
Voltage 380V, 220V/380V
Power(W) 37000, 37Kw
Weight 55t
Certification ISO, CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

rigid transfer clutch, simple structure, easy maintenance, the use of helical gears, smooth, the impact of small, low noise.

Features:

  • The base, uprights, cross-beam and slide, which are all welded structure, positioned by positioning bushing and connected through hydraulic pretightening force bolts .
  • Triple drive mechanism, one is belt drive, and the two are gear transmission (160T double driven system).
  • Adopt mechanical system and digital cam to control operation condition.
  • Rods and slide connected through guide pillars and bushes, which have eight guide rails.
  • Introduce low inertial clutch brake, and imported safe double valve to control;
  • The slide adopts hydraulic overload protecting device, which controlled by imported pump valve; Die height adjusts automatically;
  • Lubricating system include thin oil circulating lubrication and dense oil regular lubrication, which are fix quantify and time ,also with high and low oil levels detection;
  • Hydraulic ,pneumatic components and electrical controllable elements are all introduce fine quality brand name products;
  • Adopt pneumatic cushions or hydraulic supercharging cushions;
  • Electrical system introduces PLC double loop control;
  • With Oil levels detection, and failure testing, all actions are interconnect;
  • Dedicated vibration isolators are optional, which could reduce shock and vibration and prolong press and die service life;
  • Assist equipments are optional ,such as uncoiler, leveller, feeder, shears ,blanker, Robot Palletizer,and etc.



Main parameters

Model   11390 11391 11392 11393 11394 11395 11396 11397 11398 11399 11400
Unit JL31C-315T JL31A-315M JL31A-400 JL31B-400 JL31A-400M JL31-400MA JL31B-400H JL31B-450H JL31C-500B JL31B-500B JL31A-500
Nominal force KN 3150 3150 4000 4000 4000 4000 4000 4000 5000 5000 5000
Nominal force stroke mm 8 6 13 13 6 6 6 6 16 13 13
Stroke of slide mm 500 220 400 400 250 250 100 100 400 400 250
Strokes per minute spm 15 30 20 20 28 22~28 60~80 60~80 12 20 20
Max.die set height mm 500 630 550 600 500 500 550 500 550 700 550
Die height adjustment mm 250 150 250 250 200 200 100 150 250 250 250
250Size of table L-R mm 1400 1050 1240 1240 1500 1700 1400 1400 1400 1240 1240
F-B mm 1200 980 120 1000 1300 1500 1300 1300 1400 1500 1200
Bottom size of slide L-R mm 1400 1000 1230 1240 1475 1675 1200 1200 1400 1200 1230
F-B mm 1200 950 1000 1000 1200 1400 1200 1200 1300 1500 1000
Distance between gibs mm 1420 890 1240 1250 1320 1700 1290 1290 1700 1200 1230
Cushion Clamping/Ejecting force KN / / 500/75 400 / / / / 250 / /
Number   / / 1 1 / / / / 1 / /
Stroke mm / / 200 150 / / / / 200 / /
Overall dimensions L-R mm 3570 2915 3020 3020 2400 4920 2600 2600 4745 4125 3050
F-B mm 3125 2710 2745 2740 2400 2695 2340 2340 3345 3175 2725
Height above floor mm 7020 6230 6360 6890 6210 5950 5950 5950 7370 6385 6470
Air pressure MPa

0.55

 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55
Main motor power KW 45 30 45 45 37 37 55 55 45 45 45
Total weight T 42 36 43 49 43 55 45 46 60 64 55










JL31-400MA Straight Side One Point Press machineJL31-400MA Straight Side One Point Press machineJL31-400MA Straight Side One Point Press machine
