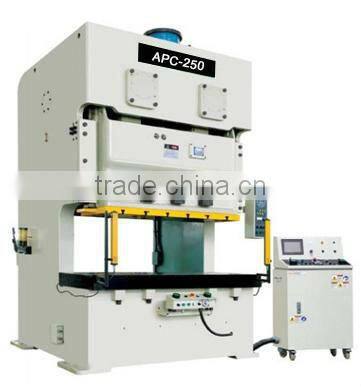

Help CenterDouble Crank Precision Steel Frame Press/two Point Press/press Machine
Related Products
-
SMAC High Precision Mold Automatic Oil MachineNegotiableMOQ: 1 Set -
Open Type Single Point Press MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
H Type Double Crank Precision Steel Frame PressUS$ 8,000 - 10,000MOQ: 1 Set
-
Pressing Machine/high Speed Precision Power PressUS$ 1,000 - 6,000MOQ: 1 Set
-
JL36-400GS Straight Side Two Point Press MachineNegotiableMOQ: 1

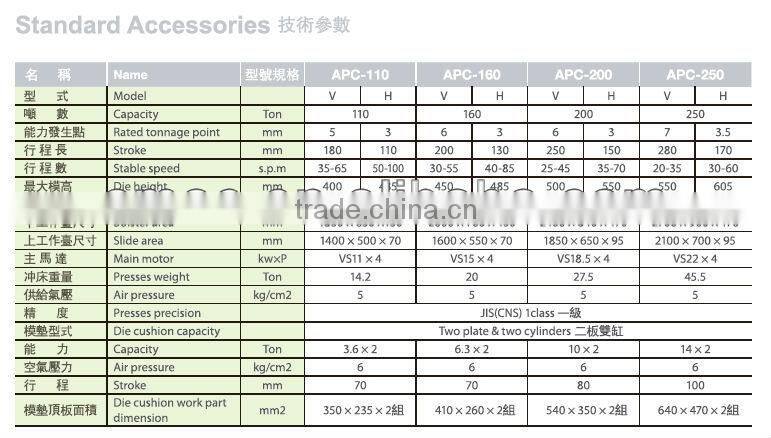

Specifications
Power press/press machine/two-point pressSteel-welded frame, high ngidity and less deformation
Specifications:
1) J25 series open-type two-point press can be applied for punching and shallow drawing of large-sized plates. It may also be equipped with multi-stage dies or other transfer dies for processing parts and components of complex structures.
2) Steel-welded frame, high rigidity and less deformation.
3) Pneumatic combination friction clutch-brake, iow noise and long service life, to ensure reliable safety and flexible action.
4) Main drive gear immersed in a closed oil tank, running smoothly with Iow noise.
5) Six-side long rectangle guides of the slide in high moving precision and high accuracy, extending the service life of the die.
6) Imported hydraulic overload protection device, effects emergent stop against overload, protecting the dies and preventing damages to the press.
7) Photoelectnc protector.feeder,air cushion and ofher optional accessories are available for the power press subject to the users denands.
