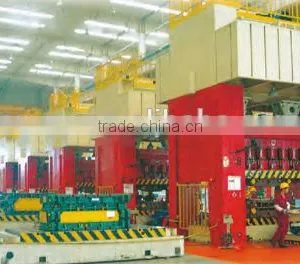

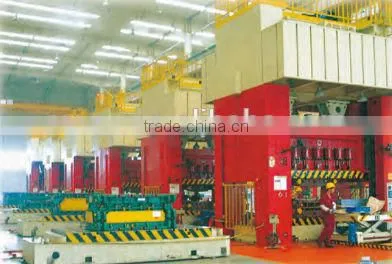

JL36C-630Y Straight Side two Point Press machine
Features:
The steel sheet welding structure, upper cross beam, upright and pedestal form the closed structure by pretightened with the tension bolts to enable high strength and rigidity.
The unique lateral crankshaft structure extends the distance of force bearing points of sliding block to enable high anti eccentric load resistance and large working area of the
machine tool.
Adopt spited insert type dry friction clutch and break featuring low inertia, high torque and low noise.
Adopt PLC for accurate control over two dual valves of clutch brake to ensure coordinated actions of clutch break and reliable interlock.
Adopt 4-corne 8-faces long guide rail accuracy to 0.1mm.
Standard Equipments
1) Dry clutch
2) Hydraulic overload protecting pump
3) PLC
4) Touch screen
5) Auto lubrication system
6) Crankshaft angle indicator
7) Die height digital displayer
8) Mechanical+ electric cam controller
9) Domestic inverter
10) Movable operate station
11) Air source quick connectot
12) Digital die height indicator
13) Balance cylinders for slide and upper die
14) Air-blowing system
15) Joint for miss-feeding
16) Foundation bolts
Optional Equipments:
1) Light curtain
2) Die quick change device
3) Die cushion
4) Moveable working table
5) Automation Peropherals
Main parameters
| Model | 11421 | 11422 | 11423 | 11424 | 11425 | 11426 | 11427 | 11428 | 11429 | 11430 | ||
| Unit | JL36C-400Q | JL36C-400Y | JL36-400GS | JL36C-400 | JL36C-400Y | JL36C-500 | JL36C-500Q | JL36C-500Y | JL36C-630Y | JL36C-800 | ||
| Nominal force | KN | 4000 | 4000 | 4000 | 4000 | 4000 | 5000 | 5000 | 5000 | 6300 | 6300 | |
| Nominal force stroke | mm | 13 | 13 | 10 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | |
| Stroke of slide | mm | 400 | 400 | 250 | 400 | 400 | 500 | 500 | 500 | 500 | 500 | |
| Strokes per minute | spm | 14 | 14 | 20-30 | 16 | 16 | 14 | 14 | 14 | 14 | 14 | |
| Max.die set height | mm | 900 | 1000 | 650 | 750 | 800 | 900 | 900 | 1200 | 800 | 1000 | |
| Die height adjustment | mm | 340 | 500 | 200 | 330 | 350 | 400 | 340 | 600 | 350 | 340 | |
| Size of table | L-R | mm | 3100 | 3500 | 2200 | 2800 | 2800 | 3000 | 3300 | 3500 | 3450 | 3500 |
| F-B | mm | 1500 | 1400 | 1400 | 1400 | 1600 | 1500 | 1600 | 1800 | 1600 | 1600 | |
| Bottom size of slide | L-R | mm | 3100 | 3500 | 2200 | 2800 | 2800 | 3000 | 3300 | 3400 | 3450 | 3500 |
| F-B | mm | 1500 | 1400 | 1250 | 1400 | 1600 | 1500 | 1600 | 1800 | 1600 | 1600 | |
| Distance between gibs | mm | 3110 | 3600 | 2270 | 2660 | 2660 | 2860 | 3220 | 2900 | 3480 | 3460 | |
| Moving table type | ↓ | →↑ | → | ↓ | ←→ | ↓ | ||||||
| Cushion | Clamping/Ejecting force | KN | 800 | 600 | 300 | 600 | 600 | 800 | 1000 | 800 | 800 | 1200 |
| Number | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Stroke | mm | 200 | 200 | 160 | 200 | 200 | 200 | 200 | 200 | 250 | 200 | |
| Overall dimensions | L-R | mm | 5120 | 5200 | 4400 | 4300 | 4700 | 5250 | 5455 | 5500 | 5600 | 5755 |
| F-B | mm | 3110 | 3900 | 3650 | 2400 | 3200 | 4775 | 3165 | 5000 | 3175 | 3275 | |
| Height above floor | mm | 7230 | 7500 | 7200 | 7000 | 7100 | 7800 | 7850 | 7850 | 7620 | 8010 | |
| Air pressure | MPa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| Main motor power | KW | 45 | 45 | 45 | 45 | 45 | 55 | 55 | 55 | 75 | 75 | |
| Total weight | T | 110 | 130 | 68 | 80 | 90 | 100 | 120 | 165 | 135 | 150 | |
